沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-EngineProtecting CoverEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
625 次

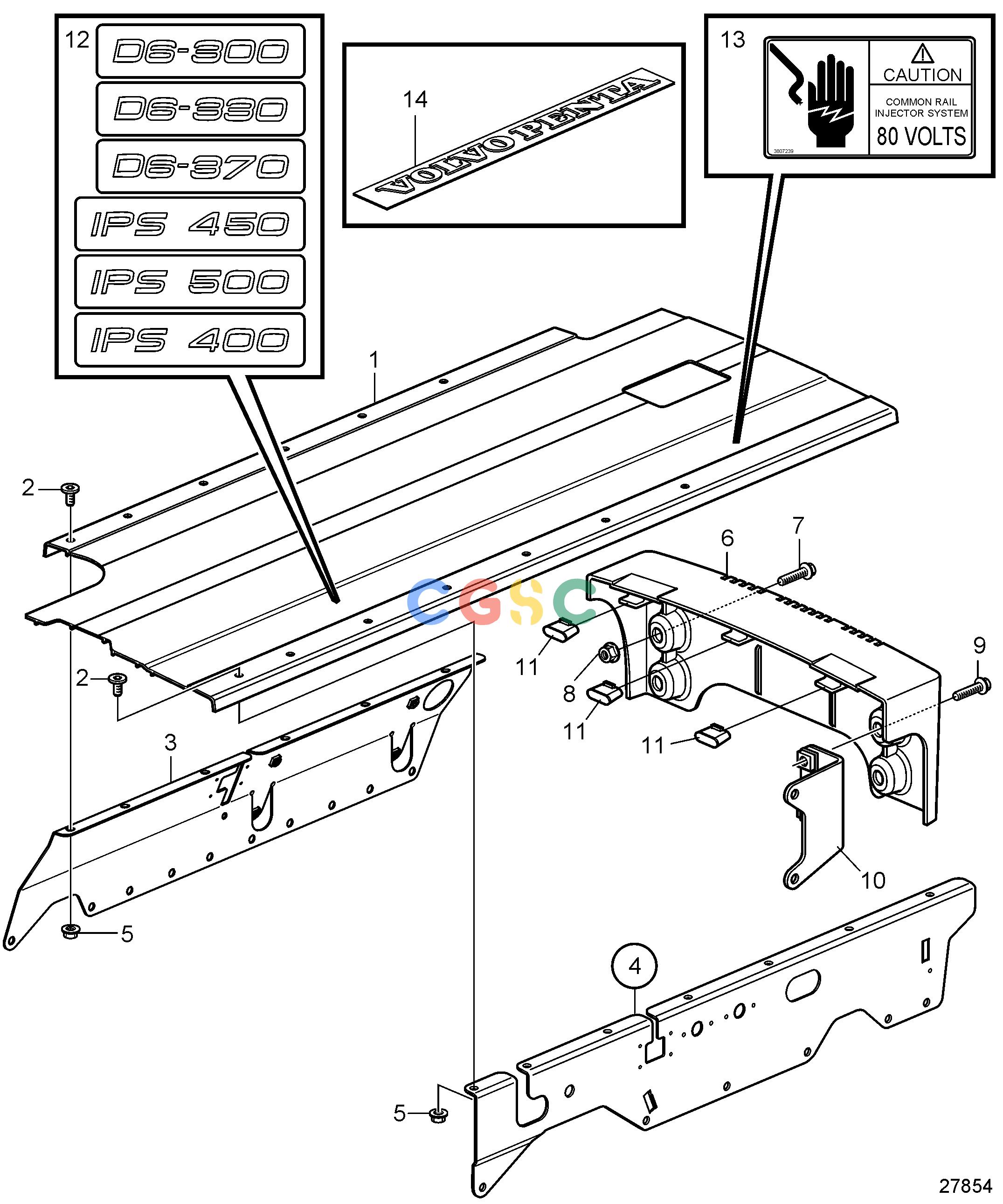

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21522292
|
[1] |
Cover
|
|
| 2. |
971319
|
[13] |
Six point socket scr
|
|
| 3. |
22382554
|
[1] |
Support
|
|
| 4. |
21956262
|
[1] |
Support
|
|
| 5. |
|
|
|
|
| 6. |
3588528
|
[1] |
Protecting cover
|
|
| 7. |
946173
|
[4] |
Flange screw
|
|
| 8. |
945408
|
[2] |
Flange nut
|
|
| 9. |
946671
|
[2] |
Flange screw
|
|
| 10. |
3586068
|
[1] |
Bracket
|
|
| 11. |
3584091
|
[3] |
Support
|
|
| 12. |
|
|
|
IPS 500
|
| 13. |
3807239
|
[1] |
Decal
|
|
| 14. |
21311345
|
[1] |
Decal
|
|
