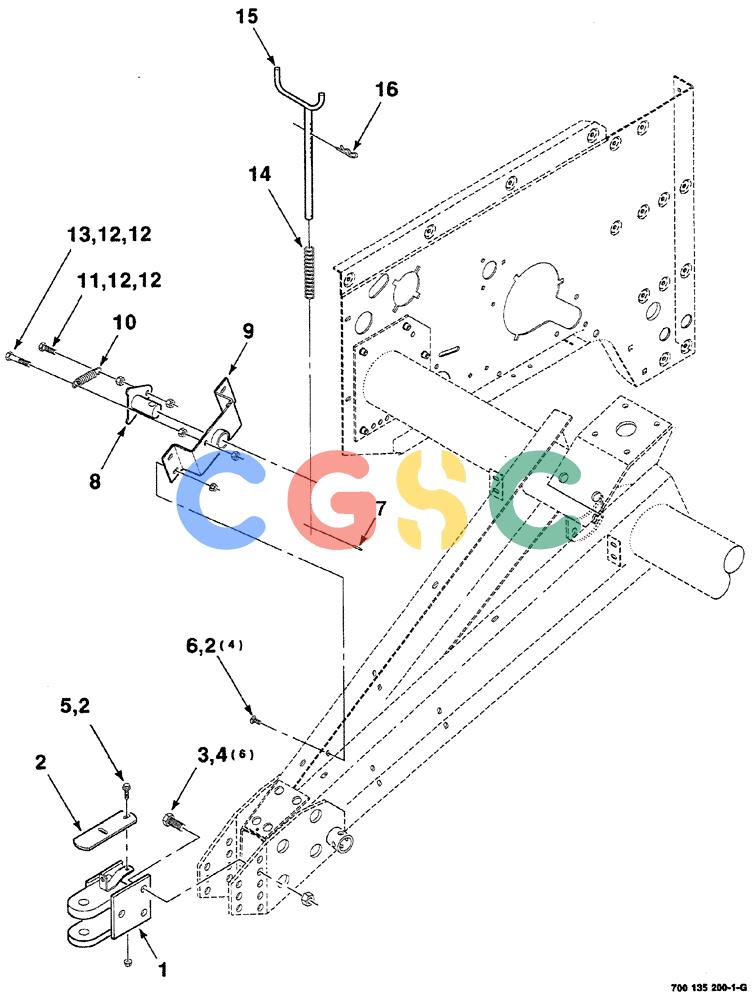

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (07-004) - HITCH AND TONGUE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
912 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700147507
|
[1] |
TRAILER HITCH
|
HFI
WA
|
| 2. |
700132315
|
[6] |
PLATE
|
HFI
|
| 3. |
413-1228
|
[6] |
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 88725
|
| 4. |
230-41112
|
[6] |
LOCK NUT,3/4"-10, GA
|
CAS
hex top lock, 3/4-10 GR/B Superseded by part number: 280375
|
| 5. |
121-237
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
hex flange, 3/8-16 x 1-1/4 GR. 8 Superseded by part number: 87327172
|
| 6. |
434-616
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 7. |
38-11218
|
[1] |
LOCK PIN,3/16" x 1 1/8", Slotted
|
CAS
3/16" x 1 1/8", Slotted Superseded by part number: 88171
|
| 8. |
700150002
|
[1] |
LEVER
|
HFI
WA
|
| 9. |
700150000
|
[1] |
SUPPORT
|
HFI
WA
|
| 10. |
700717555
|
[1] |
SPRING
|
CAS
extension
|
| 11. |
413-824
|
[1] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
CAS
Superseded by part number: 87689, 72187216
|
| 12. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 13. |
413-840
|
[1] |
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
|
CAS
SCREW hex cap, 1/2-13 x 2-1/2 Superseded by part number: 87972
|
| 14. |
700716448
|
[1] |
SPRING
|
CAS
compression
|
| 15. |
700135760
|
[1] |
ROD
|
HFI
WA
|
| 16. |
062455
|
[1] |
PIN, SPLIT (COTTER)
|
CAS
PIN, COTTER wire hair, .178
|
