| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

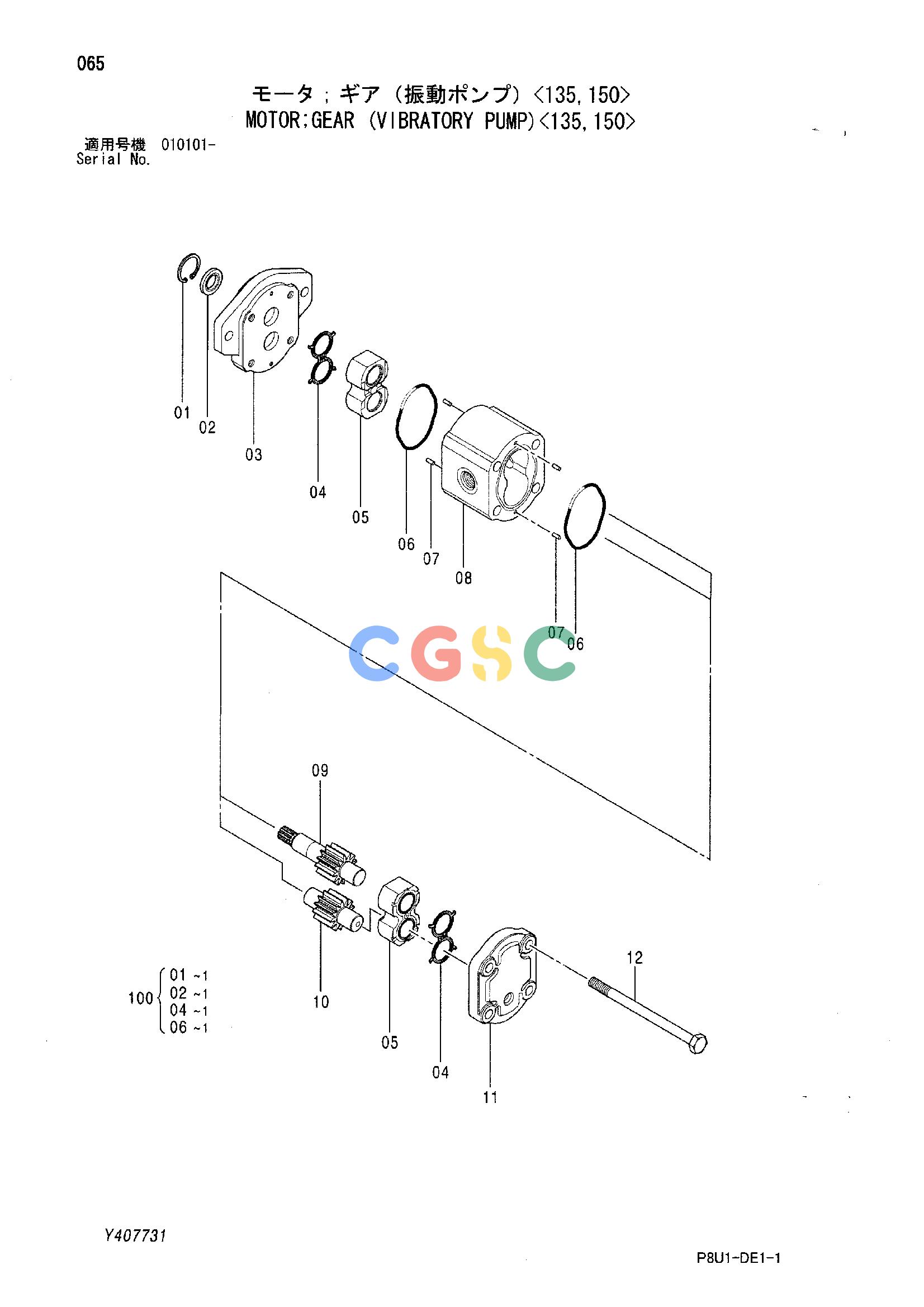

| 426052 | [1] | MOTOR;GEAR | ||
| 01. | 426052-01 | [1] | RING;RETAINING | |
| 02. | 426052-02 | [1] | SEAL | |
| 03. | 426052-03 | [1] | FLANGE | |
| 04. | 426052-04 | [2] | SEAL | |
| 05. | 426052-05 | [2] | BLOCK | |
| 06. | 426052-06 | [2] | SEAL | |
| 07. | 426052-07 | [4] | PIN;DOWEL | |
| 08. | 426052-08 | [1] | HOUSING | |
| 09. | 426052-09 | [1] | GEAR;DRIVE | |
| 10. | 426052-10 | [1] | GEAR;IDLER | |
| 11. | 426052-11 | [1] | COVER | |
| 12. | 426052-12 | [4] | BOLT | |
| 100. | 426453 | [1] | KIT;SEAL |
