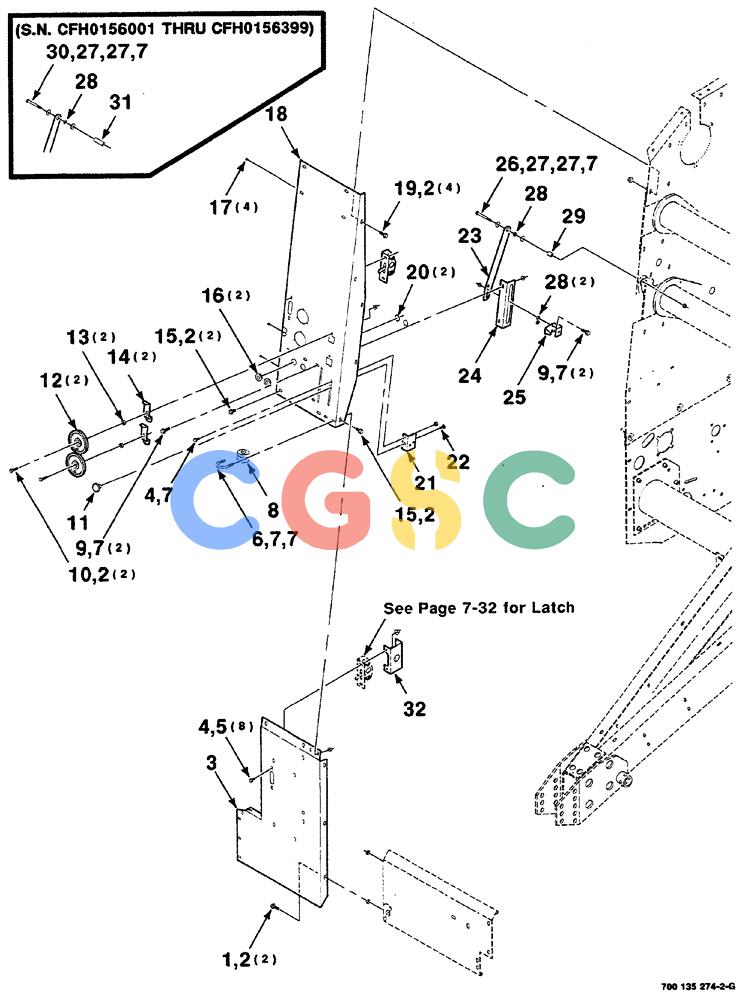

| 1. |
121-237
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
hex flange, 3/8-16 x 1-1/4 GR. 8 Superseded by part number: 87327172
|
| 2. |
232-5316
|
[11] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 3. |
700132933
|
[1] |
SHIELD
|
HFI
lower, right (includes decal)
|
| 4. |
121-115
|
[9] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 5. |
231-5145
|
[8] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 6. |
51200861
|
[1] |
U-BOLT
|
BRR
|
| 7. |
232-5315
|
[9] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
hex flange top lock, 5/16-18 GR/G (S.N. CFH0156001 thru CFH0156399)
|
| 8. |
7745003
|
[1] |
GUIDE
|
L
|
| 9. |
121-108
|
[4] |
BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr
|
CAS
SCREW hex washer head machine, 5/16-18 x 1
|
| 10. |
413-620
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 72187207, 88011
|
| 11. |
700707234
|
[1] |
BUTTON
|
IH
knob
|
| 12. |
700714888
|
[2] |
PULLEY
|
HFI
Superseded by part number: 700725038
|
| 13. |
700116106
|
[2] |
SPACER
|
HFI
|
| 14. |
700135802
|
[2] |
SUPPORT
|
HFI
guide
|
| 15. |
409-7612
|
[3] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 16. |
700107977
|
[2] |
GUIDE
|
CAS
twine
|
| 17. |
700715104
|
[4] |
BUMPER
|
CAS
|
| 18. |
700150806
|
[1] |
SHIELD
|
HFI
upper, right (includes decal)
|
| 19. |
121-226
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 20. |
100-11100
|
[2] |
SNAP RING,#100, Ext
|
CAS
Superseded by part number: 25121
|
| 21. |
700150800
|
[1] |
SUPPORT
|
HFI
switch
|
| 22. |
433-512
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 23. |
700150149
|
[1] |
LINK
|
HFI
|
| 24. |
700132479
|
[1] |
ANGLE
|
HFI
|
| 25. |
700135953
|
[1] |
INDICATOR
|
HFI
|
| 26. |
413-532
|
[1] |
BOLT,Hex, 5/16" - 18 x 2", Gr 5
|
CAS
Superseded by part number: 9636711
|
| 27. |
495-61034
|
[4] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
wide plain, 5/16 (S.N. CFH0156001 thru CFH0156399)
|
| 28. |
700115973
|
[4] |
SPACER
|
CAS
(S.N. CFH0156001 thru CFH0156399)
|
| 29. |
6827794
|
[1] |
SPACER
|
CAS
(S.N. CFH0156400 and later)
|
| 30. |
413-548
|
[1] |
BOLT,Hex, 5/16" - 18 x 3", Gr 5
|
CAS
(S.N. CFH0156001 thru CFH0156399) Superseded by part number: 88731
|
| 31. |
700132481
|
[1] |
SPACER
|
HFI
(S.N. CFH0156001 thru CFH0156399)
|
| 32. |
700132899
|
[1] |
SHIELD
|
HFI
latch
|
