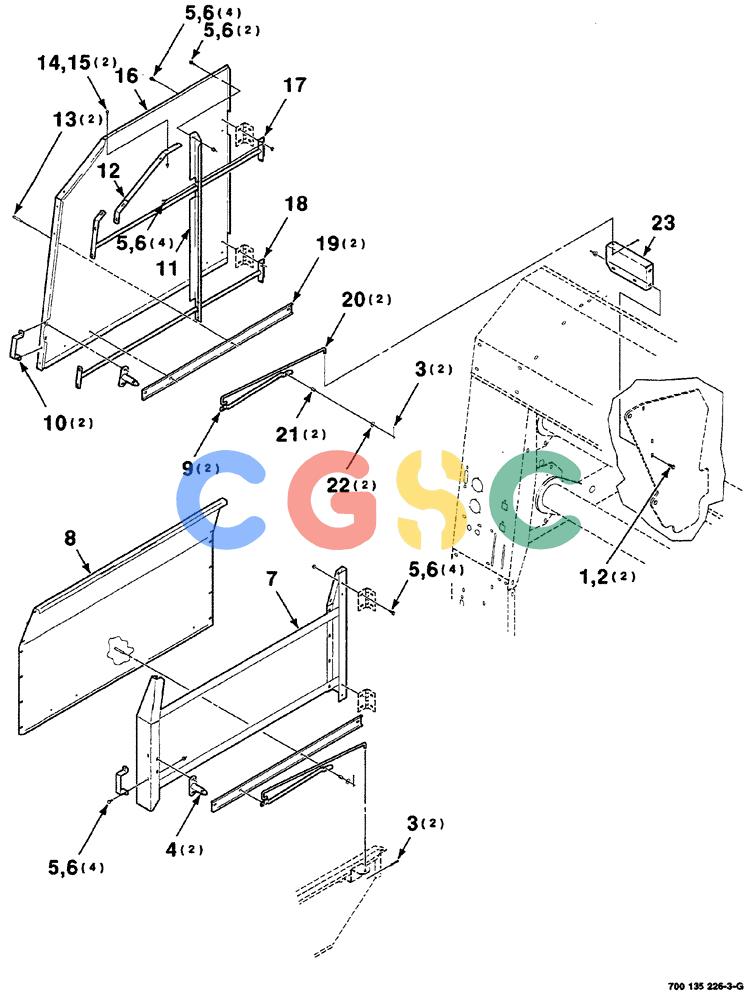

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (07-026) - SHIELD, LATCH AND SUPPORT ASSEMBLIES (RIGHT) (S.N. CFH0156001 THRU CFH0156399) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
619 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
121-226
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 2. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
hex flange top lock, 3/8-16 GR/G Superseded by part number: 86521609
|
| 3. |
432-812
|
[4] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 4. |
700135648
|
[2] |
PIN
|
HFI
WA
|
| 5. |
121-115
|
[18] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 6. |
231-5145
|
[18] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 7. |
700150812
|
[1] |
FRAME
|
HFI
WA right, shield (with reflector decal)
|
| 8. |
700150811
|
[1] |
SHIELD
|
HFI
lower, right (includes decals)
|
| 9. |
700117061
|
[2] |
LATCH
|
CAS
|
| 10. |
700135650
|
[2] |
HANDLE
|
HFI
|
| 11. |
700153667
|
[1] |
CHANNEL
|
HFI
right
|
| 12. |
700153665
|
[1] |
SUPPORT
|
HFI
right
|
| 13. |
439-5532
|
[2] |
HEADED PIN,5/16" x 2"
|
CAS
clevis, 5/16 x 2
|
| 14. |
121-3
|
[2] |
SERRATED BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
|
CAS
|
| 15. |
1703354
|
[2] |
NUT
|
IH
hex flange top lock, 1/4-20 GR/G
|
| 16. |
700150163
|
[1] |
SHIELD
|
HFI
upper, right
|
| 17. |
700150165
|
[1] |
SUPPORT
|
HFI
WA upper, right
|
| 18. |
700150170
|
[1] |
SUPPORT
|
HFI
WA lower, right
|
| 19. |
700132503
|
[2] |
CHANNEL
|
HFI
|
| 20. |
700117067
|
[2] |
SUPPORT
|
CAS
|
| 21. |
754606
|
[2] |
SPRING
|
CAS
compression
|
| 22. |
495-61034
|
[2] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
wide plain, 5/16
|
| 23. |
700132897
|
[1] |
SUPPORT
|
HFI
right
|
