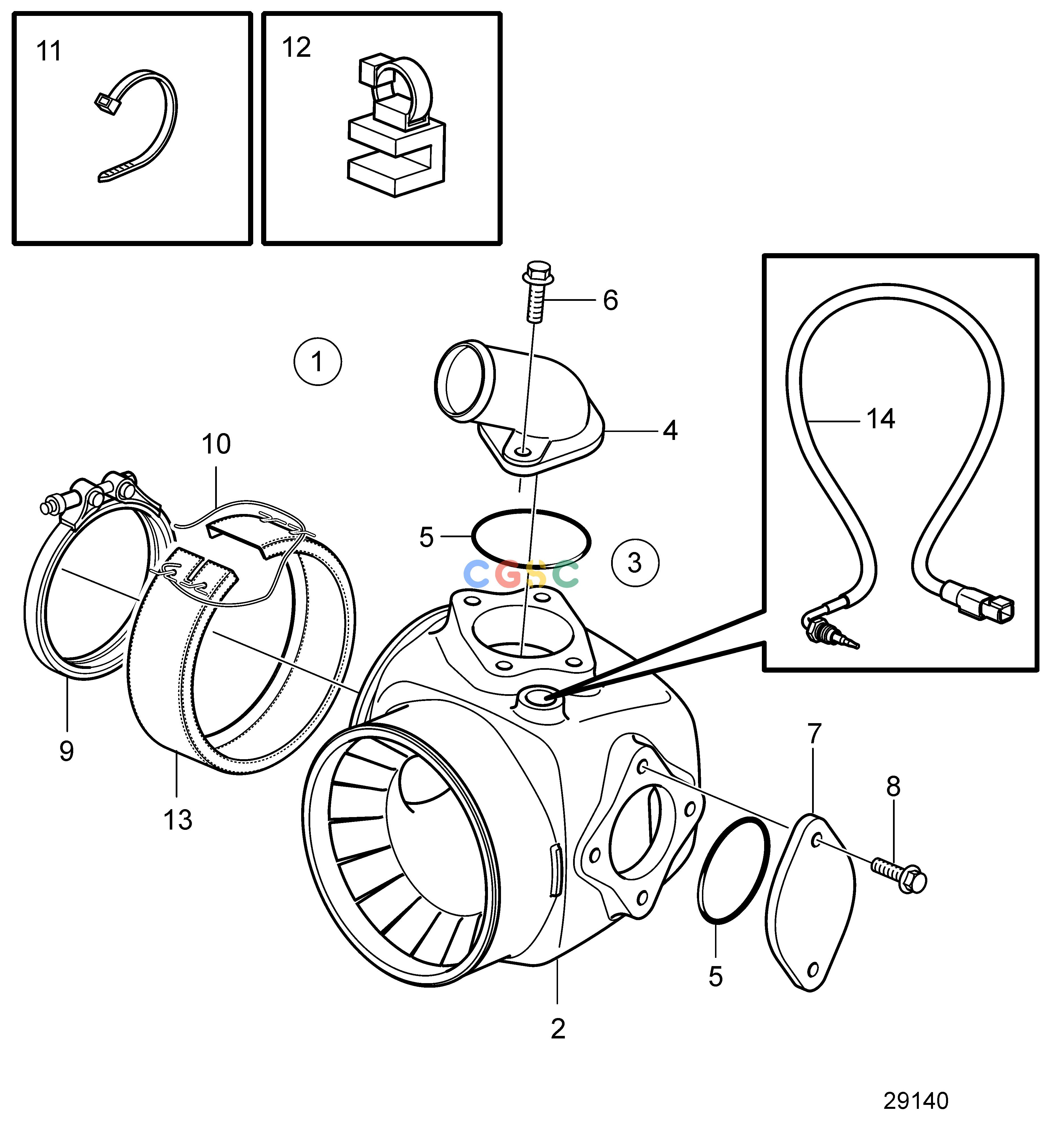

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Intake and Exhaust SystemExhaust Pipe Kit, INBEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
645 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21700014
|
[1] |
Exhaust pipe elbow
|
|
| 3. |
|
|
|
|
| 4. |
21450768
|
[1] |
Connector
|
|
| 5. |
969415
|
[2] |
O-ring
|
|
| 6. |
948356
|
[2] |
Flange screw
|
|
| 7. |
3584006
|
[1] |
Cover
|
|
| 8. |
946934
|
[2] |
Flange screw
|
|
| 9. |
21325767
|
[1] |
V-clamp
|
|
| 10. |
941710
|
[1] |
Locking wire
|
|
| 11. |
948211
|
[1] |
Cable tie
|
|
| 12. |
25375491
|
[1] |
Cable tie
|
|
| 13. |
3817196
|
[1] |
Insulation
|
|
| 14. |
21673187
|
[1] |
Temperature sensor
|
|
