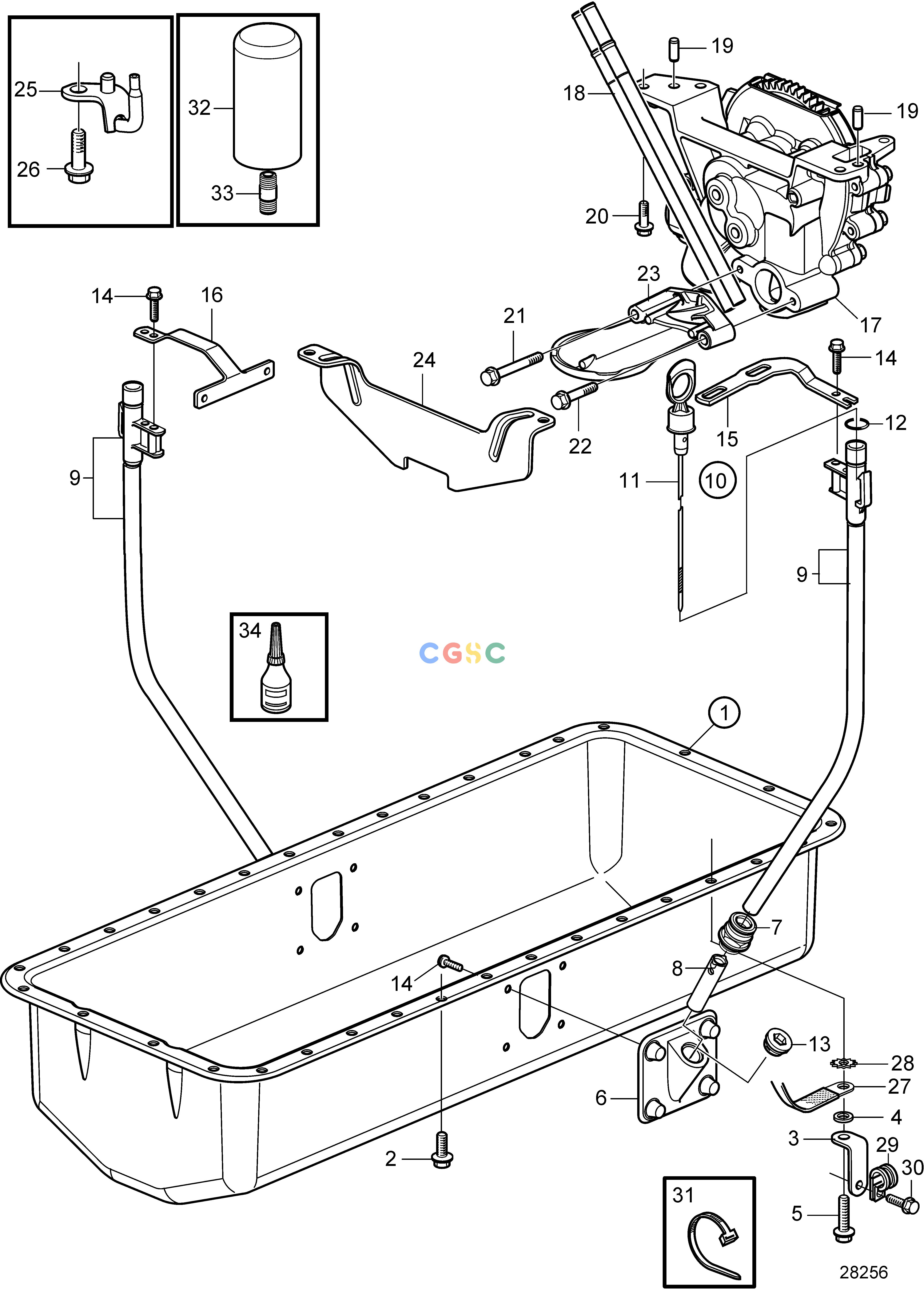

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Lubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
214 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3582792
|
[1] |
Sump
|
|
| 2. |
946440
|
[33] |
Flange screw
|
|
| 3. |
3584088
|
[1] |
Angle bracket
|
|
| 4. |
941744
|
[1] |
Washer
|
|
| 5. |
946173
|
[1] |
Flange screw
|
|
| 6. |
3886957
|
[2] |
Pipe retainer
|
|
| 7. |
3886951
|
[1] |
Nipple
|
|
| 8. |
22456382
|
[1] |
Guide
|
|
| 9. |
3593955
|
[1] |
Pipe
|
|
| 10. |
3594848
|
[1] |
Kit
|
|
| 11. |
21650012
|
[1] |
Oil dipstick
|
|
| 12. |
944124
|
[1] |
O-ring
|
|
| 13. |
3886953
|
[1] |
Plug
|
When dipstick are not used
|
| 14. |
968476
|
[1] |
Flange screw
|
|
| 15. |
21226128
|
[1] |
Bracket
|
|
| 16. |
3584458
|
[1] |
Bracket
|
|
| 17. |
3582667
|
[1] |
Oil pump
|
|
| 18. |
3583465
|
[2] |
Drain pipe
|
|
| 19. |
950564
|
[2] |
Pin
|
|
| 20. |
946173
|
[4] |
Flange screw
|
|
| 21. |
965181
|
[1] |
Flange screw
|
L=70mm
|
| 22. |
973924
|
[1] |
Flange screw
|
L=50mm
|
| 23. |
3583127
|
[1] |
Oil strainer
|
|
| 24. |
3595241
|
[1] |
Baffle plate
|
|
| 25. |
3883144
|
[6] |
Piston cooling jet
|
|
| 26. |
3583804
|
[6] |
Flange screw
|
|
| 27. |
968048
|
[1] |
Chassis ground cable
|
Sump-alternator.
|
| 28. |
942767
|
[1] |
Toothed washer
|
|
| 29. |
961664
|
[1] |
Hose clamp
|
|
| 30. |
945444
|
[1] |
Flange screw
|
|
| 31. |
948211
|
[1] |
Cable tie
|
|
| 32. |
21632901
|
[1] |
Oil filter
|
|
| 32. |
3582732
|
[1] |
Oil filter
|
|
| 33. |
423067
|
[1] |
Nipple
|
|
| 33. |
3583695
|
[1] |
Nipple
|
|
| 34. |
1161771
|
[1] |
Sealing compound
|
|
