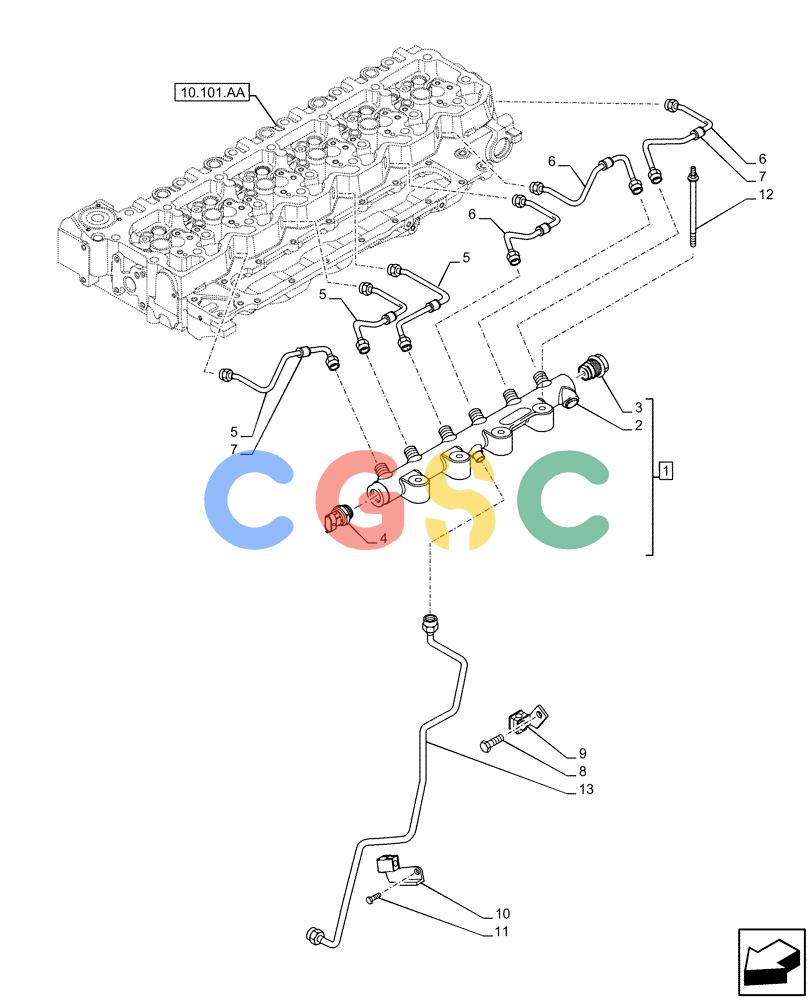

神钢零件查询(F4HFE6131 B003) - ENGINE 5801858658 IPU 280B TIER4 B (1/16-) (10.218.AI) - INJECTOR FUEL LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
432 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2859144 | [1] | MANIFOLD | BHBASSY, Incl 2 - 4 Superseded by part number: |
| 2. | 2854541 | [1] | ACCUMULATOR | TOR Superseded by part number: |
| 3. | 2854543 | [1] | VALVE PRESSURE RELIE | TOR |
| 4. | 2859145 | [1] | SENSOR | TORPressure Superseded by part number: |
| 5. | 2857017 | [3] | PIPE | TORFuel Supply Superseded by part number: |
| 6. | 2857046 | [3] | PIPE | TORFuel Supply Superseded by part number: |
| 7. | 2854548 | [2] | SILENTBLOC | TOR(Isolator) |
| 8. | 4896884 | [1] | BOLT,Flng, M8 x 1.25 x 16mm, Cl 10.9 | TOR |
| 9. | 2852434 | [1] | SPACER | TOR Superseded by part number: 13605711 |
| 11. | 4899020 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
