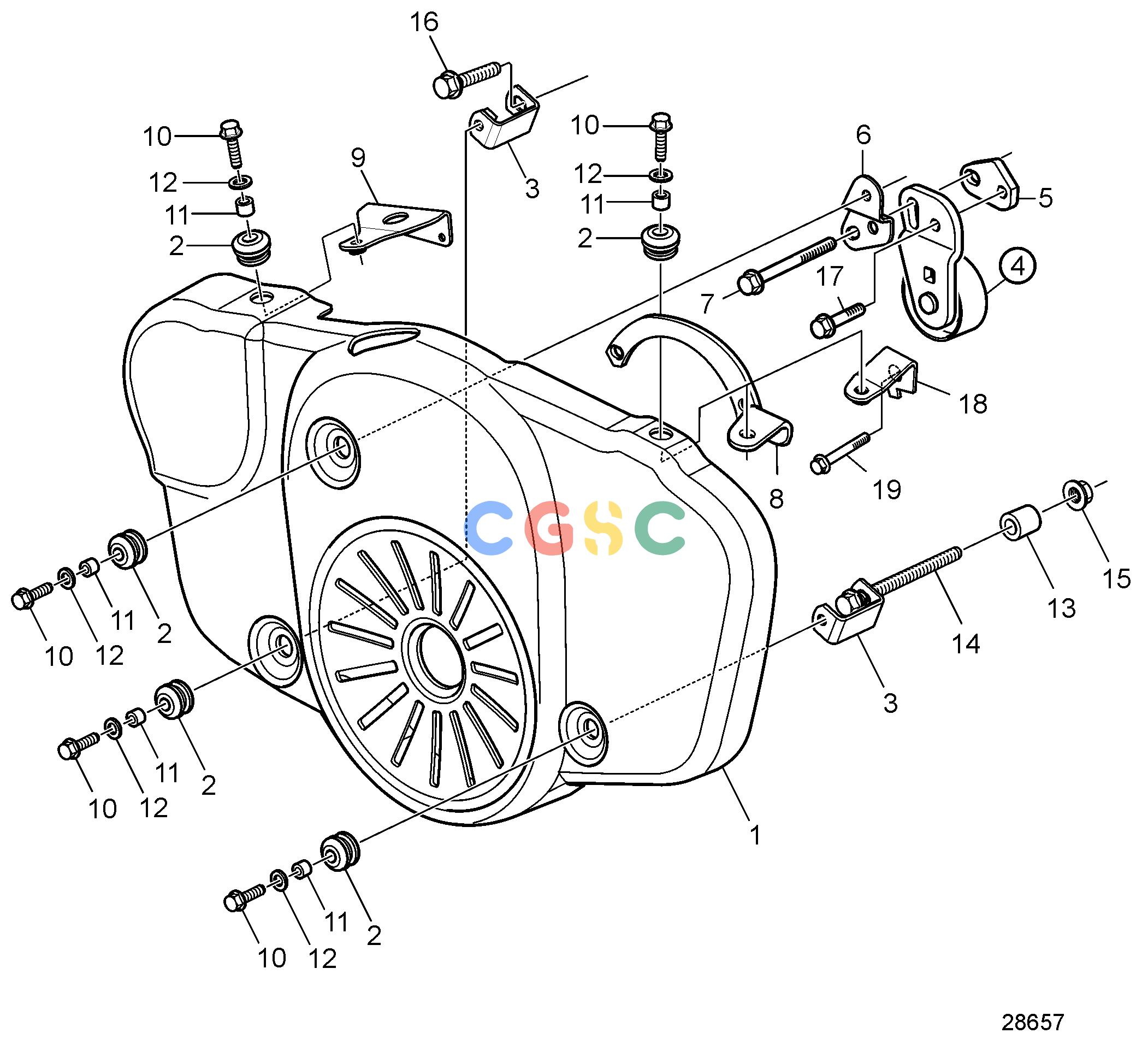

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Miscellaneous EquipmentBelt Guard for Engines with Compressor. Extra EquipmentEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21262733
|
[1] |
Belt protector
|
SOLAS
|
| 2. |
673989
|
[5] |
Grommet
|
|
| 3. |
3588731
|
[2] |
Bracket
|
|
| 4. |
21344508
|
[1] |
Belt tensioner
|
|
| 5. |
965190
|
[1] |
Flange screw
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
21368512
|
[1] |
Bracket
|
|
| 9. |
21195415
|
[1] |
Bracket
|
|
| 10. |
963567
|
[5] |
Hexagon screw
|
|
| 11. |
3830336
|
[5] |
Spacer
|
|
| 12. |
941670
|
[5] |
Washer
|
|
| 13. |
1678297
|
[1] |
Spacer sleeve
|
|
| 14. |
979935
|
[1] |
Flange screw
|
L=160mm
|
| 15. |
971096
|
[1] |
Flange nut
|
|
| 16. |
978447
|
[1] |
Flange screw
|
|
| 17. |
965186
|
[1] |
Flange screw
|
|
| 18. |
22539176
|
[1] |
Bracket
|
|
| 19. |
946173
|
[1] |
Flange screw
|
|
