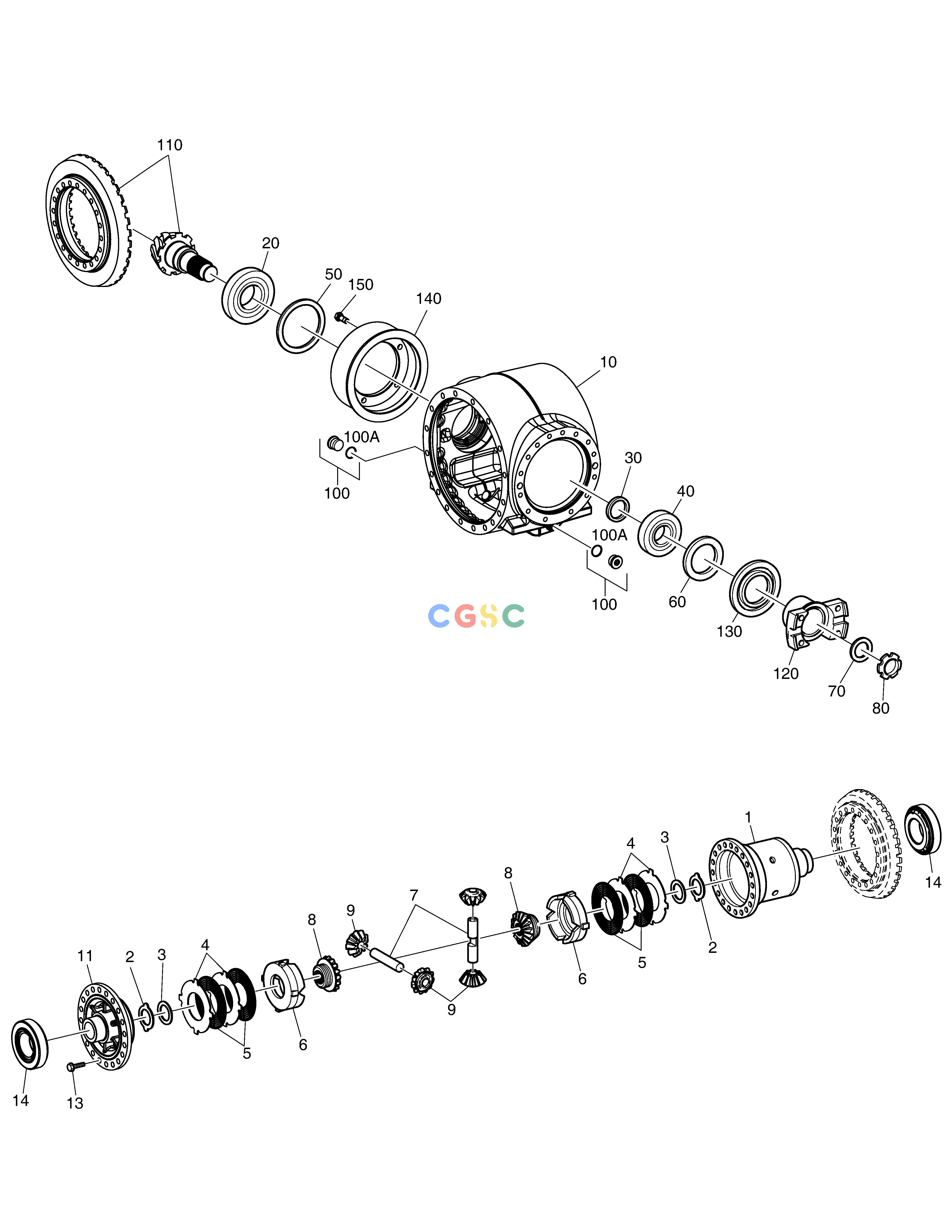

斗山零件查询DIFFERENTIAL CARRIER - REAR AXLE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
158 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
110931-00748
|
[1] |
|
|
| 10. |
110931-00747
|
[1] |
|
|
| 100. |
120705-00003
|
[2] |
SCREW,PLUG
|
|
| 100A. |
1.180-00135
|
[1] |
. O-RING
|
|
| 11. |
110514-00067
|
[1] |
|
|
| 110. |
130407-00044
|
[1] |
|
|
| 120. |
K9000330
|
[1] |
FLANGE;INPUT
|
|
| 13. |
K9000251
|
[20] |
SCREW;LOCKING
|
|
| 130. |
160503-00011
|
[1] |
|
|
| 14. |
140107-00307
|
[2] |
|
|
| 140. |
430215-00537
|
[1] |
|
|
| 150. |
120705-00668
|
[6] |
|
|
| 2. |
K9000262
|
[2] |
WASHER;THRUST
|
|
| 20. |
140107-00006
|
[1] |
|
|
| 3. |
K9000261
|
[2] |
WASHER;THRUST
|
|
| 30. |
K9000205
|
[1] |
RING;SPACER A=7.30
|
|
| 30. |
K9000206
|
[1] |
RING;SPACER A=7.40
|
|
| 30. |
K9000207
|
[1] |
RING;SPACER A=7.50
|
|
| 30. |
K9000208
|
[1] |
RING;SPACER A=7.60
|
|
| 30. |
K9000209
|
[1] |
RING;SPACER A=7.70
|
|
| 30. |
K9000210
|
[1] |
RING;SPACER A=7.90
|
|
| 30. |
K9000211
|
[1] |
RING;SPACER A=8.00
|
|
| 30. |
K9000212
|
[1] |
RING;SPACER A=8.10
|
|
| 30. |
K9000213
|
[1] |
RING;SPACER A=8.20
|
|
| 30. |
K9000214
|
[1] |
RING;SPACER A=8.30
|
|
| 30. |
K9000215
|
[1] |
RING;SPACER A=8.40
|
|
| 30. |
K9000216
|
[1] |
RING;SPACER A=8.50
|
|
| 30. |
K9000217
|
[1] |
RING;SPACER A=8.60
|
|
| 30. |
K9000218
|
[1] |
RING;SPACER A=8.70
|
|
| 30. |
K9000219
|
[1] |
RING;SPACER A=8.80
|
|
| 30. |
K9000220
|
[1] |
RING;SPACER A=8.90
|
|
| 30. |
K9000221
|
[1] |
RING;SPACER A=9.00
|
|
| 30. |
K9000222
|
[1] |
RING;SPACER A=7.80
|
|
| 30. |
K9000223
|
[1] |
RING;SPACER A=7.82
|
|
| 30. |
K9000224
|
[1] |
RING;SPACER A=7.84
|
|
| 30. |
K9000225
|
[1] |
RING;SPACER A=7.86
|
|
| 30. |
K9000226
|
[1] |
RING;SPACER A=7.88
|
|
| 30. |
K9000227
|
[1] |
RING;SPACER A=7.92
|
|
| 30. |
K9000228
|
[1] |
RING;SPACER A=7.94
|
|
| 30. |
K9000229
|
[1] |
RING;SPACER A=7.96
|
|
| 30. |
K9000230
|
[1] |
RING;SPACER A=7.98
|
|
| 30. |
K9000231
|
[1] |
RING;SPACER A=8.02
|
|
| 30. |
K9000232
|
[1] |
RING;SPACER A=8.04
|
|
| 30. |
K9000233
|
[1] |
RING;SPACER A=8.06
|
|
| 30. |
K9000234
|
[1] |
RING;SPACER A=8.08
|
|
| 30. |
K9000235
|
[1] |
RING;SPACER A=8.12
|
|
| 30. |
K9000236
|
[1] |
RING;SPACER A=8.14
|
|
| 30. |
K9000237
|
[1] |
RING;SPACER A=8.16
|
|
| 30. |
K9000238
|
[1] |
RING;SPACER A=8.18
|
|
| 4. |
130107-00028
|
[4] |
|
|
| 4. |
K9000264
|
[4] |
DISC;O.CLUTCH S=3.10
|
|
| 4. |
K9000265
|
[4] |
DISC;O.CLUTCH S=2.70
|
|
| 4. |
K9000266
|
[4] |
DISC;O.CLUTCH S=3.00
|
|
| 4. |
K9000267
|
[4] |
DISC;O.CLUTCH S=2.90
|
|
| 4. |
K9000268
|
[4] |
DISC;O.CLUTCH S=3.20
|
|
| 4. |
K9000270
|
[4] |
DISC;O.CLUTCH S=3.30
|
|
| 40. |
140107-00008
|
[1] |
|
|
| 5. |
K9000258
|
[4] |
DISC;I.CLUTCH
|
|
| 50. |
K9000308
|
[1] |
WASHER S=0.7
|
|
| 50. |
K9000309
|
[1] |
WASHER S=0.8
|
|
| 50. |
K9000310
|
[1] |
WASHER S=0.9
|
|
| 50. |
K9000311
|
[1] |
WASHER S=1.0
|
|
| 50. |
K9000312
|
[1] |
WASHER S=1.1
|
|
| 50. |
K9000313
|
[1] |
WASHER S=1.2
|
|
| 50. |
K9000314
|
[1] |
WASHER S=1.3
|
|
| 50. |
K9000315
|
[1] |
WASHER S=1.4
|
|
| 50. |
K9000316
|
[1] |
WASHER S=1.5
|
|
| 50. |
K9000629
|
[1] |
WASHER S=0.2
|
|
| 50. |
K9000630
|
[1] |
WASHER S=0.1
|
|
| 6. |
401003-00337
|
[2] |
|
|
| 60. |
K9000245
|
[1] |
SEAL;SHAFT
|
|
| 7. |
K9000260
|
[2] |
AXLE;DIFFERENTIAL
|
|
| 70. |
K9000204
|
[1] |
WASHER A=5.00
|
|
| 8. |
K9000326
|
[2] |
GEAR;AXLE BEVEL
|
|
| 80. |
K9000250
|
[1] |
NUT;SLOTTED
|
|
| 9. |
K9000259
|
[4] |
GEAR;BEVEL
|
|
