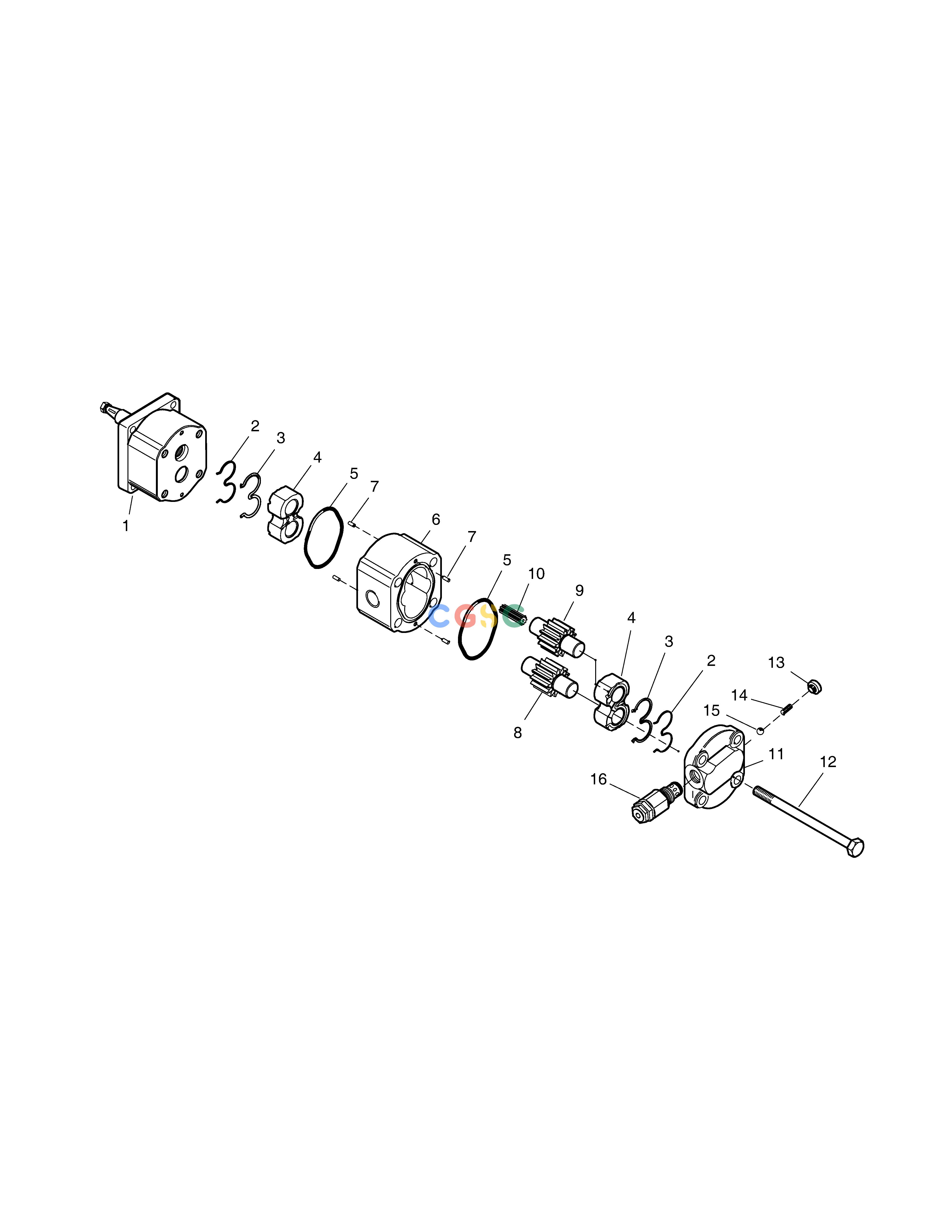

斗山零件查询FAN MOTOR MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
226 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
2.180-00710
|
[1] |
SEAL KIT
|
|
| -. |
401-00054
|
[1] |
MOTOR;FAN DRIVE
|
|
| 1. |
NA00056
|
[1] |
|
|
| 10. |
NA00391
|
[1] |
COUPLING
|
|
| 11. |
NA00392
|
[1] |
COUVERCLE
|
|
| 12. |
NA00114
|
[4] |
BOULON A 6 PANS
|
|
| 13. |
NA00843
|
[1] |
PLUG
|
|
| 14. |
NA01182
|
[1] |
. SPRING
|
|
| 15. |
NA00018
|
[1] |
BALL
|
|
| 16. |
5030256-120BAR
|
[1] |
VALVE;RELIEF
|
|
| 2. |
2.180-00964
|
[2] |
|
|
| 3. |
2.180-00679
|
[2] |
|
|
| 4. |
NA00054
|
[2] |
|
|
| 5. |
2.180-00273
|
[2] |
|
|
| 5. |
2.180-00272
|
[2] |
|
|
| 6. |
NA00536
|
[1] |
|
|
| 7. |
NA00766
|
[4] |
|
|
| 8. |
NA00491
|
[1] |
|
|
| 9. |
NA00487
|
[1] |
|
|
