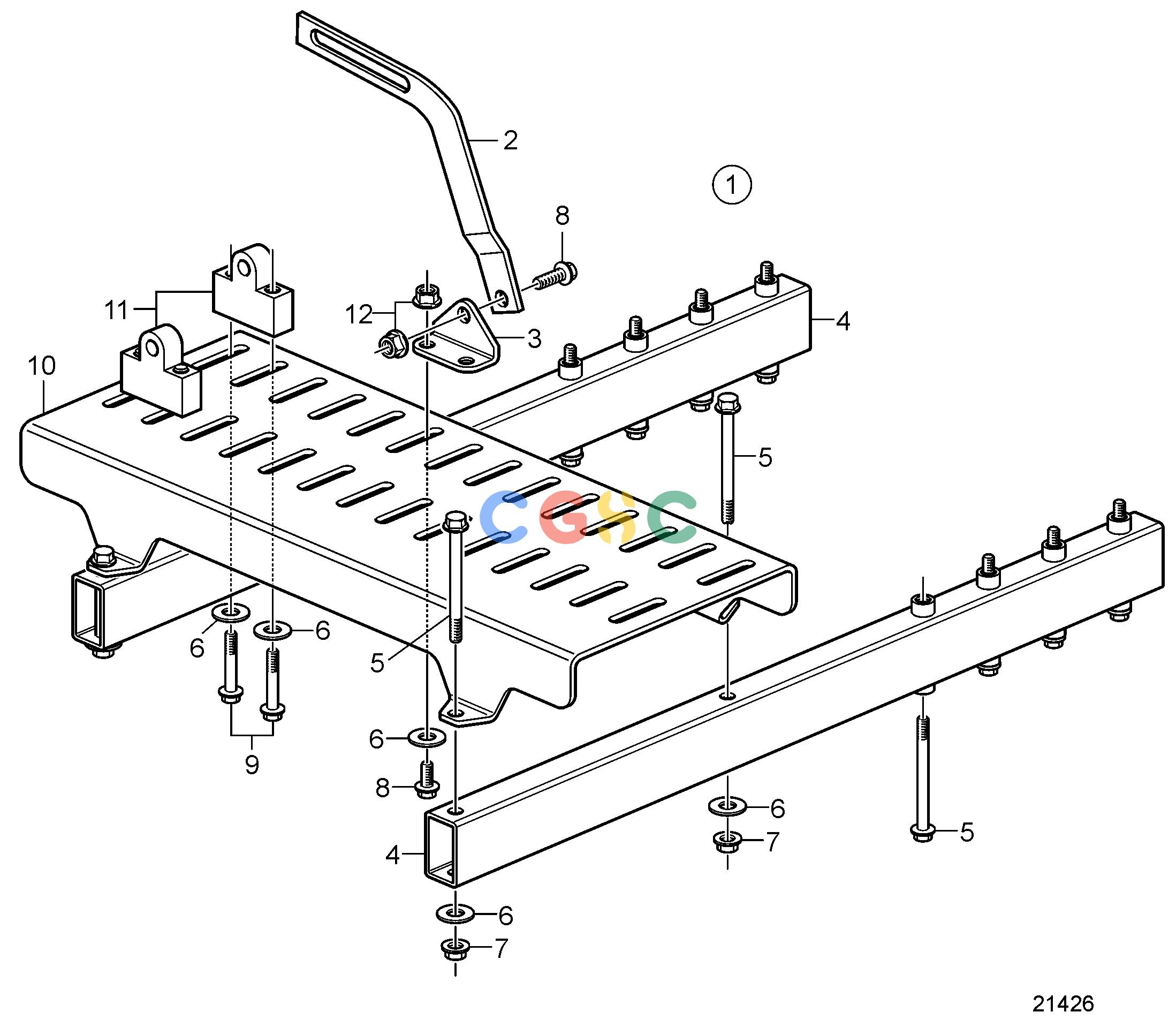

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Miscellaneous EquipmentUniversal BracketEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
752 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584501
|
[1] |
Universal bracket
|
|
| 2. |
845021
|
[2] |
Tensioner
|
|
| 3. |
858177
|
[4] |
Bracket
|
|
| 4. |
3807983
|
[2] |
Bracket
|
|
| 5. |
965182
|
[12] |
Flange screw
|
|
| 6. |
948880
|
[10] |
Washer
|
|
| 7. |
948645
|
[4] |
Flange lock nut
|
|
| 8. |
946173
|
[6] |
Flange screw
|
|
| 9. |
947760
|
[4] |
Flange screw
|
|
| 10. |
3807984
|
[1] |
Bracket
|
|
| 11. |
3808661
|
[2] |
Support
|
|
| 12. |
945408
|
[6] |
Flange nut
|
|
