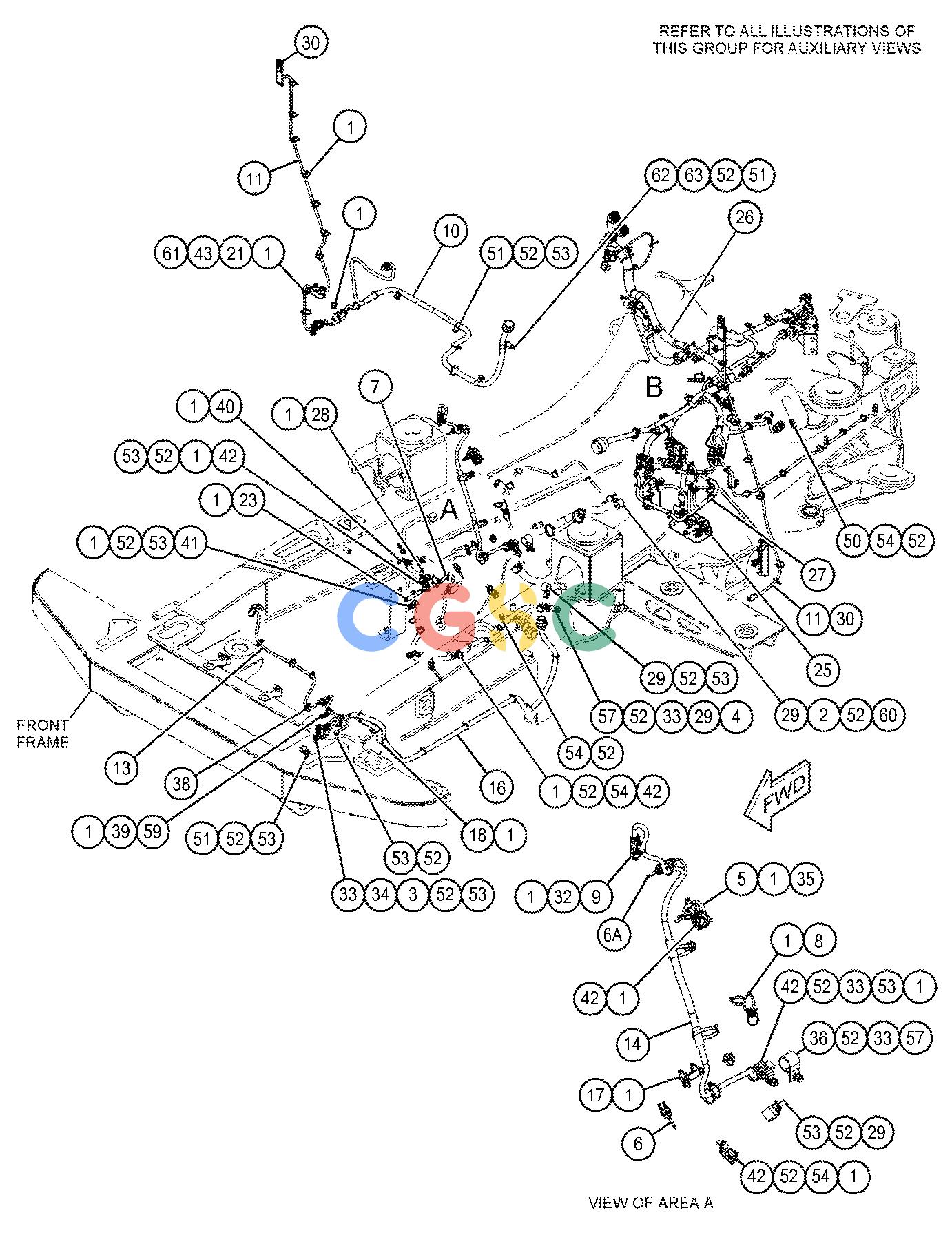

卡特零件查询（725C2） 470-4415: WIRING GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
825 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3S-2093 | [148] | STRAP-CABLE | |
| 2. | 5U-2673 | [1] | SPACER(11X25X40-MM) | |
| 3. | 7K-1181 | [8] | STRAP-CABLE | |
| 4. | 7U-9542 | [1] | PLATE-CLAMPING | |
| 5. | 102-2240Y | [1] | SENSOR GP-TEMPERATURE(3-PIN)(AIR INLET) | |
| 6. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(BRAKE COOLING) | |
| 6A. | 234-5013Y | [1] | SENSOR GP-TEMPERATURE(TRANSMISSION OIL) | |
| 7. | 260-5864Y | [1] | SWITCH GP-TOGGLE(FUEL PRIMING) | |
| 8. | 290-5562 | [1] | MOUNT(DUAL SWIVEL) | |
| 9. | 320-3063 | [1] | SENSOR GP-PRESSURE(AIR RESTRICTION) | |
| 10. | 367-1758Y | [1] | HARNESS AS-FRONT(FENDER, RH) | |
| 11. | 387-6750 | [2] | LAMP GP-MARKER | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 12. | 393-0321 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 13. | 395-1122 | [1] | HARNESS AS-FRONT(ATAAC) | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8730 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| 14. | 396-1133Y | [1] | HARNESS AS-FRONT(AIR CLEANER) | |
| 15. | 421-5545 | [1] | PLATE | |
| 16. | 424-5545Y | [1] | HARNESS AS-CONTROL(TANK) | |
| 17. | 431-3985 | [1] | PLATE | |
| 18. | 433-2632 | [1] | PLATE AS | |
| | 7T-1099 | [2] | LINK | |
| 19. | 439-6532 | [1] | PLATE AS | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 20. | 446-0177 | [1] | PLATE | |
| 21. | 446-0197 | [1] | PLATE AS | |
| | 8T-3612M | [1] | NUT-WELD(M8X1.25-THD) | |
| 22. | 447-2774 | [1] | PLATE AS | |
| | 7T-1099 | [3] | LINK | |
| | 8T-3490M | [1] | NUT-WELD(M10X1.5-THD) | |
| 23. | 448-8740 | [1] | PLATE | |
| 24. | 460-9488Y | [1] | WIRING GP-SENSOR(RADIATOR) | |
| 25. | 465-2465Y | [1] | WIRING GP-FRONT(AXLE) | |
| 26. | 468-7216Y | [1] | HARNESS AS-TRANSMISSION | |
| 27. | 470-4428Y | [1] | WIRING GP-FRONT(VALVE) | |
| 28. | 132-5789 | [1] | CLIP(LADDER) | |
| 29. | 149-7738 | [11] | CLIP(LOOP) | |
| 30. | 162-2165M | [4] | BOLT-SOCKET HEAD(M4X0.7X16-MM) | |
| 31. | 173-2087 | [1] | SPACER(11X20X28-MM THK) | |
| 32. | 228-7100 | [1] | SEAL-O-RING | |
| 33. | 344-5675M | [5] | NUT(M10X1.5-THD) | |
| 34. | 352-3968 | [1] | CLIP(LADDER)(LADDER) | |
| 35. | 3K-0360 | [1] | SEAL-O-RING | |
| 36. | 4D-7388 | [2] | CLIP(LOOP)(LOOP) | |
| 37. | 4D-7735 | [1] | CLIP(SLOT) | |
| 38. | 4H-2558 | [1] | GROMMET | |
| 39. | 4P-7428 | [1] | CLIP(LADDER) | |
| 40. | 4P-7429 | [1] | CLIP(LADDER) | |
| 41. | 4P-7581 | [4] | CLIP(LADDER) | |
| 42. | 4P-8134 | [11] | CLIP(LADDER) | |
| 43. | 5P-4116 | [1] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 45. | 6D-4244 | [4] | CLIP(LOOP)(LOOP) | |
| 46. | 6D-4246 | [1] | CLIP(LOOP) | |
| 47. | 6H-4005 | [1] | GROMMET | |
| 48. | 6V-1889 | [2] | CLIP(LOOP) | |
| 49. | 7C-4354 | [1] | CLIP(SLOT) | |
| 50. | 8M-2770 | [2] | CLIP(LOOP) | |
| 51. | 8M-2773 | [5] | CLIP(LOOP) | |
| 52. | 8T-4121 | [49] | WASHER-HARD(11X21X2.5-MM THK) | |
| 53. | 8T-4136M | [28] | BOLT(M10X1.5X25-MM) | |
| 54. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| 55. | 8T-4185M | [1] | BOLT(M10X1.5X50-MM) | |
| 56. | 8T-4191M | [1] | BOLT(M10X1.5X16-MM) | |
| 57. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 59. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 60. | 8T-6466M | [1] | BOLT(M10X1.5X60-MM) | |
| 61. | 8T-7547M | [1] | BOLT(M8X1.25X30-MM) | |
| 62. | 8T-4182M | [1] | BOLT(M10X1.5X45-MM) | |
| 63. | 133-6934 | [1] | SPACER(11X20X25-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
