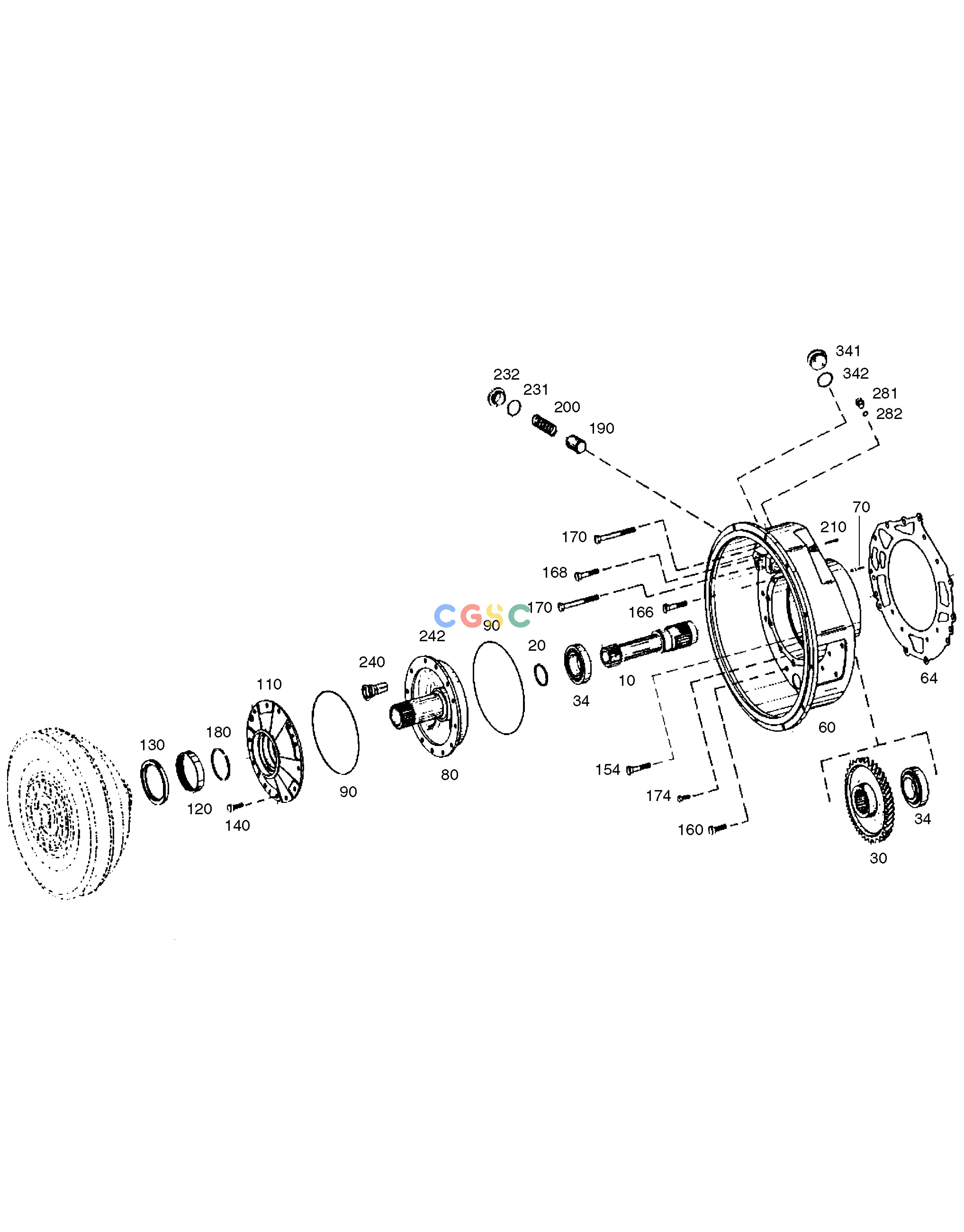

斗山零件查询INPUT - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
877 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000126
|
[1] |
INPUT
|
|
| 10. |
2.405-00225
|
[1] |
SHAFT;INPUT
|
|
| 110. |
2.430-00402
|
[1] |
COVER;BEARING
|
|
| 120. |
2.425-00050
|
[1] |
SLEEVE;NEEDLE
|
|
| 130. |
2.180-00888
|
[1] |
SEAL;SHAFT
|
|
| 140. |
2.120-00584
|
[12] |
SCREW
|
|
| 154. |
2.120-00585
|
[2] |
SCREW
|
|
| 160. |
2.120-00586
|
[10] |
SCREW
|
|
| 166. |
2.120-00587
|
[1] |
SCREW
|
|
| 168. |
2.120-00588
|
[1] |
SCREW
|
|
| 170. |
2.120-00589
|
[1] |
SCREW
|
|
| 174. |
2.120-00590
|
[4] |
SCREW
|
|
| 180. |
2.115-00244
|
[1] |
RING;PISTON
|
|
| 190. |
1.409-00045
|
[1] |
PISTON
|
|
| 20. |
2.115-00243
|
[1] |
RING;PISTON
|
|
| 200. |
1.131-00086
|
[1] |
SPRING;COMPR.
|
|
| 210. |
1.123-00063
|
[1] |
PIN;SLOT
|
|
| 231. |
2.180-00344
|
[1] |
O-RING
|
|
| 232. |
1.181-00123
|
[1] |
PLUG
|
|
| 240. |
K9000009
|
[1] |
VALVE
|
|
| 242. |
K9000031
|
[1] |
PIN;SLOT
|
|
| 281. |
1.120-00165
|
[1] |
PLUG
|
|
| 282. |
180-00408
|
[1] |
O-RING
|
|
| 30. |
2.403-00323
|
[1] |
GEAR;HELICAL
|
|
| 34. |
K9000089
|
[2] |
BEARING;ROLLER
|
|
| 341. |
1.120-00181
|
[2] |
PLUG;SCREW
|
|
| 342. |
2.180-00345
|
[2] |
O-RING
|
|
| 60. |
K9000155
|
[1] |
BELL;CONVERTER
|
|
| 64. |
K9000153
|
[1] |
GASKET
|
|
| 70. |
K9000038
|
[3] |
PLUG
|
|
| 80. |
K9000154
|
[1] |
FLANGE;OIL FEED
|
|
| 90. |
K9000042
|
[2] |
O-RING
|
|
