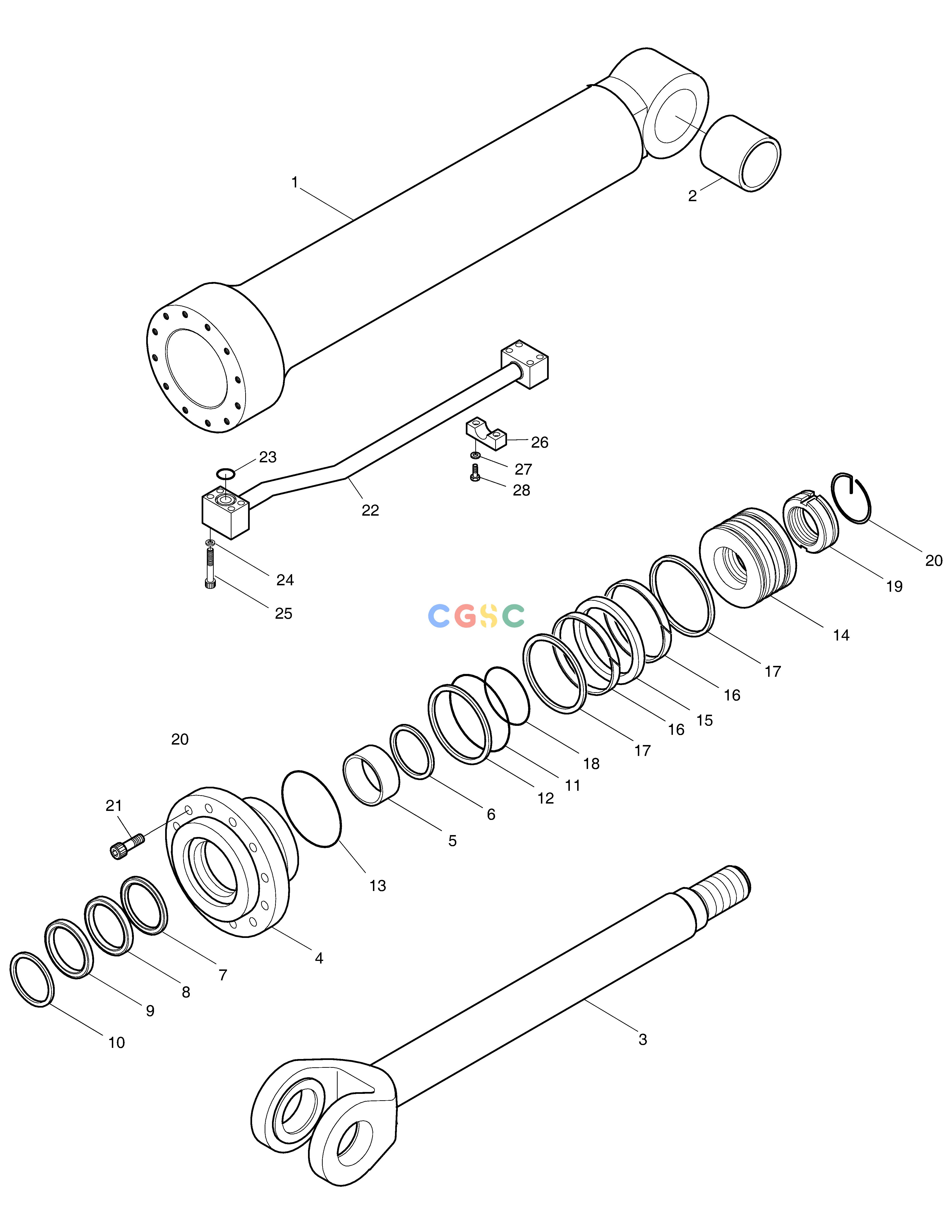

斗山零件查询LIFT CYLINDER MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
477 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
440-00136BKT
|
[1] |
SEAL KIT
|
|
| -. |
440-00136B
|
[2] |
CYLINDER;LIFT
|
|
| 1. |
1.441-00056
|
[1] |
|
|
| 10. |
115-00092
|
[1] |
RING;RETAINING
|
|
| 11. |
S8001651
|
[1] |
|
|
| 12. |
1.180-00249
|
[1] |
|
|
| 13. |
S8011751
|
[1] |
|
|
| 14. |
1.409-00044
|
[1] |
|
|
| 15. |
1.180-00345
|
[1] |
|
|
| 16. |
1.180-00399
|
[2] |
|
|
| 17. |
1.180-00328
|
[2] |
|
|
| 18. |
S8010951
|
[1] |
O-RING
|
|
| 19. |
1.121-00060
|
[1] |
|
|
| 2. |
110-00094
|
[1] |
BUSH
|
|
| 20. |
1.115-00242
|
[1] |
|
|
| 21. |
S2221571
|
[12] |
BOLT;SOCKET
|
|
| 22. |
1.140-00046
|
[1] |
|
|
| 23. |
S8000341
|
[1] |
O-RING
|
|
| 24. |
S5100603
|
[4] |
WASHER
|
|
| 25. |
S2212861
|
[4] |
BOLT;SOCKET
|
|
| 26. |
1.124-00150
|
[1] |
CLAMP;PIPE
|
|
| 27. |
S5100603
|
[2] |
WASHER
|
|
| 28. |
S0558761
|
[2] |
BOLT;HEX
|
|
| 3. |
1.428-00050
|
[1] |
|
|
| 4. |
1.430-00101
|
[1] |
|
|
| 5. |
1.110-00081
|
[1] |
|
|
| 6. |
115-00051
|
[1] |
RING;RETAINING
|
|
| 7. |
180-00302
|
[1] |
SEAL;BUFFER
|
|
| 8. |
115-00097
|
[1] |
PACKING;U
|
|
| 9. |
115-00099
|
[1] |
WIPER;DUST
|
|
