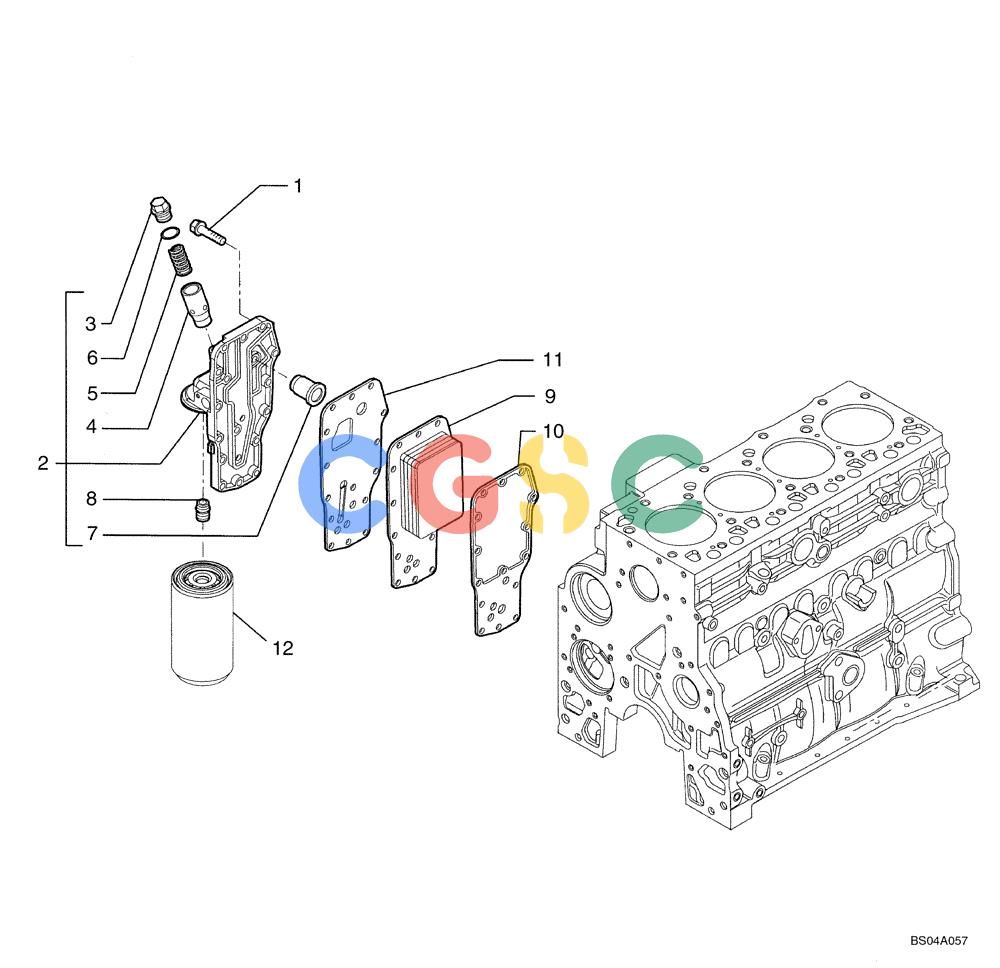

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (02-34) - OIL FILTER AND COOLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
951 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899019 | [15] | SCREW,Hex Flg, M8 x 1.25 x 35 | TOR |
| 2. | 4892774 | [1] | FILTER HEAD | TORHead, Incl. Ref 3 - 7 Superseded by part number: 504096409, 4899035, 4896410, 4896404, 4899643, 4895045 |
| 3. | 4895043 | [1] | PLUG | TOR Superseded by part number: 504096409 |
| 4. | 4896404 | [1] | PLUNGER | TORPlunger, Pressure Regulator |
| 5. | 4895045 | [1] | SPRING | TOR |
| 6. | 4899035 | [1] | O-RING,2.62mm Thk x 18.39mm ID | TOR |
| 7. | J936365 | [1] | PRESSURE RELIEF VALVE | CASPressure Relief Superseded by part number: 4896410 |
| 8. | 4893391 | [1] | ADAPTER,M24 x 2 x M27 x 2 | TORPlug, Oil Filter Superseded by part number: J936365 |
| 9. | 4896406 | [1] | HEAT EXCHANGER | TORCooler Core Superseded by part number: 5801750729 |
| 10. | 2830559 | [1] | GASKET,0.5mm Thk | TORCore |
| 11. | 4896409 | [1] | GASKET,1.55mm Thk | TORHead |
