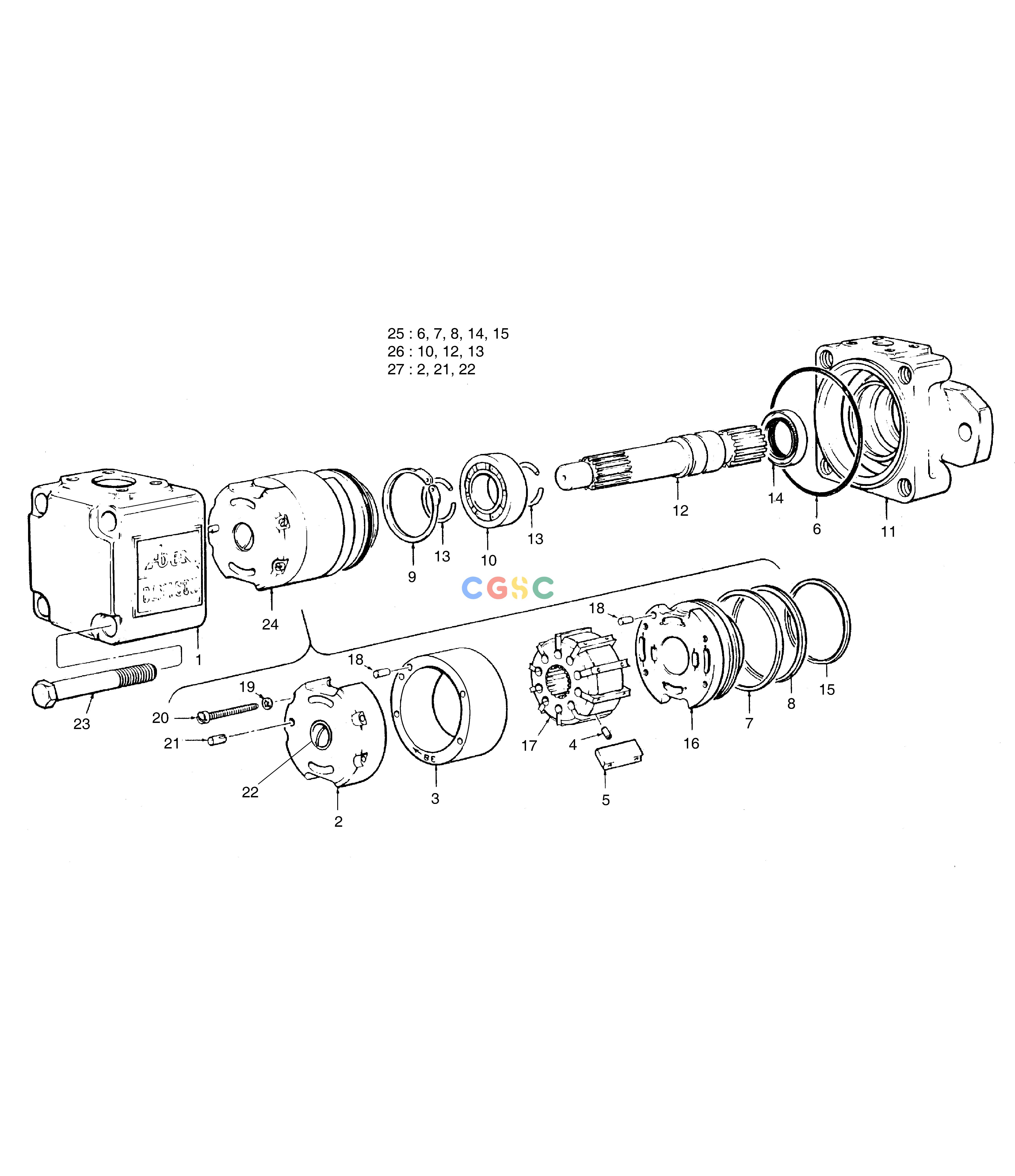

斗山零件查询MAIN PUMP MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
455 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
401-00156
|
[1] |
MAIN PUMP
|
|
| 1. |
NA00537
|
[1] |
|
|
| 10. |
NA00053
|
[1] |
BEARING;BALL
|
|
| 11. |
NA00315
|
[1] |
|
|
| 12. |
NA01124
|
[1] |
SHAFT
|
|
| 13. |
NA00974
|
[2] |
|
|
| 14. |
NA01099
|
[1] |
SEAL;SHAFT
|
|
| 15. |
NA01101
|
[1] |
|
|
| 16. |
NA00902
|
[1] |
|
|
| 17. |
NA01024
|
[1] |
|
|
| 18. |
NA00766
|
[2] |
|
|
| 19. |
NA01323
|
[2] |
|
|
| 2. |
NA00908
|
[1] |
|
|
| 20. |
NA01040
|
[2] |
VIS
|
|
| 21. |
NA00766
|
[1] |
|
|
| 22. |
NA00258
|
[1] |
BUSH
|
|
| 23. |
NA01040
|
[4] |
VIS
|
|
| 24. |
S24.64432
|
[1] |
P1 CARTRIDGE KIT
|
|
| 25. |
180-00228
|
[1] |
SEAL KIT
|
|
| 26. |
405-00030
|
[1] |
SHAFT & BEARING KIT
|
|
| 27. |
S24.63709
|
[1] |
PORT PLATE& BUSH KIT
|
|
| 3. |
NA00302
|
[1] |
|
|
| 4. |
NA00790
|
[10] |
|
|
| 5. |
NA01312
|
[10] |
|
|
| 6. |
NA01101
|
[1] |
|
|
| 7. |
NA00946
|
[1] |
|
|
| 8. |
NA01102
|
[1] |
|
|
| 9. |
NA00973
|
[1] |
|
|
