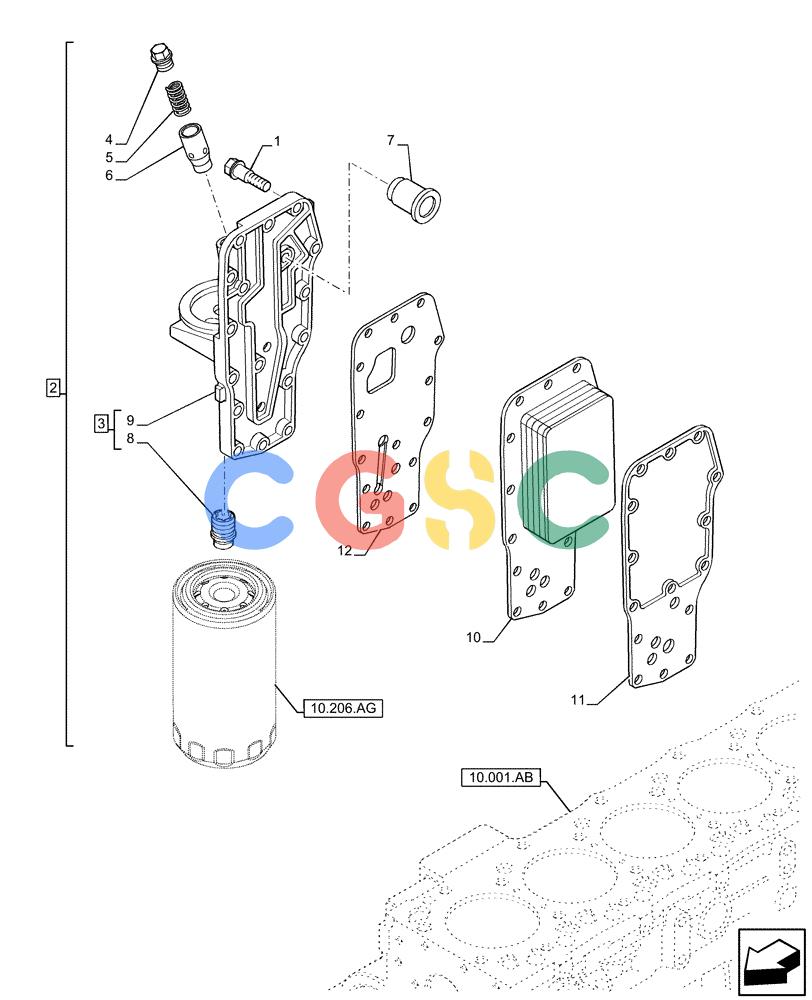

神钢零件查询(F4HFE6131 B003) - ENGINE 5801858658 IPU 280B TIER4 B (1/16-) (10.408.AC) - HEAT EXCHANGER, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
887 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899019 | [15] | SCREW,Hex Flg, M8 x 1.25 x 35 | TOR |
| 2. | 2853780 | [1] | FILTER HEAD | TORASSY, Incl 3, 4, 5, 6, 7, 10, 11, 12 Superseded by part number: 504096409, 4899566, 4896410, 4896404, 4895045 |
| 3. | 4899566 | [1] | FILTER HEAD | TORASSY, Incl 8, 9 |
| 4. | 2853781 | [1] | PLUG,Hex, M22 x 1.5 ORB | TOR Superseded by part number: 504096409 |
| 5. | 4896404 | [1] | PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD | TOR |
| 6. | 4895045 | [1] | SPRING,Compression, 14.7mm OD x 66mm L | TOR |
| 7. | 4896410 | [1] | VALVE PRESSURE RELIE | TOR Superseded by part number: J936365 |
| 8. | 4893391 | [1] | ADAPTER,M24 x 2 x M27 x 2 | TOR |
| 8. | 4899150 | [1] | | |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONFilter Head, Incl in 3 |
| 10. | 4896407 | [1] | OIL COOLER | TOR Superseded by part number: |
| 10. | 5801750731 | [1] | Alternative with 4896407 | HEAT EXCHANGER |
| 11. | 2830559 | [1] | GASKET,0.5mm Thk | TOR |
| 12. | 4896409 | [1] | GASKET,1.55mm Thk | TOR |
