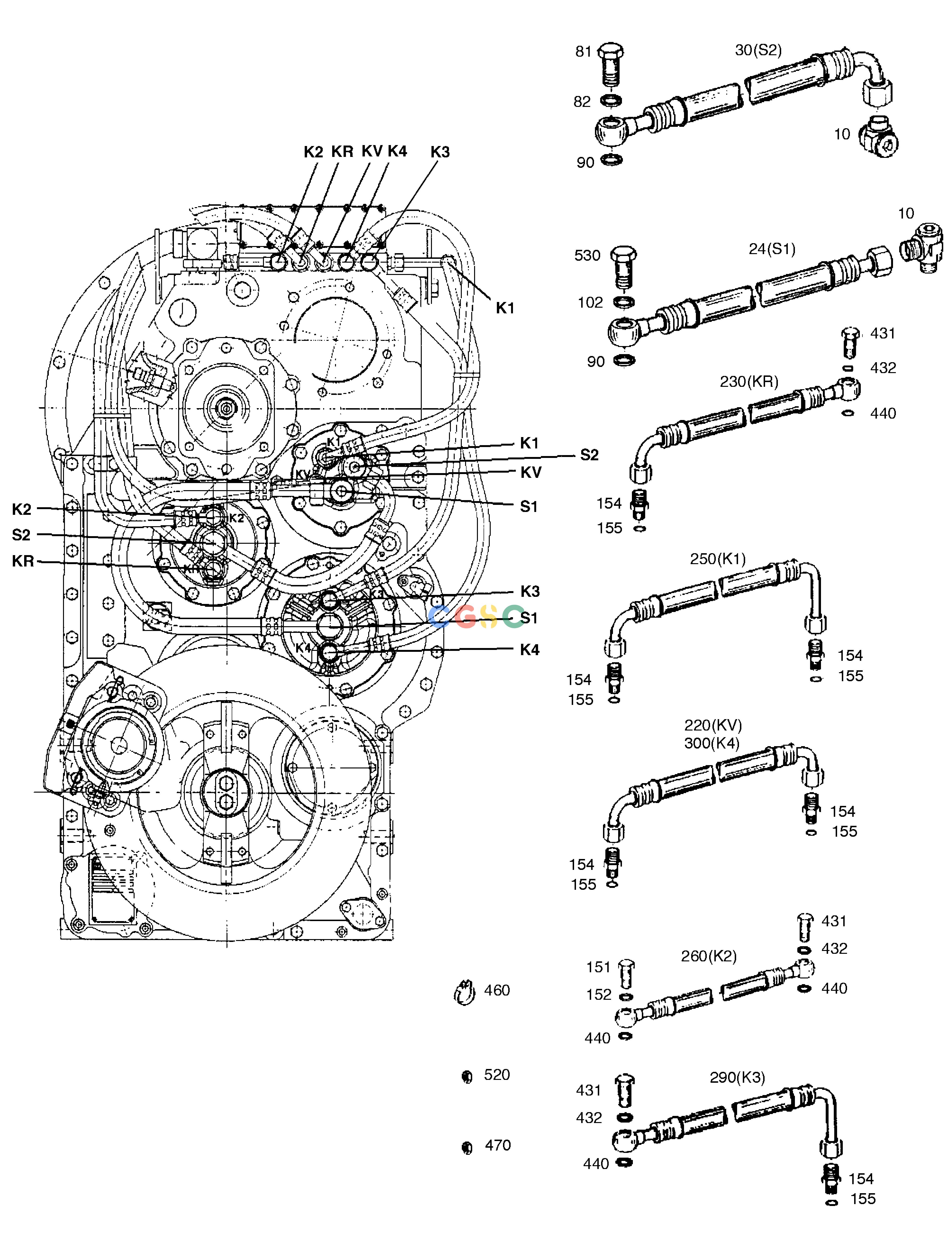

斗山零件查询OIL PIPE - TRANSMISSION MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K9000131
|
[1] |
OIL PIPE
|
|
| 10. |
2.181-00457
|
[2] |
UNION;PIPE
|
|
| 102. |
2.180-00346
|
[1] |
O-RING
|
|
| 151. |
2.120-00793
|
[1] |
SCREW
|
|
| 152. |
1.180-00103
|
[1] |
JOINT TORIQUE
|
|
| 154. |
2.181-00438
|
[8] |
SOCKET
|
|
| 155. |
1.180-00103
|
[8] |
JOINT TORIQUE
|
|
| 220. |
K9000116
|
[1] |
HOSE
|
|
| 230. |
2.184-00077
|
[1] |
HOSE
|
|
| 24. |
K9000008
|
[1] |
PIPE;HOSE
|
|
| 250. |
2.184-00076
|
[1] |
HOSE
|
|
| 260. |
2.184-00071
|
[1] |
HOSE
|
|
| 290. |
K9000122
|
[1] |
HOSE
|
|
| 30. |
K9000004
|
[1] |
HOSE
|
|
| 300. |
K9000006
|
[1] |
HOSE
|
|
| 431. |
2.120-00690
|
[3] |
SCREW
|
|
| 432. |
1.180-00103
|
[3] |
JOINT TORIQUE
|
|
| 440. |
1.180-00102
|
[4] |
O-RING
|
|
| 460. |
2.124-00085
|
[2] |
CLAMP;HOSE
|
|
| 470. |
1.114-00263
|
[1] |
WASHER
|
|
| 520. |
2.121-00255
|
[1] |
NUT;HEX.
|
|
| 530. |
K9000113
|
[1] |
SCREW;UNION
|
|
| 81. |
2.120-00691
|
[1] |
SCREW
|
|
| 82. |
2.180-00346
|
[1] |
O-RING
|
|
| 90. |
2.180-00350
|
[2] |
O-RING
|
|
