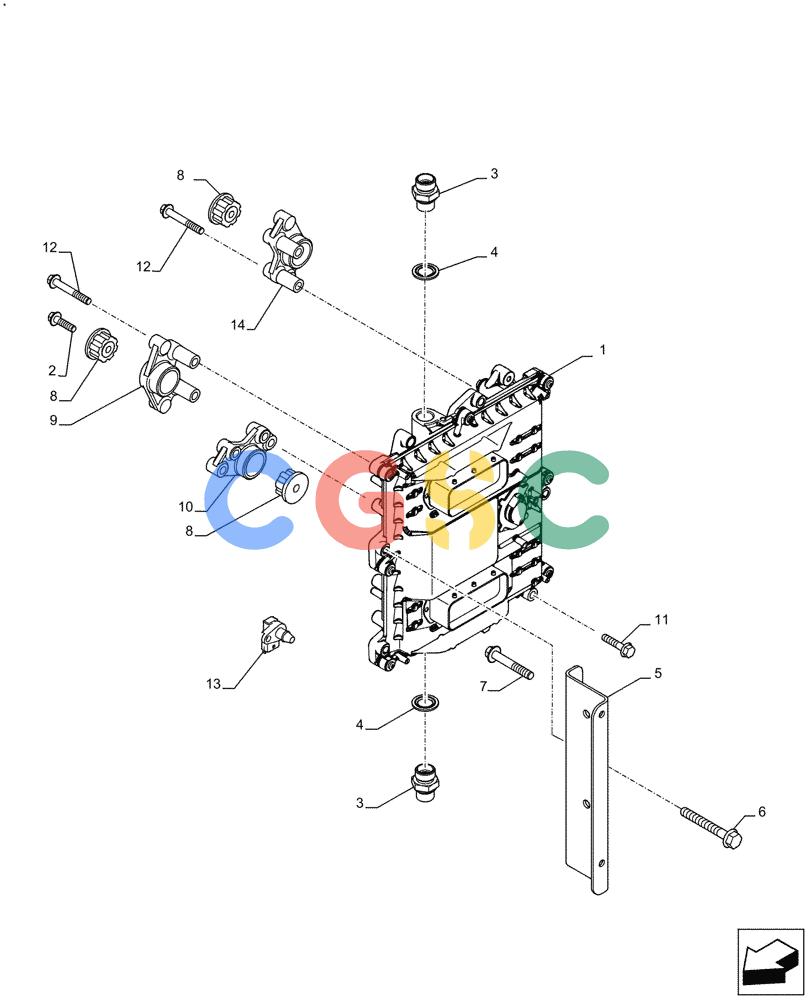

神钢零件查询(F4HFE6131 B003) - ENGINE 5801858658 IPU 280B TIER4 B (1/16-) (55.015.AA) - ENGINE, ELECTRONIC CONTROL UNIT Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
769 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84499733 | [1] | ECU | GIModule |
| 1. | 84499733R | [1] | REMAN ELECT CONTROL | RAC |
| 2. | 4895817 | [1] | BOLT,Flng, M6 x 1 x 20mm, Cl 10.9 | TOR |
| 4. | 4858609 | [2] | WASHER,Brass | TTF |
| 6. | 4899078 | [3] | SCREW,Hex Flg, M8 x 1.25 x 45 | TOR |
| 7. | 2852101 | [2] | FLANGE BOLT,Hex, M6 x 16mm | TOR Superseded by part number: 18137825 |
| 10. | 504297839 | [1] | BRACKET | TORMounting |
| 11. | 2852818 | [2] | SCREW,Hex, M6 x 1 x 30mm | SM Superseded by part number: 16586025 |
| 12. | 17935001 | [4] | SELF-TAP SCREW,Hex Flng, M5.5 x 1.8 x 45mm | TOR |
| 13. | 504372225 | [1] | SENSOR,Temperature / Pressure | CUR |
