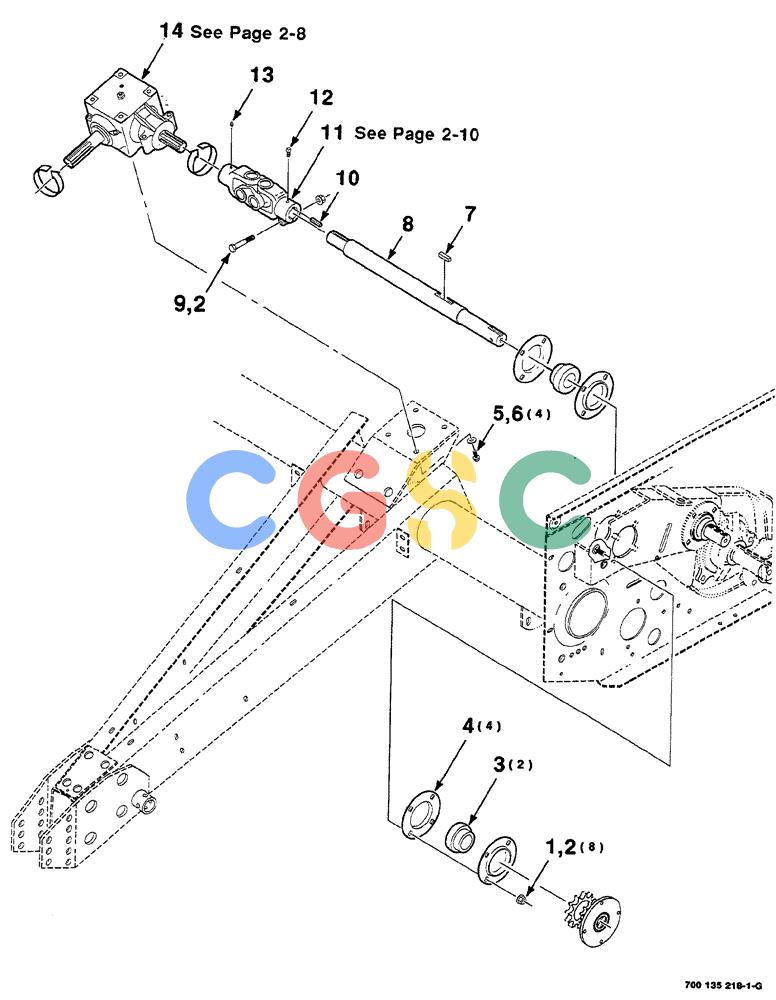

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (2-006) - MAIN DRIVE ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
500 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
433-820
|
[8] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5
|
CAS
Superseded by part number: 87868
|
| 2. |
231-5348
|
[9] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2"-13, hex. flange top lock, GR/G Superseded by part number: 86521610
|
| 3. |
51318
|
[2] |
BEARING
|
IH
spherical, 85 mm Superseded by part number: 668718R92, 47577169
|
| 4. |
50583
|
[4] |
FLANGED BEARING
|
IH
bearing Superseded by part number: 86979948
|
| 5. |
700710984
|
[4] |
SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC
|
CAS
|
| 6. |
700711557
|
[4] |
WASHER
|
CAS
1/2", hardened wide plain
|
| 7. |
761502
|
[1] |
BUCKET TOOTH KEY
|
IH
3/8" x 1-7/16"
|
| 8. |
700132714
|
[1] |
SHAFT
|
HFI
drive
|
| 9. |
413-848
|
[1] |
BOLT,Hex, 1/2" - 13 x 3", Gr 5
|
IH
Superseded by part number: 72187218, 87339
|
| 10. |
Q1443
|
[1] |
KEY,5/16" Sq x 1 1/2", Par
|
IH
|
| 11. |
700718371
|
[1] |
YOKE
|
CAS
UNIVERSAL JOINT YOKE ASSY. double Superseded by part number: 700723985
|
| 12. |
485-13812
|
[1] |
SET SCREW,Sq Hd, 3/8"-16 x 3/4"
|
CAS
Cup Pt Superseded by part number: 87616
|
| 13. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 14. |
700717910
|
[1] |
GEARBOX ASSY
|
CAS
Superseded by part number: 700725114
|
