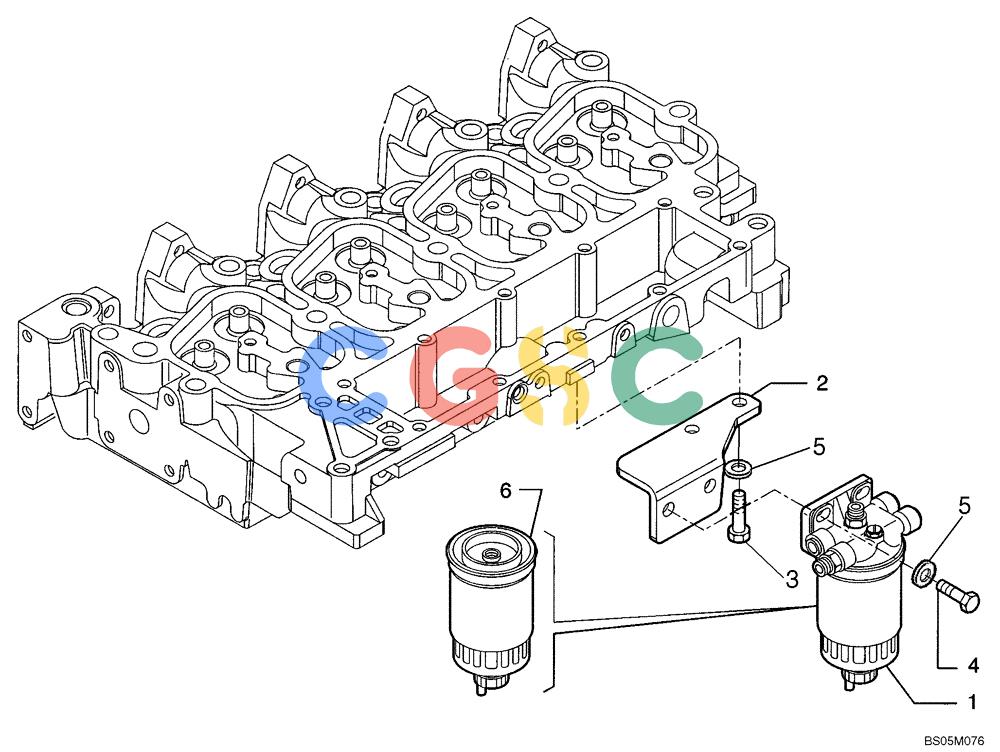

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (03-10) - FUEL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
218 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2854621 | [1] | FUEL FILTER | TORFILTER ASSY; Replaces 2852547 |
| 2. | 2854620 | [1] | BRACKET | BASSUPPORT; Replaces 2852099 |
| 3. | 16043621 | [2] | BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd | CASReplaces 4899020, 16 mm Superseded by part number: |
| 4. | 16044221 | [2] | SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8 | TTFFlange, M8 x 50: Replaces 4899093, 30 mm Superseded by part number: 16606121 |
| 5. | 14496501 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | TTF Superseded by part number: 86624184 |
| 6. | 87803192 | [1] | FUEL FILTER | PA Superseded by part number: 84565884 |
