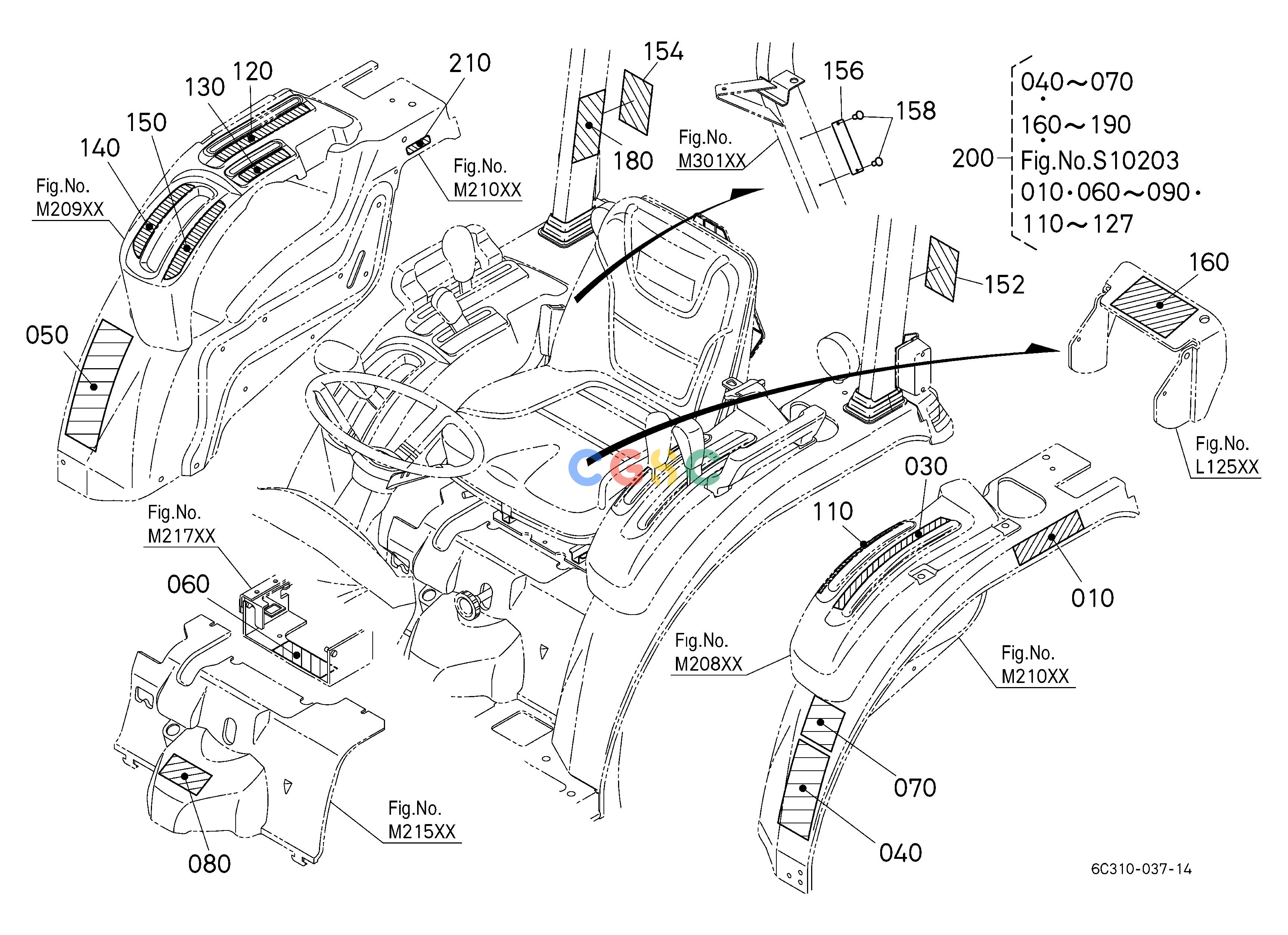

久保田零件查询S10303 LABEL (REAR) [ENGLISH] LABELSEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
597 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K257165250
|
[1] |
LABEL,4WD
|
0.0044(lbs); 0.002
|
| 030. |
6C31047330
|
[1] |
LABEL,RANGE SHIFT
|
0.0066(lbs); 0.003
|
| 040. |
6C07047422
|
[1] |
LABEL,SAFETY
|
0.0110(lbs); 0.005
|
| 040. |
6C43047420
|
[1] |
LABEL(SAFETY)
|
0.0110(lbs); 0.005
|
| 045. |
TA04049320
|
[1] |
LABEL,ROPS WARNING
|
0.0022(lbs); 0.001
|
| 050. |
TA24098480
|
[1] |
LABEL(ROPS WARNING)
|
0.0110(lbs); 0.005
|
| 050. |
TA24098482
|
[1] |
LABEL, ROPS WARNING LABEL
|
0.0110(lbs); 0.005
|
| 060. |
6C30047460
|
[1] |
LABEL,PTO
|
0.0044(lbs); 0.002
|
| 060. |
6C30047462
|
[1] |
LABEL,PTO
|
0.0044(lbs); 0.002
|
| 070. |
6C12047450
|
[1] |
LABEL,PTO
|
0.0022(lbs); 0.001
|
| 080. |
6C04047480
|
[1] |
LABEL,PEDAL
|
0.0044(lbs); 0.002
|
| 110. |
6C30047320
|
[1] |
LABEL,PTO
|
0.0044(lbs); 0.002
|
| 120. |
6C31047350
|
[1] |
LABEL,GUIDE
|
0.0044(lbs); 0.002
|
| 130. |
6C31047360
|
[1] |
LABEL,4WD
|
0.0022(lbs); 0.001
|
| 140. |
6C31047380
|
[1] |
LABEL,GUIDE
|
0.0022(lbs); 0.001
|
| 150. |
6C31047390
|
[1] |
LABEL,GUIDE
|
0.0022(lbs); 0.001
|
| 152. |
6C14054990
|
[1] |
REFLECTOR(LABEL)
|
0.0066(lbs); 0.003
|
| 154. |
6C14054990
|
[1] |
REFLECTOR(LABEL)
|
0.0066(lbs); 0.003
|
| 156. |
---- |
[1] |
NAME PLATE,ROPS
|
0.0000(lbs); 0.000
|
| 158. |
PR85146190
|
[2] |
RIVET
|
0.0000(lbs); 0.000
|
| 160. |
TA04049593
|
[1] |
LABEL,PTO WARNING
|
0.0022(lbs); 0.001
|
| 160. |
6C20049590
|
[1] |
LABEL,DRAWBARPTO WARNING
|
0.0066(lbs); 0.003
|
| 180. |
3A11195540
|
[1] |
LABEL,FLDNG ROPS CAUTION
|
0.0066(lbs); 0.003
|
| 190. |
6C14047460
|
[1] |
LABEL,ROPS WARNING
|
0.0022(lbs); 0.001
|
| 200. |
6C30047402
|
[1] |
KIT LABEL,SAFETY
|
0.0000(lbs); 0.000
|
| 200. |
6C30047403
|
[1] |
KIT LABEL,SAFETY
|
1.1924(lbs); 0.542
|
| 200. |
6C30047404
|
[1] |
KIT LABEL,SAFETY
|
1.1924(lbs); 0.542
|
| 200. |
6C30047405
|
[1] |
KIT LABEL,SAFETY
|
1.1924(lbs); 0.542
|
| 200. |
6C30047406
|
[1] |
KIT LABEL,SAFETY
|
1.1924(lbs); 0.542
|
| 200. |
6C30047407
|
[1] |
KIT LABEL,SAFETY
|
1.1924(lbs); 0.542
|
| 210. |
3S20198250
|
[1] |
LABEL(EMC)
|
0.0022(lbs); 0.001
|
| 210. |
6C43047550
|
[1] |
LABEL(EMC)
|
0.0022(lbs); 0.001
|
