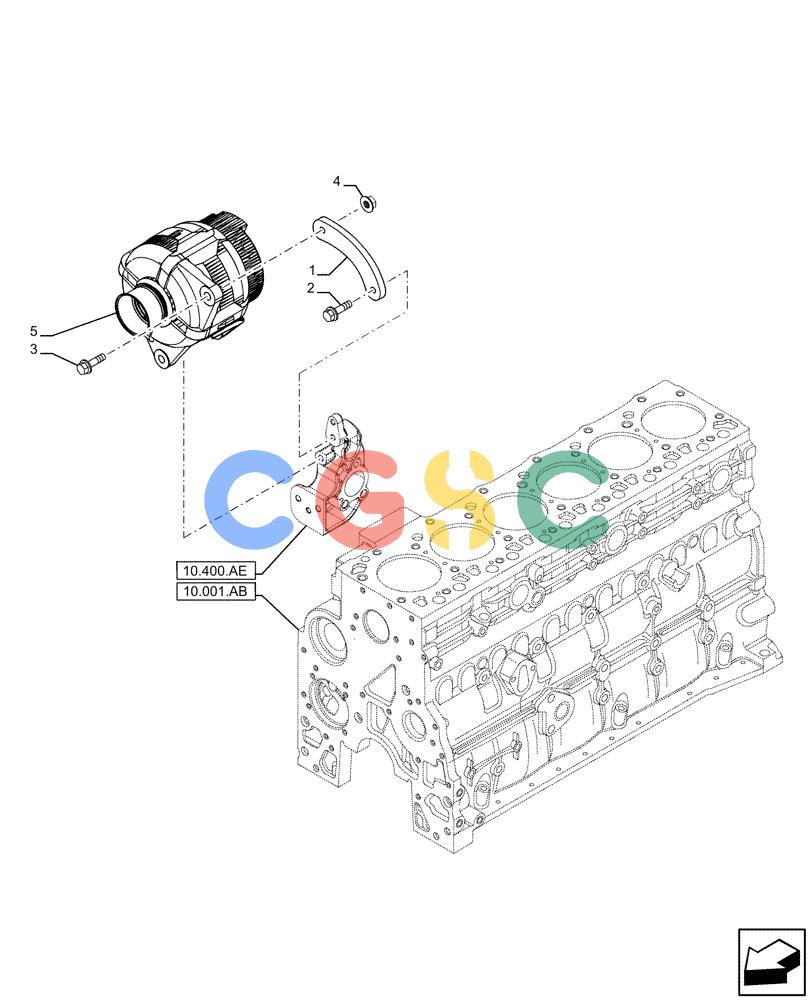

神钢零件查询(F4HFE6131 B003) - ENGINE 5801858658 IPU 280B TIER4 B (1/16-) (55.301.AB) - ALTERNATOR BRACKET AND MOUNTING Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
908 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2857012 | [1] | BRACKET | TORAlternator Mounting Superseded by part number: |
| 2. | 4895291 | [1] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 3. | 4899093 | [1] | BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC | BAS Superseded by part number: 87778358 |
| 3. | 4899122 | [1] | BOLT,Flng, M10 x 1.5 x 110mm | TOR |
| 4. | 4895166 | [1] | FLANGE NUT,M10, 1.50mm Pitch, Cl 10 | BAS |
| 5. | 4892318 | [1] | ALTERNATOR,24V, 70A, W/ Pulley | TOR |
