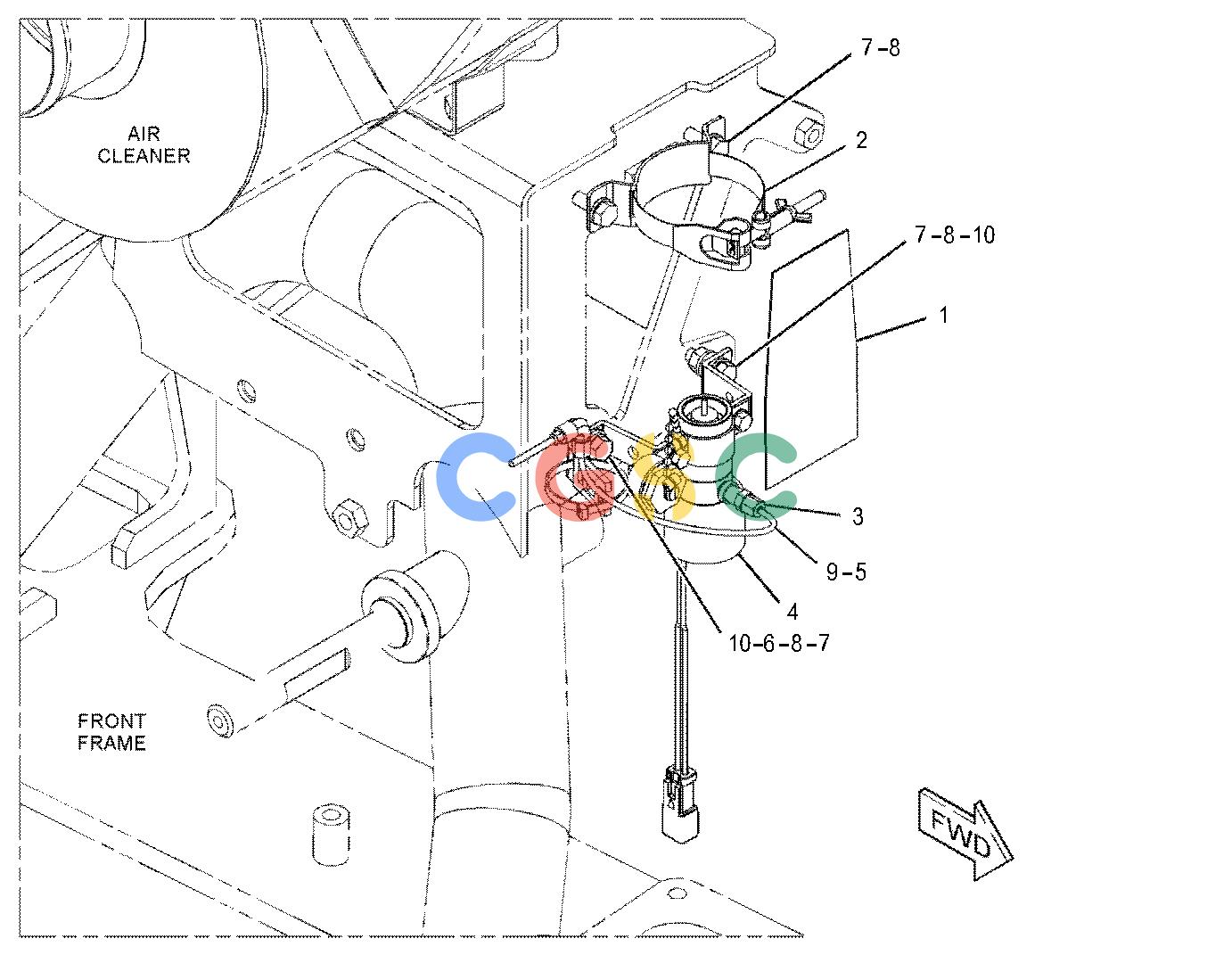

卡特零件查询（725C2） 364-4046: STARTING AID GP-ETHER
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2V-1713 | [1] | TAG-NOTICE(STARTING AID) | |
| 2. | 7N-2059 | [1] | CLAMP AS(CYLINDER) | |
| 3. | 230-0917 | [1] | FITTING AS | |
| | 236-4545 | [1] | NUT-SLEEVE(5/16-24-THD) | |
| 4. | 239-1134 | [1] | VALVE GP-ETHER STARTING(24-VOLT) | |
| | 7N-9801 | [1] | GASKET | |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 358-4889 | [1] | FILTER(ETHER START) | |
| 5. | 252-1607 | [1] | ATOMIZER AS | |
| | 236-4545 | [1] | NUT-SLEEVE(5/16-24-THD) | |
| 6. | 3S-2093 | [1] | STRAP-CABLE | |
| 7. | 8T-4224C | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 8. | 8T-4908CM | [4] | BOLT(M8X1.25X25-MM) | |
| 9. | 2U-4223D | | TUBE(0.2-M) | |
| 10. | 4P-8134 | [1] | CLIP(LADDER) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
