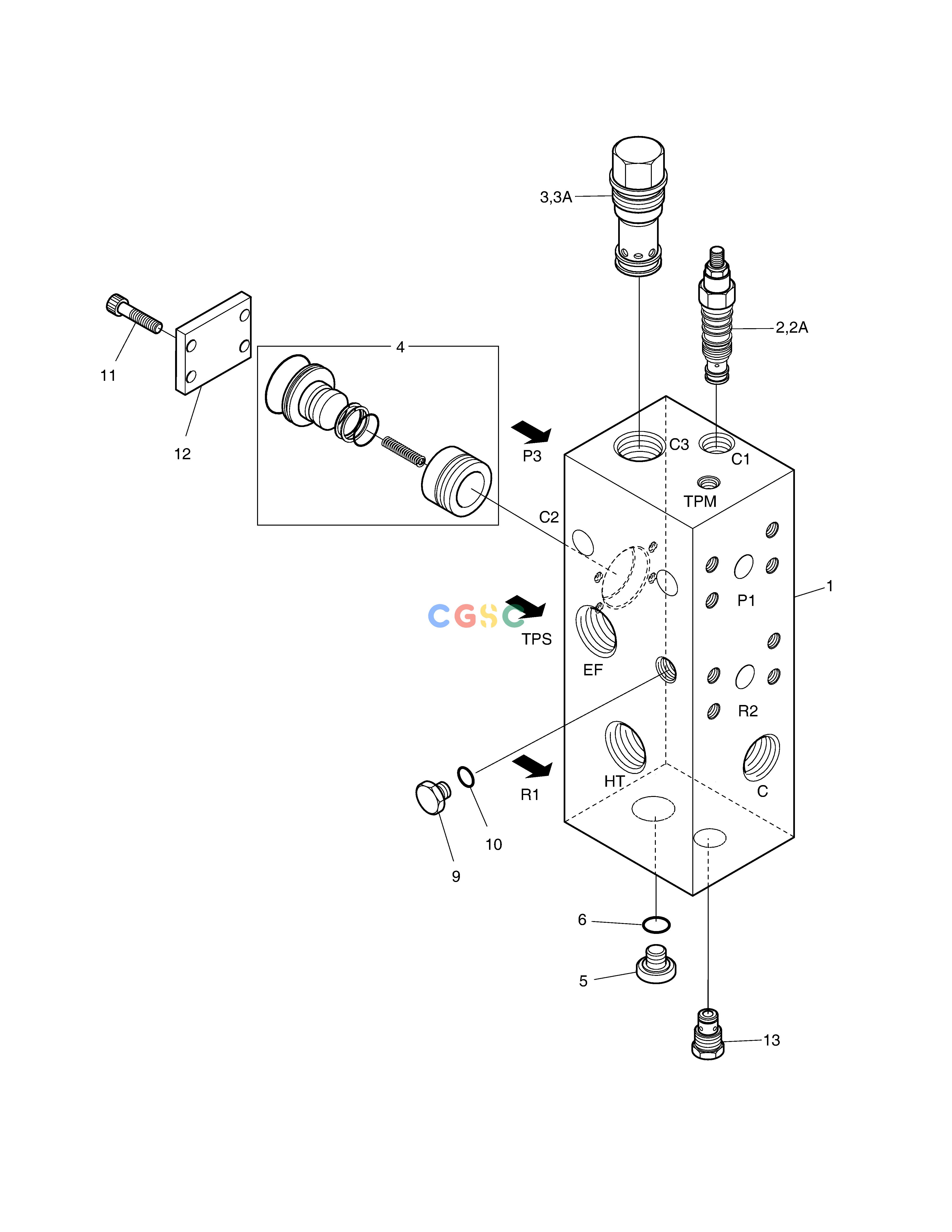

斗山零件查询UNLOADER VALVE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
395 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420-00522A
|
[1] |
UNLOADER VALVE
|
410146-00002
|
| -. |
410146-00002
|
[1] |
|
|
| 1. |
NA00069
|
[1] |
BLOCK
|
|
| 10. |
NA00643
|
[1] |
. O-RING
|
|
| 11. |
S2208861
|
[4] |
BOLT
|
|
| 12. |
NA00392
|
[1] |
COUVERCLE
|
|
| 13. |
CXGD-XEN
|
[1] |
CHECK VALVE
|
|
| 2. |
1.420-00059
|
[1] |
DIRECTION VALVE
|
|
| 2A. |
1.180-00450
|
[1] |
SEAL KIT
|
|
| 3. |
1.420-00038
|
[1] |
VALVE;CHECK
|
|
| 3A. |
1.180-00453
|
[1] |
SEAL KIT
|
|
| 4. |
1.420-00068
|
[1] |
LOGIC VALVE
|
|
| 5. |
NA00843
|
[1] |
PLUG
|
|
| 6. |
NA00643
|
[1] |
. O-RING
|
|
| 9. |
NA00843
|
[1] |
PLUG
|
|
