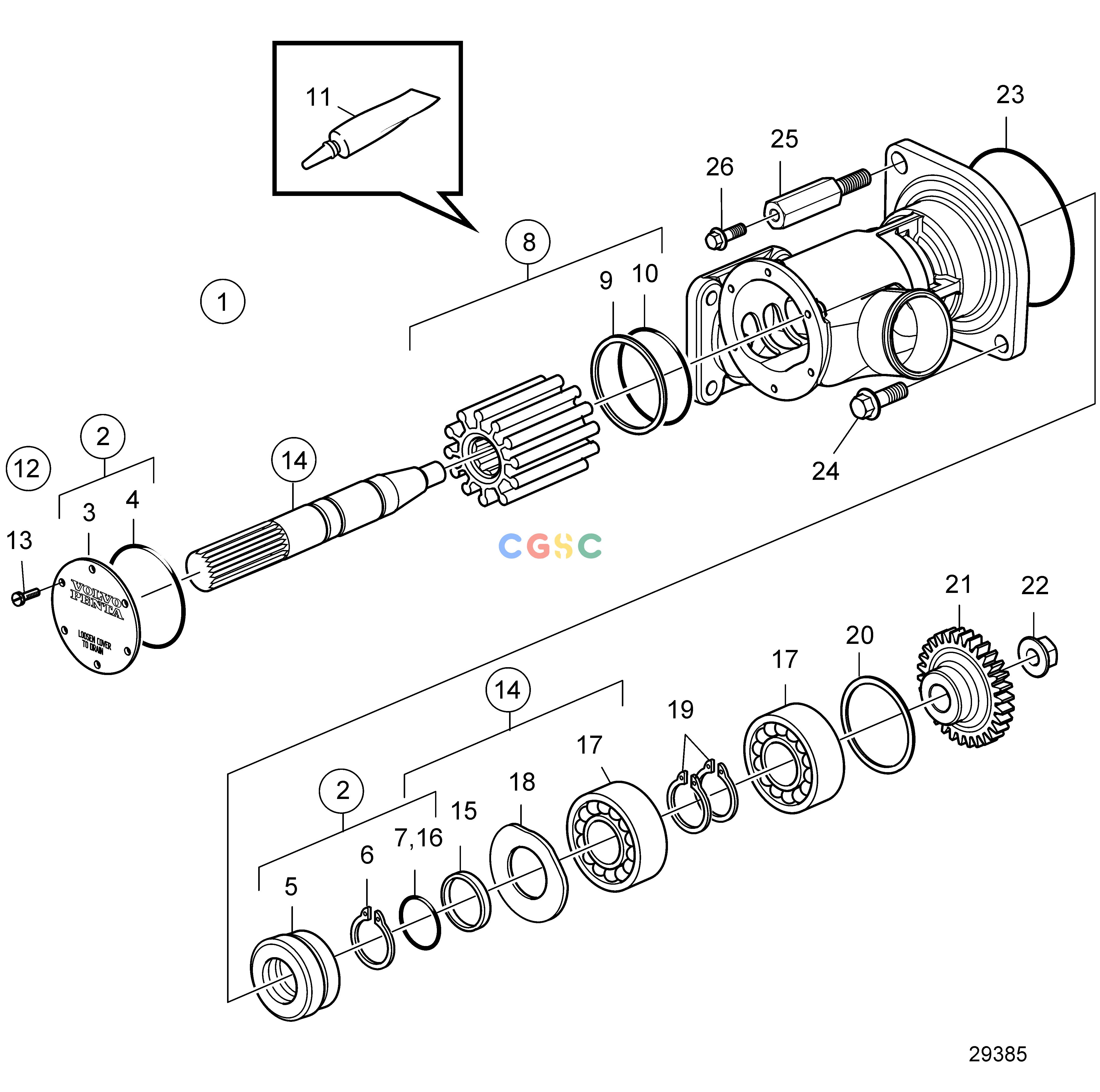

沃尔沃零件查询D8A1-A MP; D8A2-A MPCooling SystemSea Water Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
783 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22769742
|
[1] |
Sea water pump
|
Replaced by 23002155
|
| 1. |
23002155
|
[1] |
Sea water pump
|
|
| 2. |
21951404
|
[1] |
Wear kit
|
Replaced by 22994985
|
| 2. |
22994985
|
[1] |
Wear kit
|
|
| 3. |
3581617
|
[1] |
Cover
|
|
| 4. |
3581618
|
[1] |
O-ring
|
|
| 5. |
864649
|
[1] |
Seal
|
|
| 6. |
943468
|
[1] |
Snap ring
|
|
| 7. |
864648
|
[1] |
O-ring
|
|
| 8. |
21951358
|
[1] |
Impeller kit
|
Replaced by 22994993
|
| 8. |
22994993
|
[1] |
Impeller kit
|
|
| 9. |
3825108
|
[1] |
Gasket
|
|
| 10. |
3581618
|
[1] |
O-ring
|
|
| 11. |
3862178
|
[1] |
Grease
|
|
| 12. |
21951334
|
[1] |
Screw kit
|
|
| 13. |
21346724
|
[6] |
Hexagon screw
|
|
| 14. |
21951467
|
[1] |
Kit spx, shaft kit
|
|
| 15. |
864647
|
[1] |
Sealing ring
|
|
| 16. |
864648
|
[1] |
O-ring
|
|
| 17. |
11023
|
[2] |
Ball bearing
|
|
| 18. |
|
|
|
|
| 19. |
21422640
|
[2] |
Retaining ring
|
|
| 20. |
21422641
|
[1] |
Retaining ring
|
|
| 21. |
|
|
|
|
| 22. |
990017
|
[1] |
Flange nut
|
|
| 23. |
996326
|
[2] |
O-ring
|
|
| 24. |
969445
|
[1] |
Flange screw
|
|
| 25. |
22416579
|
[1] |
Spacer screw
|
|
| 26. |
984726
|
[1] |
Flange screw
|
|
