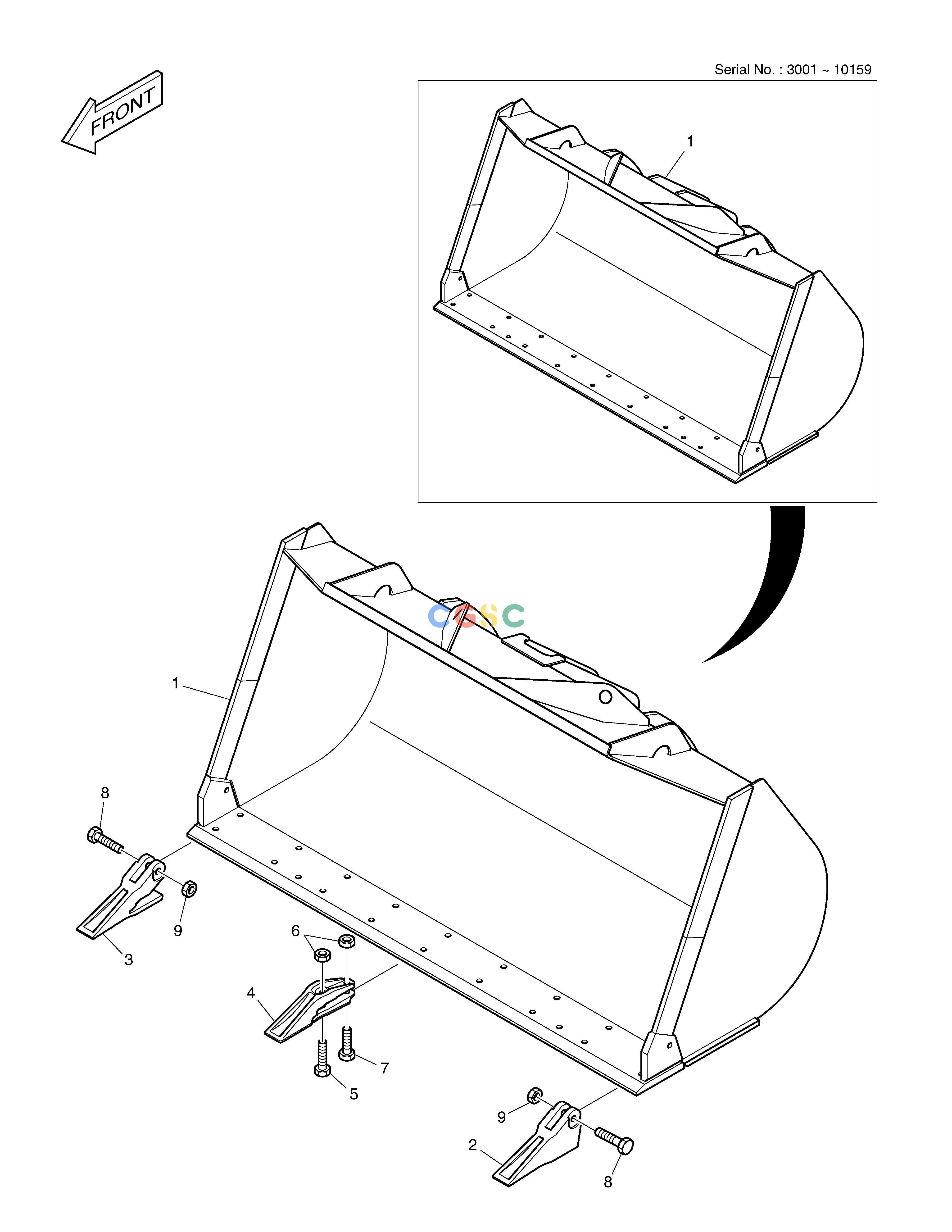

斗山零件查询BUCKET - 3.9㎥ - TOOTH - REINFORCE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
704-00249C
|
[1] |
BUCKET ASS'Y
|
230104-00273A
|
| -. |
230104-00273A
|
[1] |
|
|
| 1. |
704-00246B
|
[1] |
BUCKET-3.9㎥
|
230104-00272A
|
| 1. |
230104-00272A
|
[1] |
|
|
| 2. |
4713-1131B
|
[1] |
TOOTH;SIDE(L.H)
|
|
| 3. |
4713-1132B
|
[1] |
TOOTH;SIDE(R.H)
|
|
| 4. |
4713-1130C
|
[7] |
TOOTH
|
|
| 5. |
S0534666
|
[7] |
BOLT
|
|
| 6. |
S4013343
|
[14] |
NUT
|
|
| 7. |
S0534466
|
[7] |
BOLT
|
|
| 8. |
S0779966
|
[2] |
BOLT M30X2.0X125
|
|
| 9. |
S4031533
|
[2] |
NUT M30X2.0
|
|
