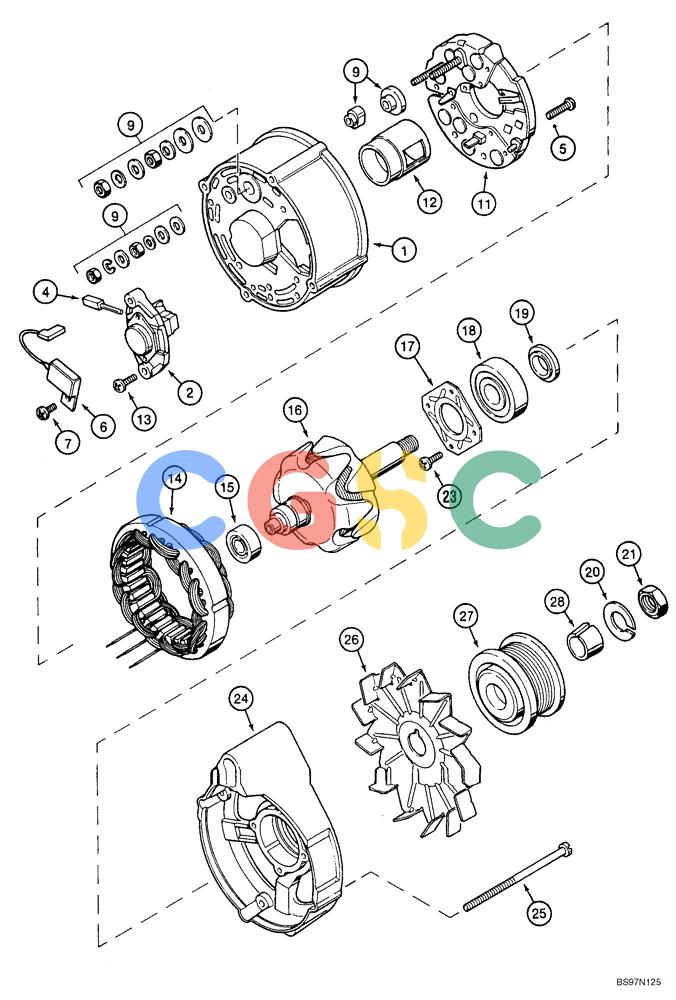

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (04-02) - ALTERNATOR ASSY (MODELS WITHOUT AIR CONDITIONING) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
545 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | A187873 | [1] | ALTERNATOR,12V, 65A | CAS14V, 65 amp; Incl. Ref 1 - 25 |
| . . | A187873GV | [1] | ALTERNATOR | MKTValue, 14V, 65A |
| 1. | A187903 | [1] | COVER | CASHousing |
| 2. | A187906 | [1] | VOLTAGE REGULATOR | CAS |
| 4. | 1964968C1 | [1] | COMMUTATOR BRUSH | IHSet Of Two |
| 5. | 1530431C1 | [2] | BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr | IHWith Washer Superseded by part number: A186194 |
| 6. | 3079134R1 | [1] | CAPACITOR | IH |
| 7. | 840-1510 | [1] | SCREW,Pan, M5 x 10mm, Cl 4.8 | CAS Superseded by part number: 86585709 |
| 9. | A187904 | [1] | MULTIPOLE CONNECTOR | CASKit, Terminal Connecting Parts |
| 11. | 360330A1 | [1] | RECTIFIER | CAS |
| 12. | A187899 | [1] | INNER SHIELD | CASShield Superseded by part number: 86578492 |
| 13. | A187504 | [2] | SCREW | CAS |
| 14. | A187995 | [1] | STATOR | CAS |
| 15. | A186186 | [1] | BALL BEARING,12mm ID x 32mm OD x 10mm W | CASSmall, Inner Superseded by part number: 9808450 |
| 16. | 1964964C1 | [1] | ROTOR | IH |
| 17. | A187901 | [1] | FIXING PLATE | CASPlate |
| 18. | A186183 | [1] | BALL BEARING,17 mm ID x 47 mm OD x 14 mm | CASLarge, Outer Superseded by part number: 87306803 |
| . . | 3078897R1 | [1] | SET OF PARTS | IHKit, Retainer; Incl. Ref 19 - 23 Superseded by part number: 1307188 |
| 19. | NSS | [1] | NOT SERVICED SEPARATELY | CONRing |
| 24. | A187994 | [1] | HOUSING | CASHousing; Drive End |
| 25. | A186193 | [4] | BOLT,Pan, Cross Recess Phillips, M5 x 110mm | CAS |
| 26. | 221425R1 | [1] | FAN | IHOrder Separately |
| 27. | J908560 | [1] | PULLEY | CASOrder Separately Superseded by part number: 84538542 |
| 28. | J908563 | [1] | RETAINER | CASOrder Separately Superseded by part number: J908563AM |
