斗山零件查询CONTROL STAND - 2LEVER MEGA 400-V (CHINA) Doosan parts catalog online

广数供应链运营团队, 15 02月, 2025，浏览： 502 次

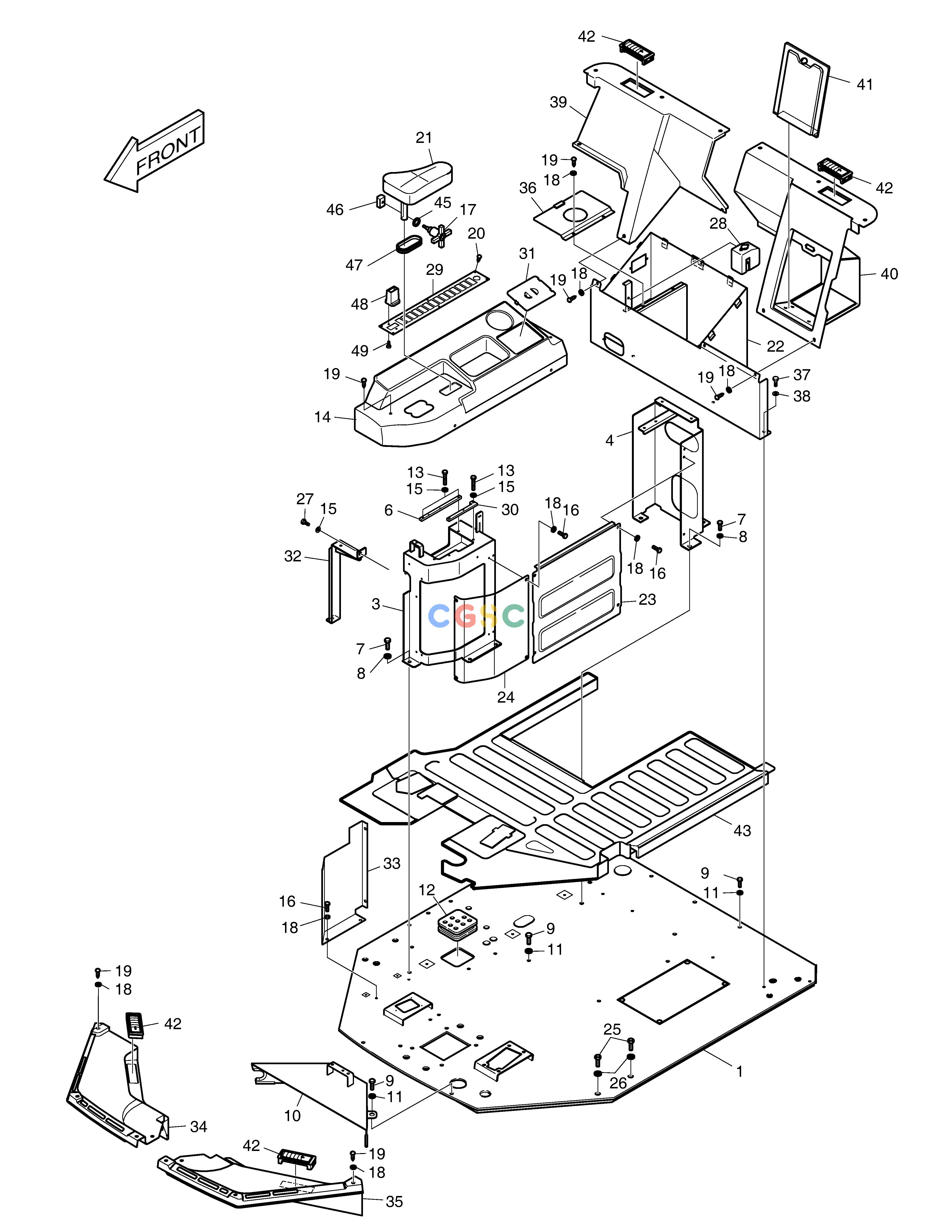

Pos.	Part No	Qty	Parts name
-.	195-02838C	[-]	CONTROL STAND
1.	621-02927	[1]	PLATE;FLOOR
10.	621-03042	[1]	COVER;HARNESS
11.	2114-1898D6	[8]	WASHER
12.	4160-1340	[1]	BUSHING
13.	2120-2166D5	[3]	BOLT
14.	195-02782A	[1]	STAND;CONTROL
15.	S5010513	[5]	WASHER
16.	2120-2166D19	[14]	. BOLT M6X1.0X12
17.	132-00032	[1]	KNOB
18.	2114-1898D3	[42]	WASHER
19.	2120-2166D10	[34]	SCREW
20.	2120-2166D26	[6]	SCREW
21.	161-00561A	[1]	REAR;ARM
22.	195-00316	[1]	SUPPORT
23.	4627-1645A	[1]	COVER
24.	621-00053B	[1]	COVER
25.	S2227975	[8]	BOLT;SOCKET M20X2.0X65
26.	2114-9012A	[8]	WASHER
27.	S2209066	[2]	BOLT
28.	4916-9006	[1]	WASHER;WINDOW
29.	621-03671	[1]	COVER;SWITCH
3.	195-02786	[1]	BRACKET
30.	195-02634	[1]	BRACKET
31.	621-00054A	[1]	COVER
32.	197-00037B	[1]	BRACKET
33.	621-02446C	[1]	PLATE
34.	621-02624A	[1]	PANEL;FRONT(R.H.)
35.	621-02500A	[1]	PANEL;FRONT(L.H.)
36.	627-00009	[1]	COVER
37.	2120-2166D12	[4]	BOLT
38.	2114-1898D2	[4]	WASHER
39.	621-00056B	[1]	PANEL;REAR(R.H.)
4.	197-00090	[1]	BRACKET
40.	621-00059C	[1]	PANEL;REAR(L.H.)
41.	621-01385	[1]	COVER
42.	2415-9008	[4]	NOZZLE;AIRCON
43.	161-00656	[1]	MAT;FLOOR
45.	2114-1898D1	[1]	WASHER
46.	621-02576	[1]	PLATE;LOCK
47.	160-00062	[1]	GROMMET
48.	621-03672	[1]	COVER;SWITCH
49.	2120-2166D8	[2]	BOLT
6.	621-02434A	[1]	BRACKET;VALVE M/T
7.	2120-2166D4	[8]	BOLT
8.	2114-1898D1	[8]	WASHER
9.	2120-2166D27	[8]	BOLT
