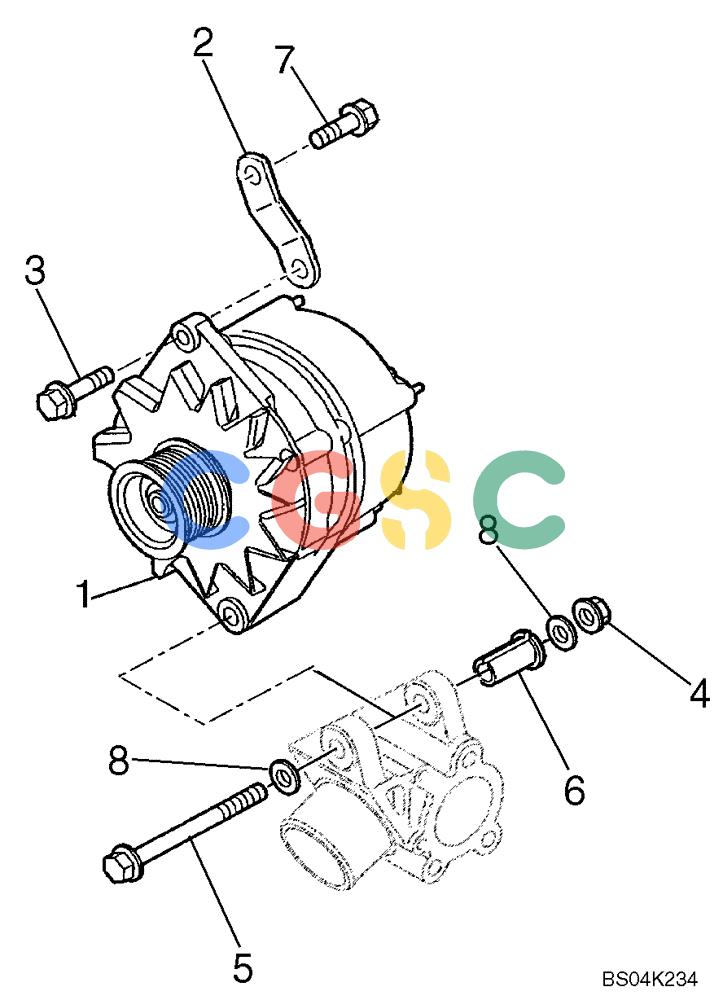

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (04-04) - ALTERNATOR MOUNTING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
647 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 2853215 | [1] | BRACKET | TORMounting Strap Superseded by part number: 504076666 |
| 3. | 4899020 | [1] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 4. | 832-10410 | [1] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 5. | 827-10130 | [1] | BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9 | CAS Superseded by part number: 84577051 |
| 6. | 87452257 | [1] | SPACER | BUR |
| 7. | 855-8020 | [1] | BOLT,Hvy Hex, M8 x 20mm, Cl 10.9 | CAS Superseded by part number: 87344207 |
| 8. | 896-11010 | [2] | WASHER,11mm ID x 21mm OD x 2.5mm Thk | CAS Superseded by part number: 86625252 |
