纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (04-06) - BATTERY, DUAL - CANOPY, ROPS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
345 次

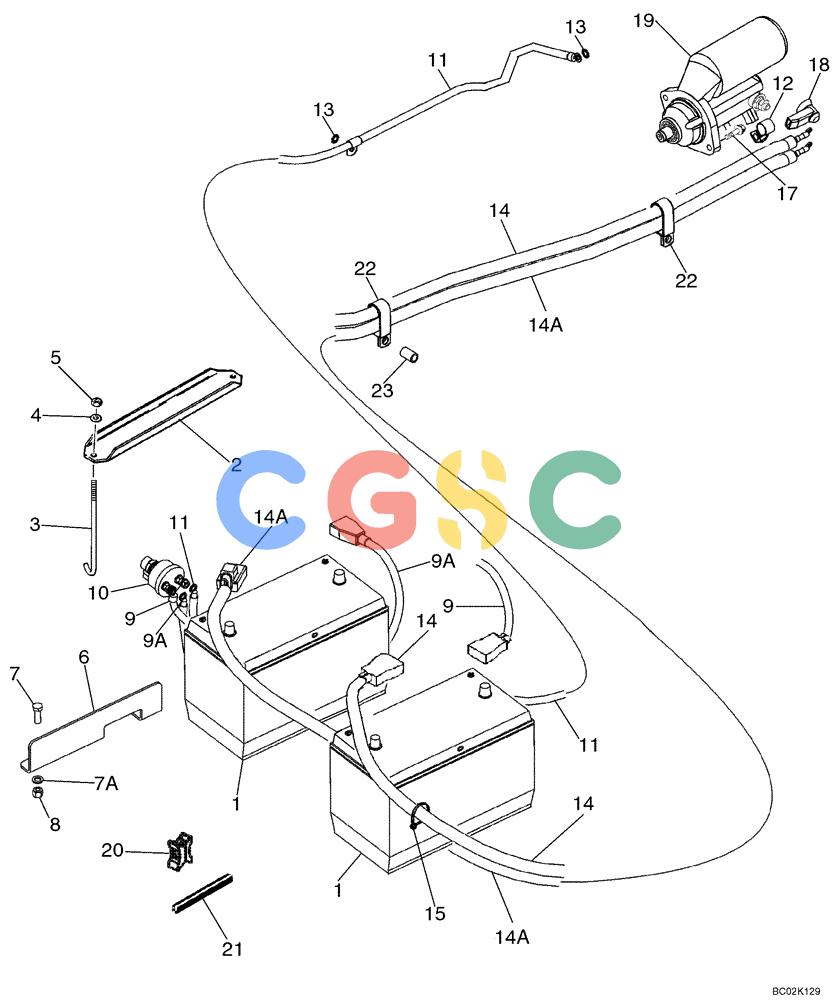

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | F845DSW | [2] | WET BATTERY | MKT12 Volt, 700 CCA; Order Through Ship Direct |
| 2. | R46490 | [1] | BRACKET | CAS |
| 3. | 416297A1 | [2] | ROD | CAS |
| 4. | 896-15008 | [2] | WASHER,9mm ID x 21mm OD x 2.5mm Thk | CAS9 x 21 x 2,5 mm Superseded by part number: 87015284 |
| 5. | 832-10408 | [2] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| 6. | 417789A1 | [2] | ANGLE | CAS |
| 7. | 614-10030 | [4] | BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd | IH Superseded by part number: 43140 |
| 7A. | 895-11010 | [4] | WASHER,11mm ID x 20mm OD x 2mm Thk | CAS11 x 21 x 2 mm Superseded by part number: 14496621 |
| 8. | 832-10410 | [4] | NUT,M10 x 1.5, Cl 8 | CAS Superseded by part number: 190003888452 |
| 9. | 86982902 | [1] | NEG BATTERY CABLE | BUR1167 mm (46 in) |
| 10. | 87409316 | [1] | SWITCH | IMOMaster Disconnect; Component Parts Not Serviced Separately; Replaces R52278 |
| 11. | 86982704 | [1] | GROUND CABLE | BURNegative, 1956 mm (77 in); Engine to Frame; Includes Clamp |
| 12. | R45966 | [1] | CLAMP,90° Twist, 0.94mm Dia, Coated | CAS |
| 13. | 893-11010 | [2] | LOCK WASHER,Ext Tooth, M10 | CAS Superseded by part number: 86632602 |
| 14. | R57564 | [1] | CABLE | CASPositive, 2261 mm (89 in) |
| 14A. | 432901A1 | [1] | CABLE ASSY. | BURPositive, 2660 mm (104-3/4 in) |
| 15. | L18331 | [1] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
| 17. | R54620 | [2] | BOLT | CAS |
| 18. | L126713 | [1] | BOOT | CAS |
| 19. | 86992395 | [1] | STARTER MOTOR,12V, 2.7kW | TORSee Figure 04-01 |
| 19. | 86992395R | [1] | REMAN-STARTER,12V, 2.7kW | TORRemanufactured Starter |
| 19. | 86992395C | [1] | CORE-STARTER,12V, 2.7kW | TORReturn number |
| 20. | 86982400 | [2] | SPACER | NHNylon Mount |
| 21. | NSS | [1] | NOT SERVICED SEPARATELY | CONTrim, 12 in, Cut From F42827 |
| 22. | 242999A1 | [2] | CLAMP | CAS |
| 23. | 87302880 | [1] | SPACER,13.5mm ID x 19mm OD x 30.2mm L | CAS3/4 tube |
| . . | F42827 | [1] | TRIM,2946.4mm L | CASBulk, 116 inch long |
