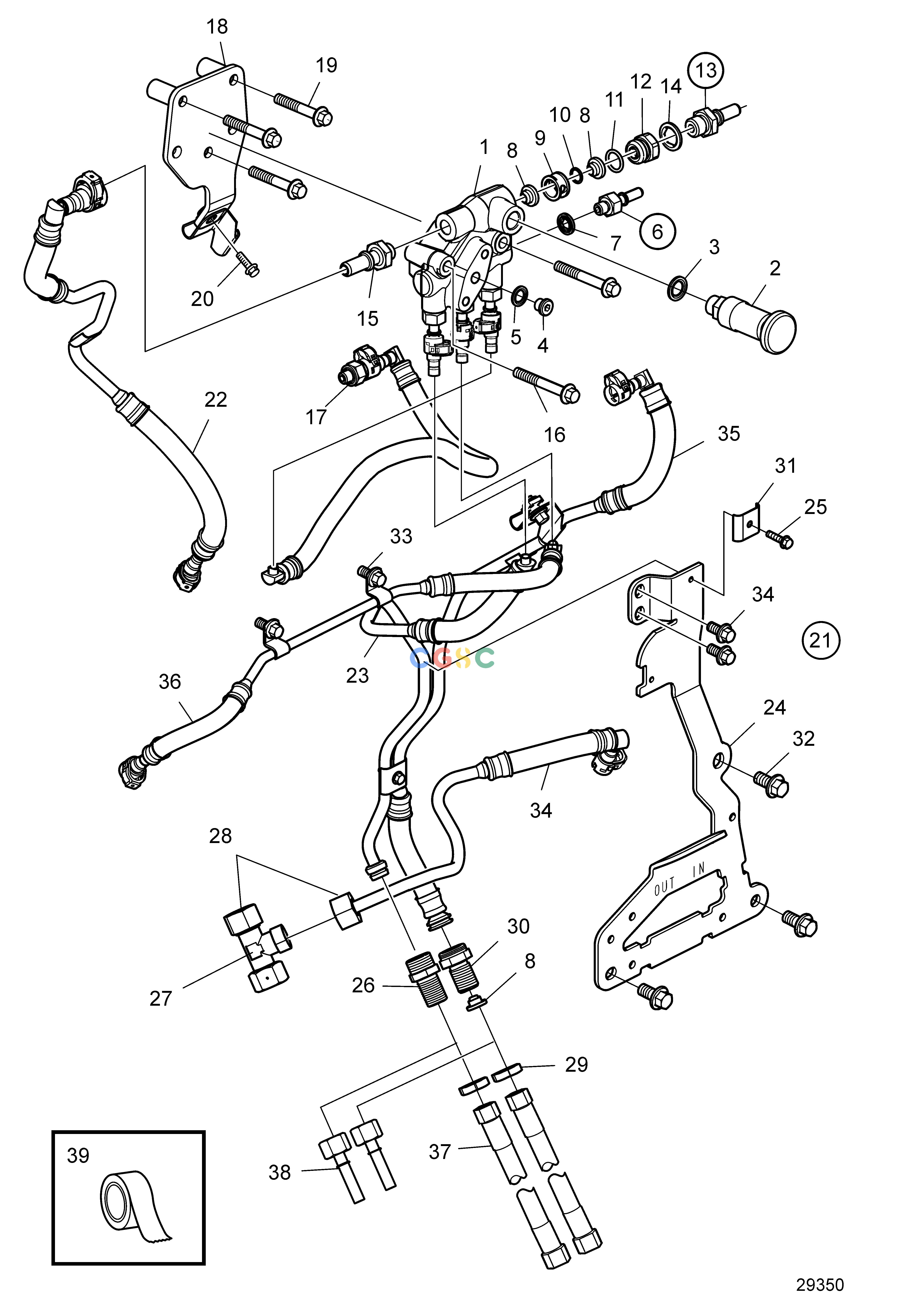

沃尔沃零件查询D8A1-A MP; D8A2-A MPFuel SystemFuel Feed Pump and ConnectionsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
445 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22298388
|
[1] |
Connection block
|
|
| 2. |
3837393
|
[1] |
Hand pump
|
|
| 3. |
20852765
|
[1] |
Sealing ring
|
|
| 4. |
965768
|
[1] |
Plug
|
|
| 5. |
20852762
|
[1] |
Sealing ring
|
|
| 6. |
21720235
|
[1] |
Fuel nipple
|
|
| 7. |
20869257
|
[1] |
Gasket
|
|
| 8. |
244834
|
[3] |
Non-return valve
|
|
| 9. |
3964717
|
[1] |
Spacer sleeve
|
|
| 10. |
976971
|
[1] |
O-ring
|
|
| 11. |
1526474
|
[1] |
O-ring
|
|
| 12. |
8148328
|
[1] |
Nipple
|
|
| 13. |
21720060
|
[1] |
Fuel nipple
|
|
| 14. |
20869260
|
[1] |
Gasket
|
|
| 15. |
21953557
|
[1] |
Fuel nipple
|
|
| 16. |
984740
|
[2] |
Flange screw
|
|
| 17. |
22846603
|
[1] |
Fuel hose
|
|
| 18. |
22309809
|
[1] |
Bracket
|
|
| 19. |
984739
|
[3] |
Flange screw
|
|
| 20. |
984733
|
[1] |
Flange screw
|
|
| 21. |
22868884
|
[1] |
Fuel hose
|
|
| 22. |
|
|
|
|
| 24. |
22412108
|
[1] |
Bracket
|
|
| 25. |
949534
|
[2] |
Flange screw
|
|
| 26. |
22478928
|
[1] |
Non-return valve
|
|
| 27. |
984806
|
[1] |
T-nipple
|
|
| 28. |
956985
|
[2] |
Fitting nut
|
|
| 29. |
957019
|
[2] |
Hexagon nut
|
|
| 30. |
3826660
|
[1] |
Fuel hose
|
|
| 31. |
|
|
|
|
| 32. |
984752
|
[3] |
Flange screw
|
|
| 33. |
984733
|
[4] |
Flange screw
|
|
| 34. |
|
|
|
|
| 35. |
949534
|
[1] |
Flange screw
|
|
| 36. |
22337069
|
[1] |
Fuel hose
|
|
| 37. |
|
|
|
Replaced by 23043796
|
| 37. |
23043796
|
[2] |
Fuel hose
|
|
| 38. |
931561
|
[2] |
Hose nipple
|
|
| 39. |
3819448
|
[1] |
Tape
|
|
