卡特零件查询（725C2） 260-5864: SWITCH GP-TOGGLE
广数供应链运营团队, 15 02月, 2025，浏览：
295 次

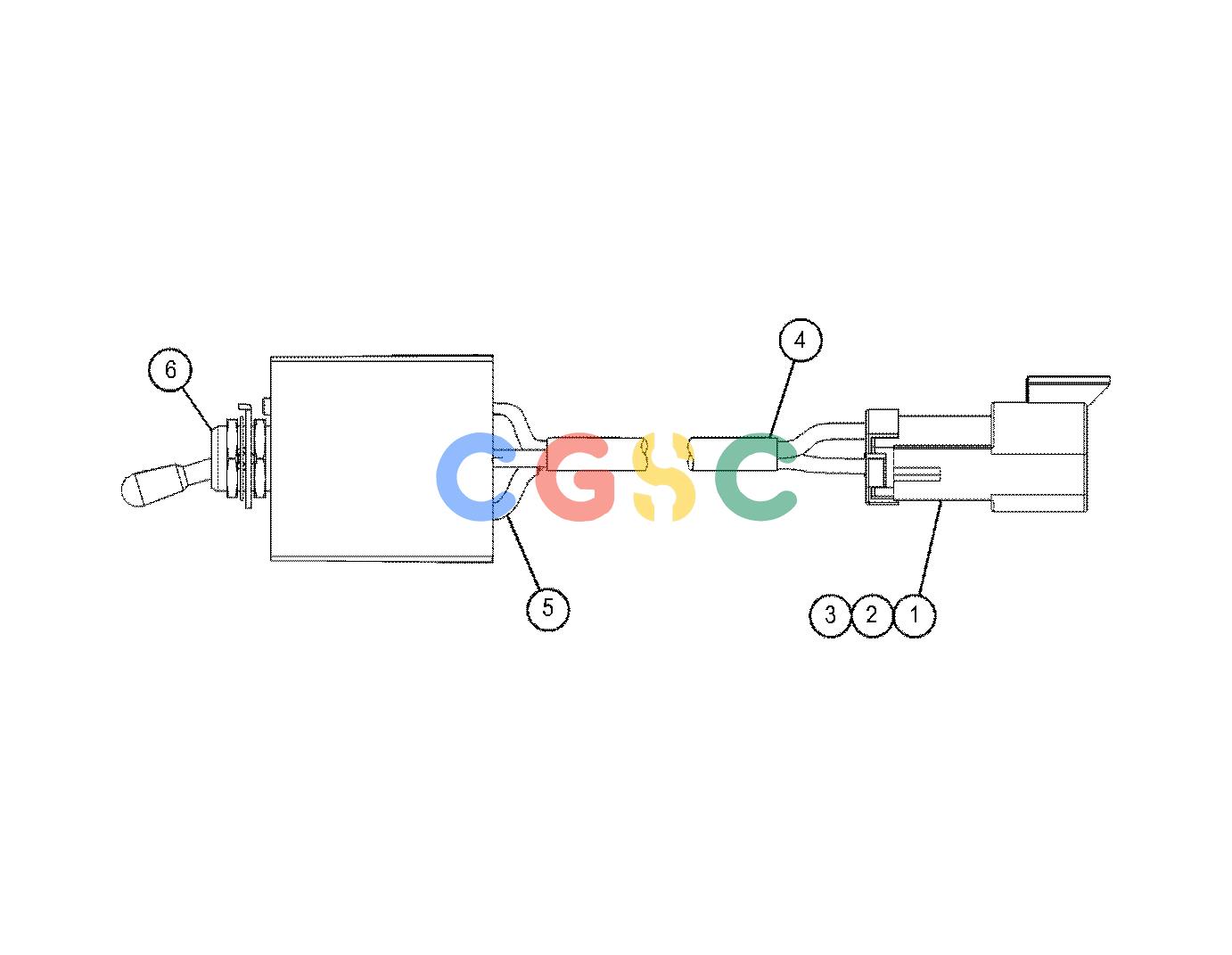

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 3E-3371 | [1] | WEDGE-RECEPTACLE LOCK(3-PIN) | |
| 3. | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 4. | 112-4550E | | SLEEVE(21-CM) | |
| 5. | 5P-5677BD | | WIRE(18-GA, BLACK) | |
| 6. | 271-2180 | [1] | SWITCH AS-TOGGLE(DOOR RELEASE, REMOTE) | |
| | 6T-3631 | [2] | NUT-HEX(15/32-32-THD) | |
| | 6T-3632 | [1] | LOCKWASHER | |
| | 6T-3633 | [1] | RING-LOCKING | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
