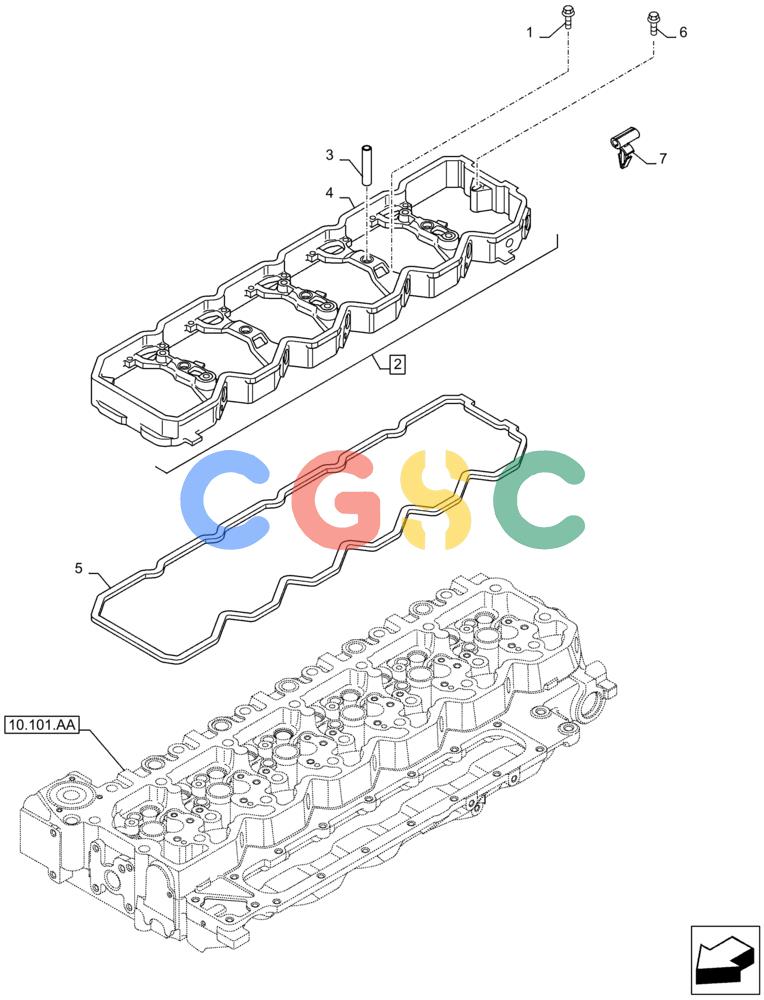

神钢零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (10.106.AO[02]) - ROCKER ARM, HOUSING & COVERS Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
849 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4895432 | [5] | SCREW,M8 x 1.25 x 70mm | TORM8 x 1.25 x 70 |
| 2. | 4899257 | [1] | HOUSING | TORASSY, Incl 3, 4 |
| 3. | 4899245 | [5] | SLEEVE,9mm ID x 13.9mm OD x 55.25mm L | TOR |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONHousing, Incl in 2 |
| 5. | 2853788 | [1] | GASKET,10.35mm Thk | TOR Superseded by part number: 504070040 |
| 6. | 4899089 | [2] | SCREW,Hex Flg, M8 x 1.25 x 50 | TORM8 x 1.25 x 50 |
| 7. | 2852428 | [6] | WIRE CLAMP,6mm ID | TOR Superseded by part number: 504066132 |
