神钢零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (10.218.AD) - FUEL FILTER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
599 次

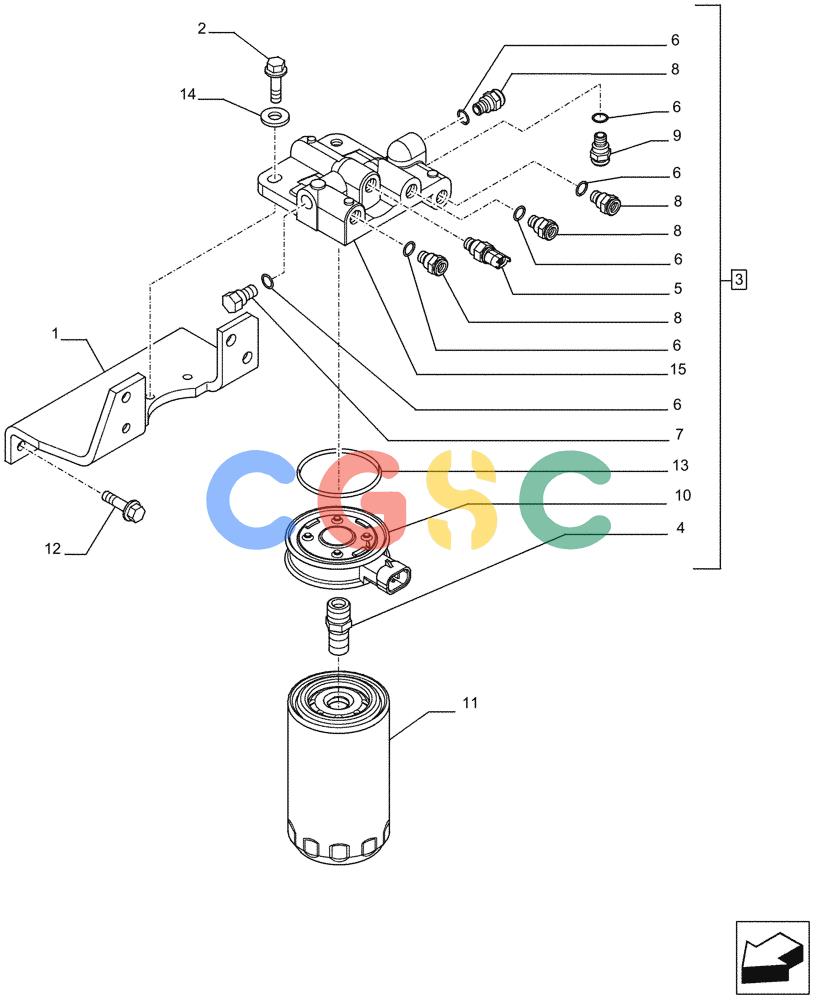

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852793 | [1] | BRACKET | TOR |
| 2. | 2830733 | [2] | SCREW | TORM8 x 25 |
| 3. | 2852436 | [1] | FILTER HEAD | TORASSY, Incl 4 - 10, 13, 15 Superseded by part number: 504033395 |
| 4. | 4898758 | [1] | ADAPTER | TOR |
| 5. | 4897224 | [1] | SENSOR | TORTemperature |
| 6. | 4894721 | [6] | SEALING WASHER,12.2mm ID x 17mm OD x 1.5mm Thk | TOR |
| 7. | 4893464 | [1] | PLUG | TOR |
| 8. | 4890964 | [4] | FITTING,M12 x 1.5 | TOR |
| 9. | 4896543 | [1] | FITTING | TOR |
| 10. | 4897838 | [1] | HEATER | TOR |
| 11. | 84412164 | [1] | FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns | FAR |
| 13. | 4898876 | [1] | O-RING,63.1mm ID x 3.53mm Width | TOR |
| 14. | 12647104 | [2] | WASHER,8.15mm ID x 20mm OD x 3mm Thk | BAS |
| 15. | NSS | [1] | NOT SOLD SEPARAT | CONFilter head, Incl in 2 |
