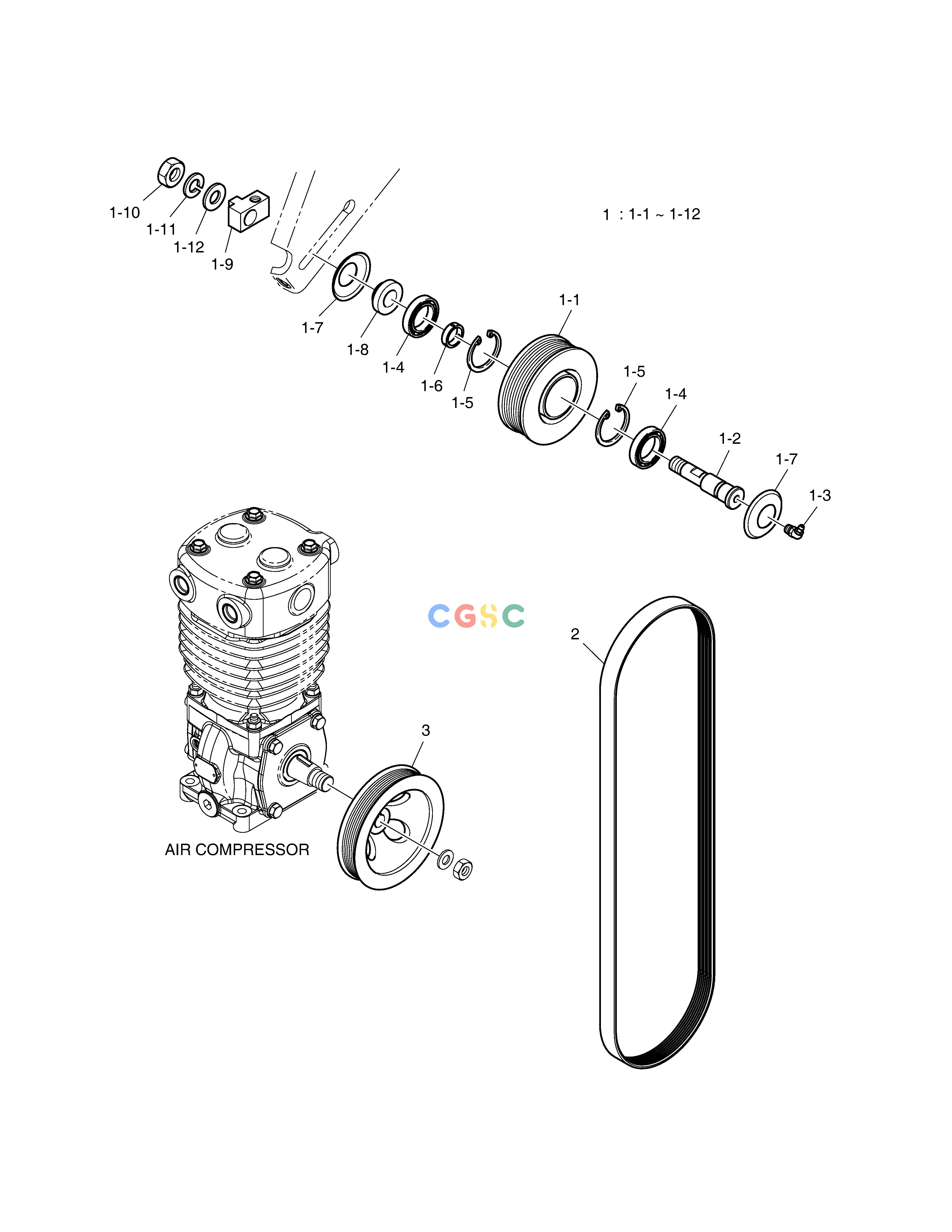

斗山零件查询AIR COMPRESSOR DRIVE SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.95800-6033A
|
[1] |
PULLEY ASSY,IDLE
|
|
| 1-1. |
65.95820-0030
|
[1] |
. PULLEY,IDLE
|
|
| 1-10. |
06.11063-9218
|
[1] |
NUT;HEX. M16X1.5
|
|
| 1-11. |
06.16731-2111
|
[1] |
WASHER;SPRING
|
|
| 1-12. |
06.15010-2316
|
[1] |
WASHER 17
|
|
| 1-2. |
65.91020-0018
|
[1] |
SHAFT;IDLE PULLEY ASSY
|
|
| 1-3. |
06.38013-0202
|
[1] |
NIPPLE,GREASE
|
|
| 1-4. |
06.31430-4512
|
[2] |
BEARING,BALL
|
|
| 1-5. |
06.29020-0128
|
[2] |
RING;SNAP
|
|
| 1-6. |
65.91701-0133
|
[1] |
SPACER;IDLE PVLLEY
|
|
| 1-7. |
65.91606-0003
|
[2] |
COVER
|
|
| 1-8. |
65.91701-0178
|
[1] |
SPACER;AIR COMPRESSOR IDLE PULLEY
|
|
| 1-9. |
65.98130-0045
|
[1] |
ADAPTER
|
|
| 2. |
65.96801-0145A
|
[1] |
BELT,V;V-RIBBED TYPE BELT
|
|
| 3. |
130707-00066
|
[1] |
PULLEY,BELT;DE08TIS
|
|
