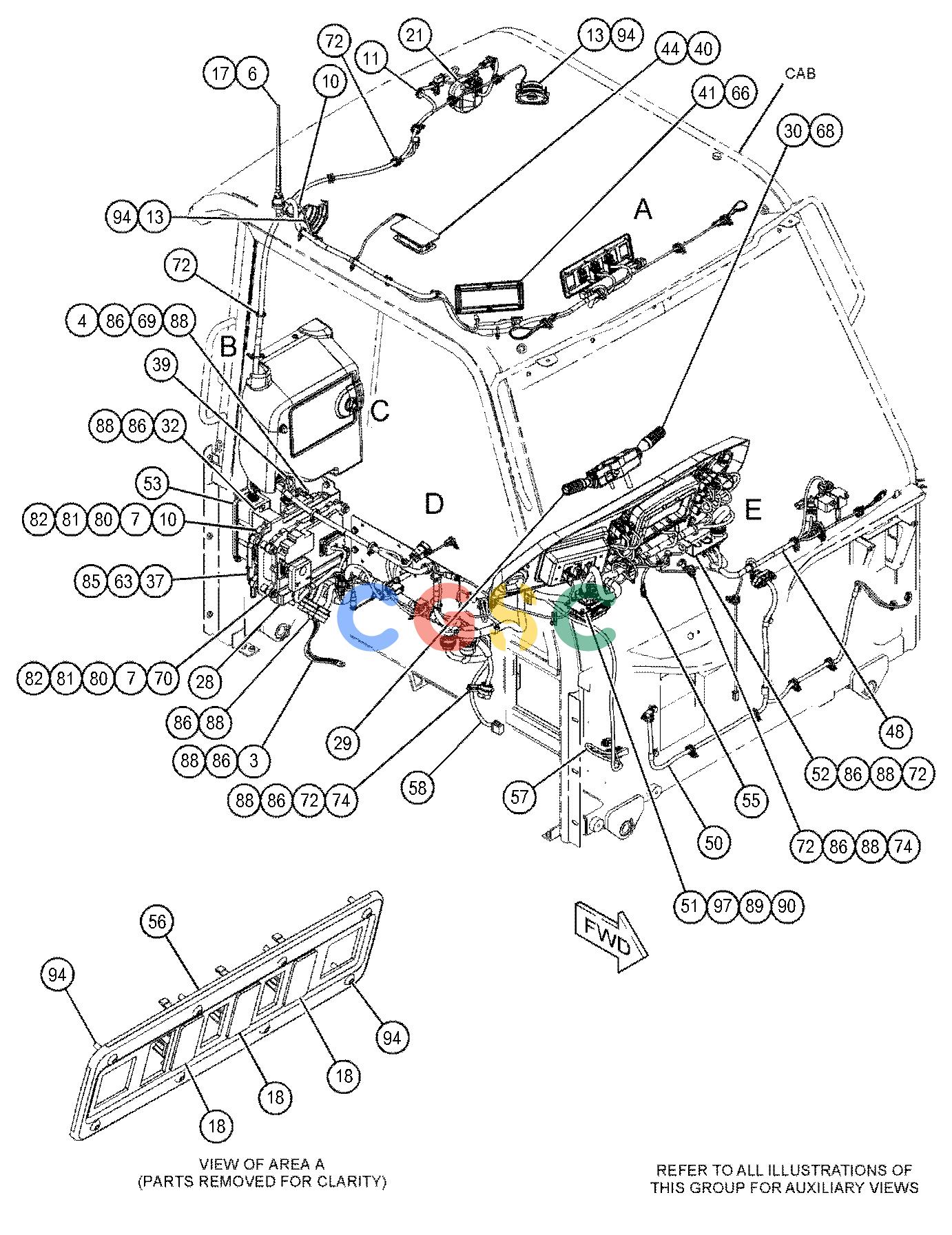

| 1. | 3E-5239 | [1] | RELAY AS(24-VOLT)(ALARM) | |
| 2. | 3E-6328Y | [1] | ALARM GP(24-VOLT) | |
| 3. | 7G-1060 | [1] | STRAP AS-GROUND | |
| 4. | 7K-1181 | [23] | STRAP-CABLE | |
| 5. | 8D-6946 | [1] | FLASHER AS(24-VOLT)(TURN SIGNAL) | |
| 6. | 8E-1118 | [1] | ANTENNA AS | |
| 7. | 8T-9655 | [16] | MOUNT-ISOLATION | |
| 8. | 9D-4068 | [1] | SWITCH AS-PUSH BUTTON(DOME LIGHT) | |
| 9. | 9X-2185 | [4] | SCREW(8-15X0.44-IN) | |
| 10. | 109-8981 | [1] | CABLE AS-COAXIAL | |
| 11. | 116-5710 | [1] | GROMMET | |
| 12. | 117-2311 | [1] | SOCKET-AUXILIARY POWER(12-VOLT) | |
| 13. | 124-6046 | [2] | SPEAKER AS-RADIO | |
| 14. | 128-6157 | [2] | PLATE | |
| 15. | 163-6088 | [1] | MODULE AS(INTERMITTENT WIPER) | |
| | 102-8803 | [1] | KIT-RECEPTACLE(3-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 8T-8729 | [3] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| 16. | 164-8473 | [2] | LOUVER AS | |
| 17. | 189-3744 | [1] | SEAL | |
| 18. | 241-4505 | [6] | PLUG | |
| 19. | 241-8368Y | [1] | SWITCH GP-MAGNETIC(24-VOLT)(MAIN RELAY) | |
| 20. | 255-2752Y | [1] | SWITCH GP-START(IGNITION)(IGNITION) | |
| 21. | 260-0162Y | [1] | LAMP GP-FLOOD(24-VOLT)(TOP, REAR) | |
| 22. | 267-5243 | [1] | PANEL AS | |
| | 271-7312 | [1] | KNOB | |
| | 285-7415 | [1] | KNOB | |
| 23. | 271-2818 | [1] | SWITCH AS-ROCKER(HEADLIGHTS) | |
| 24. | 271-2825 | [1] | SWITCH AS-ROCKER(AIR CONDITIONER) | |
| 25. | 271-2826 | [1] | SWITCH AS-ROCKER(WORK LIGHT) | |
| 26. | 271-2828 | [1] | SWITCH AS-ROCKER(HAZARD) | |
| 27. | 271-2830 | [1] | SWITCH AS-ROCKER(SECONDARY STEERING) | |
| 28. | 288-1401 | [1] | BRACKET | |
| 29. | 299-9240 | [1] | SWITCH AS-MULTIFUNCTION(HD LIGHT, TURN SIG, WDO WIPER) | |
| | 8T-8729 | [12] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 174-3091 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 30. | 299-9241 | [1] | SWITCH AS-MULTIFUNCTION(RETARDER LEVER) | |
| | 8T-8729 | [4] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 151-9275 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 31. | 320-9715 | [1] | CABLE AS(CAMERA) | |
| 32. | 329-2477 | [1] | PLATE AS | |
| | 5C-9855M | [8] | BOSS(M8X1.25X19-MM) | |
| 33. | 331-2887 | [1] | SWITCH AS-ROCKER(HEADLIGHT DIMMER) | |
| 34. | 334-7785 | [1] | SWITCH AS-ROCKER(HOOD RELEASE) | |
| | | | (EACH SWITCH AS INCLUDES) |
| | 111-7899 | [1] | GASKET | |
| 35. | 336-6687 | [1] | CAP-PROTECTIVE(FEMALE) | |
| 36. | 466-7905 | [1] | DISPLAY GP-MONITOR(CMPD) | |
| 37. | 340-7161 | [1] | CONVERTER-POWER(24-VOLT TO 12-VOLT) | |
| 38. | 340-7389 | [1] | PANEL AS-INSTRUMENT | |
| 39. | 346-8101Y | [1] | HARNESS AS-TRANSMISSION(OUTPUT SPEED) | |
| 40. | 347-0794 | [1] | LAMP GP-DOME(24-VOLT)(TOP, RH) | |
| 41. | 347-9507 | [1] | BEZEL-RADIO | |
| 42. | 354-0738 | [1] | PLATE AS | |
| | 6V-9632M | [6] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| 43. | 354-7732 | [1] | WIRE AS | |
| 44. | 358-8802 | [1] | INSULATION | |
| 45. | 363-7677 | [1] | DOOR GP-ACCESS(FUSE PANEL) | |
| | 3H-0240 | [7] | WASHER(5X9.7X0.8-MM THK) | |
| | 9M-5733 | [7] | RIVET-POP | |
| | 302-4764 | [1] | LATCH AS | |
| | 344-2588 | [1] | HINGE AS | |
| 46. | 367-5213 | [1] | SWITCH AS-ROCKER(24-VOLT) | |
| 47. | 373-3657 | [1] | PLATE AS | |
| | 6V-9632M | [8] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [3] | LINK | |
| | 7X-0750M | [1] | BOSS-WELD(M10X1.5X55-MM) | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| 48. | 382-7576Y | [1] | HARNESS AS-CAB(BULKHEAD) | |
| 49. | 382-7577Y | [1] | HARNESS AS-CAB(SEAT) | |
| 50. | 382-7578Y | [1] | HARNESS AS-WINDOW WIPER | |
| 51. | 392-8997 | [1] | BRACKET | |
| 52. | 396-1169 | [1] | PLATE-MOUNTING | |
| 53. | 444-9686Y | [1] | WIRING GP-PAYLOAD CONTROL | |
| 54. | 448-6951 | [1] | CABLE AS | |
| 55. | 455-3049Y | [1] | HARNESS AS-CAB(DASH PANEL) | |
| 56. | 466-2495 | [1] | BEZEL | |
| 57. | 487-0460Y | [1] | HARNESS AS-CAB(UPPER CAB) | |
| 58. | 493-2534Y | [1] | HARNESS AS-CAB(MAIN CAB) | |
| 59. | 114-6658 | [2] | WASHER(6.5X17X1-MM THK) | |
| 60. | 104-2091 | [8] | SCREW-FLAT HEAD(6-20X0.5-IN) | |
| 61. | 124-0174 | [1] | CLIP(LOOP) | |
| 62. | 132-5789 | [1] | CLIP(LADDER) | |
| 63. | 161-6987 | [2] | WASHER-HARD(5.2X16X1.5-MM THK) | |
| 64. | 174-8131M | [4] | SCREW-TRUSS HEAD(M4X0.7X12-MM) | |
| 65. | 195-9223 | [4] | SCREW-PAN HEAD(10-14X0.63-IN) | |
| 66. | 213-7315M | [6] | SCREW-TRUSS HEAD(M4X0.7X25-MM) | |
| 67. | 271-9408M | [4] | SCREW-TRUSS HEAD(M5X0.8X10-MM) | |
| 68. | 298-6434M | [2] | SCREW(M5X0.8X12-MM) | |
| 69. | 352-3968 | [2] | CLIP(LADDER) | |
| 70. | 365-6773 | [2] | CONTROL GP-UNPROGRAMMED(ELECTRONIC) | |
| 71. | 3E-8020M | [6] | SCREW-TRUSS HEAD(M6X1X25-MM) | |
| 72. | 3S-2093 | [82] | STRAP-CABLE | |
| 73. | 3S-9557 | [8] | SCREW-PAN HEAD(4-40X0.5-IN) | |
| 74. | 4P-7581 | [7] | CLIP(LADDER) | |
| 75. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 76. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 77. | 5P-8525 | [1] | GROMMET | |
| 78. | 5P-9297 | [2] | CLIP(LOOP) | |
| 79. | 6D-3479 | [2] | CLIP(LOOP) | |
| 80. | 6I-1418 | [8] | SPACER(8.2X12.7X28.7-MM THK) | |
| 81. | 7X-0579 | [8] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| 82. | 7X-0818M | [8] | BOLT(M8X1.25X45-MM) | |
| 83. | 7X-2533M | [2] | BOLT(M6X1X35-MM) | |
| 84. | 8M-2770 | [1] | CLIP(LOOP) | |
| 85. | 8T-0289M | [2] | BOLT(M5X0.8X20-MM) | |
| 86. | 8T-4121 | [22] | WASHER-HARD(11X21X2.5-MM THK) | |
| 87. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| 88. | 8T-4137M | [22] | BOLT(M10X1.5X20-MM) | |
| 89. | 8T-4138M | [4] | BOLT(M6X1X20-MM) | |
| 90. | 8T-4171M | [4] | BOLT(M6X1X12-MM) | |
| 91. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 92. | 8T-4970M | [2] | BOLT(M6X1X14-MM) | |
| 93. | 9W-0335 | [1] | LIGHTER AS-CIGAR(24-VOLT) | |
| 94. | 9X-1046M | [16] | SCREW(M4X0.7X18-MM) | |
| 95. | 9X-2042M | [4] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 96. | 9X-2045M | [4] | SCREW-TRUSS HEAD(M6X1X20-MM) | |
| 97. | 9X-8256 | [7] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
