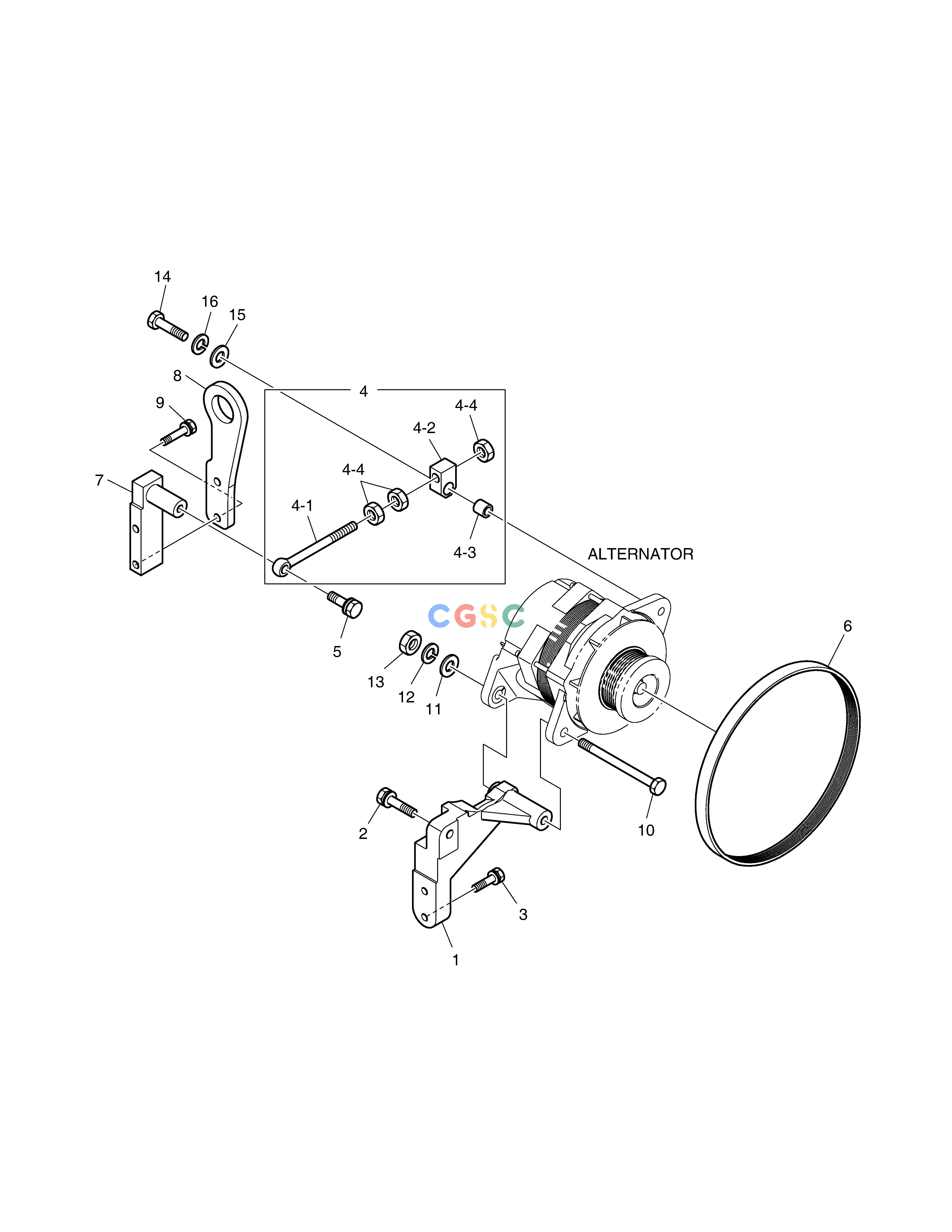

斗山零件查询ALTERNATOR MOUNTING SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
959 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.19102-0084A
|
[1] |
BRACKET;ALTERNATOR MOUNTING
|
|
| 10. |
65.90001-0002A
|
[1] |
BOLT,HEX
|
|
| 11. |
06.15010-2313
|
[1] |
WASHER;PLAIN
|
|
| 12. |
06.16731-2109
|
[1] |
WASHER;SPRING A12
|
|
| 13. |
06.11063-9216
|
[1] |
NUT;HEX. M12X1.5
|
|
| 14. |
65.90001-0008
|
[1] |
BOLT,HEX;ALTERNATOR
|
|
| 15. |
06.15010-2313
|
[1] |
WASHER;PLAIN
|
|
| 16. |
06.16731-2109
|
[1] |
WASHER;SPRING A12
|
|
| 2. |
06.01914-3320
|
[1] |
BOLT ASS'Y M12X45
|
|
| 3. |
06.01914-3219
|
[2] |
BOLT ASS`Y M10
|
|
| 4. |
65.19103-6010A
|
[1] |
EYE BOLT ASS`Y
|
|
| 4-1. |
65.90441-0009A
|
[1] |
. EYE BOLT
|
|
| 4-2. |
65.19107-0001A
|
[1] |
. PIECE;GUIDE
|
|
| 4-3. |
65.93020-0055
|
[1] |
. BUSH
|
|
| 4-4. |
06.11063-9217
|
[3] |
. NUT
|
|
| 5. |
06.01943-3319
|
[1] |
BOLT ASS`Y M12X1.5X40
|
|
| 6. |
130205-00426
|
[1] |
BELT,V
|
|
| 7. |
65.19103-5040
|
[1] |
SUPPORT;ALTERNATOR
|
|
| 8. |
250117-00123
|
[1] |
PLATE,CLAMPING
|
|
| 9. |
06.01913-3224
|
[2] |
BOLT;HEX. M10X1.5X65
|
|
