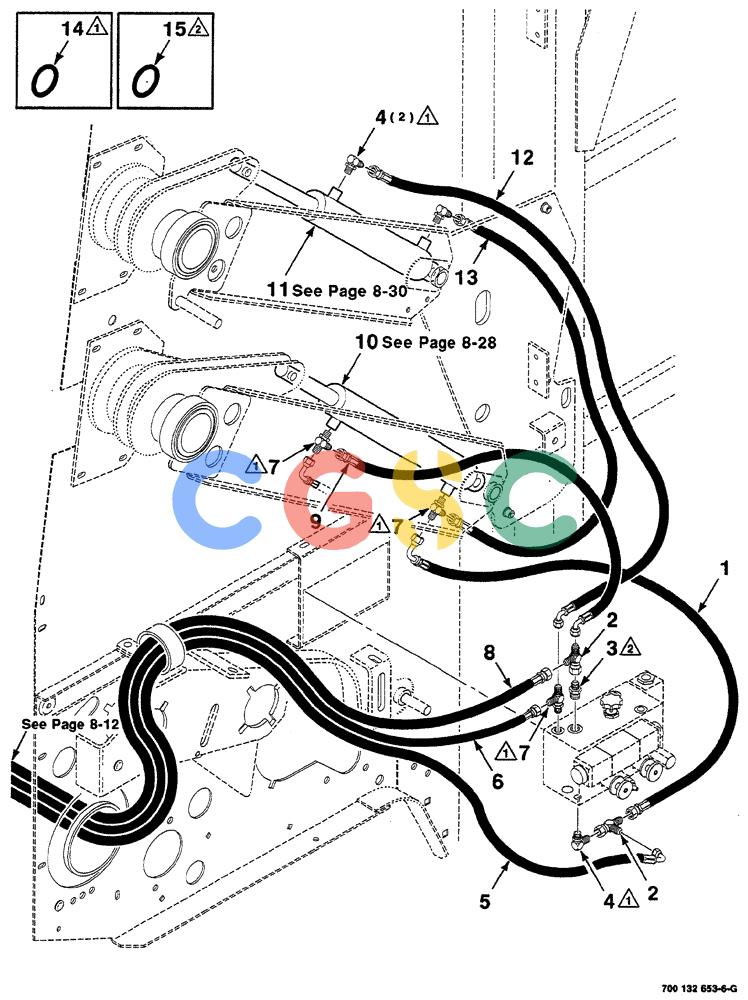

凯斯零件查询(RS561A) - CASE IH ROUND BALER (1/99-12/00) (8-010) - HYDRAULIC CONTROL ASSEMBLY, LEFT, BALE TENSION Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
188 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700719105
|
[1] |
HOSE
|
HFI
hydraulic
|
| 2. |
218-5222
|
[2] |
TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run
|
CAS
Superseded by part number: 72186135, 129274
|
| 3. |
218-5058
|
[1] |
HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB
|
CAS
straight, includes: REF. 15 Superseded by part number: 128817, 72186139
|
| 4. |
218-5105
|
[3] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: Ref. 14 Superseded by part number: 76344, 72186128
|
| 5. |
700714809
|
[1] |
HOSE
|
CAS
hydraulic
|
| 6. |
700719094
|
[1] |
HYDRAULIC HOSE,0.25" ID x 161.42", SAE J516, SAE J343
|
HFI
hydraulic
|
| 7. |
218-5243
|
[3] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: Ref. 14 Superseded by part number: 86513020
|
| 8. |
700719100
|
[1] |
HYDRAULIC HOSE,0.38" ID x 110.24", SAE J516, SAE J343
|
HFI
hydraulic
|
| 9. |
700719110
|
[1] |
HOSE
|
HFI
hydraulic
|
| 10. |
700719621
|
[1] |
CYLINDER
|
HFI
ASSY. hydraulic
|
| 11. |
700714707
|
[1] |
CYLINDER
|
CAS
ASSY. hydraulic
|
| 12. |
700716085
|
[1] |
HOSE
|
CAS
hydraulic
|
| 13. |
700714806
|
[1] |
HYDRAULIC HOSE,0.25" ID x 39.37", SAE J517, SAE J516, SAE J343
|
CAS
hydraulic
|
| 14. |
738468
|
[1] |
O-RING
|
IH
9/16"
|
| 15. |
237-6008
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
3/4" Superseded by part number: 128825
|
