纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (04-21) - HARNESS, LAMP - CAB New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
992 次

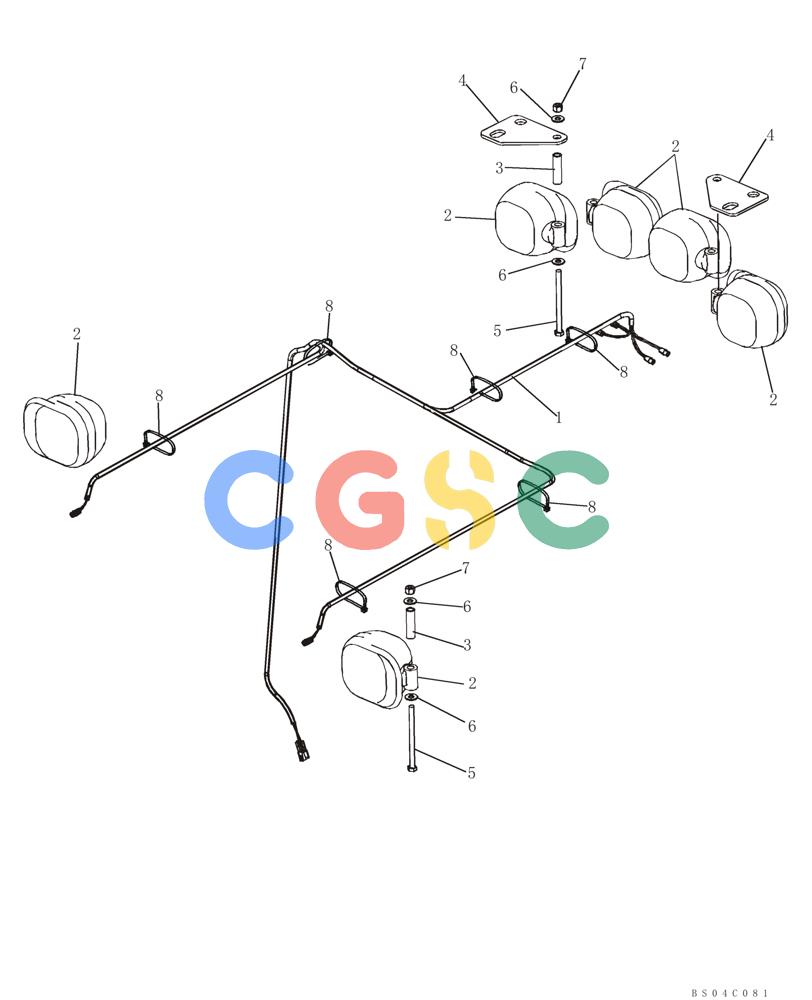

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87438394 | [1] | WIRE HARNESS | BURLamps; Cab Front and Rear Work and Flood Lamps |
| 2. | 85819200 | [6] | WORK LAMP,Halogen, 12V, 55W, Clear | IMOIncludes H3 12V 55W Bulb, Order 9703399 For Bulb; Component Parts Not Available At Time of Printing; Front and Rear Flood and Work Lamps; See Figure 09-25 For Lamp Mounting Bracket That Attaches To Cab |
| 3. | 86982027 | [6] | SPACER | IMO |
| 4. | 87434647 | [2] | BRACKET | BURMounting, Front Outer Lamps Only; Models With Brush Guard Only |
| 5. | 814-8110 | [6] | BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8 | CASM8 x 110 Superseded by part number: 16045421 |
| 6. | 895-15008 | [22-24] | WASHER,M8 x 20 x 1.6 | CAS Superseded by part number: 86625263 |
| 7. | 832-10408 | [4-6] | NUT,M8 x 1.25, Cl 8 | CAS Superseded by part number: 86528579 |
| 8. | L18331 | [6] | CABLE TIE,375.9mm L | CAS Superseded by part number: 529070 |
