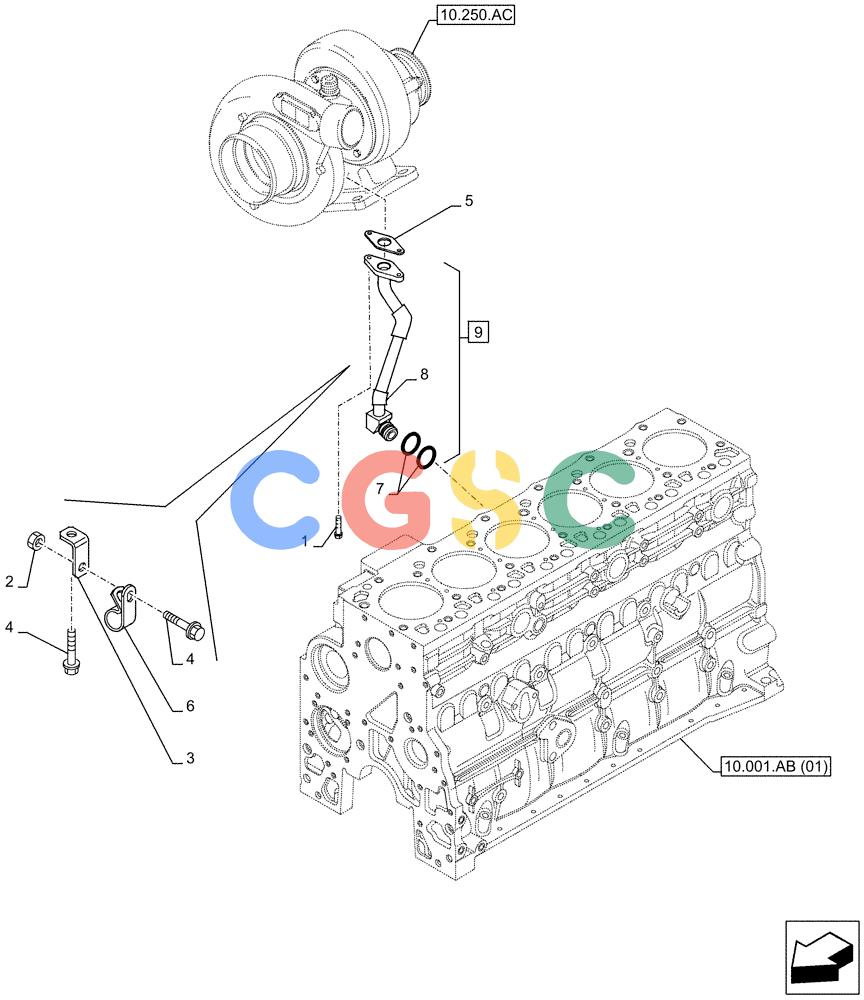

神钢零件查询(F4HFE6132 A003) - ENGINE 5801753676 - 47541755 (1/14-) (10.250.AE) - TURBOCHARGER, RETURN, LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
414 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 16586224 | [2] | SCREW,Hex Flg, M8 x 1.25 x 16mm, Cl 8.8 | TORM8 x 1.25 x 25 Superseded by part number: 16586225 |
| 2. | 2852389 | [1] | FLANGE NUT | TORM8 x 1.25 Superseded by part number: 17044725 |
| 3. | 2852390 | [1] | BRACKET | TOR Superseded by part number: 98459285 |
| 4. | 2852100 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 16mm | TORM8 x 1.25 x 16 Superseded by part number: 16586225 |
| 5. | 4891288 | [1] | GASKET,0.8mm Thk | TOR |
| 6. | 4896893 | [1] | CLAMP,20mm W | TOR |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONPipe, Incl in 9 |
