斗山零件查询CONNECTING ROD SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
246 次

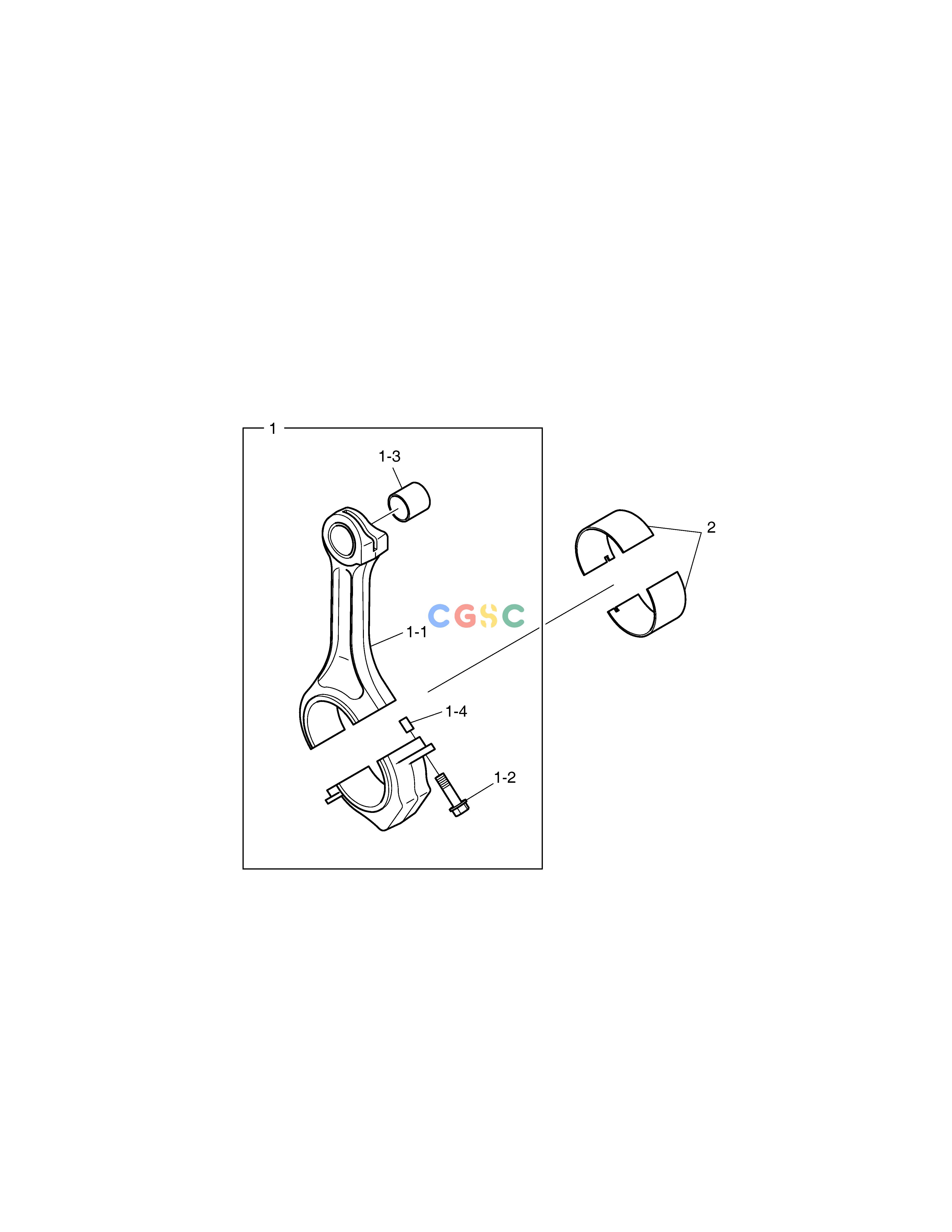

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.02401-6018C
|
[6] |
CONNECTING ROD ASS`Y
|
|
| 1-1. |
65.02401-0005A
|
[1] |
ROD;CONNECTING
|
|
| 1-2. |
65.90020-0009D
|
[2] |
BOLT;CONNECTING ROD
|
|
| 1-3. |
65.02405-0010
|
[1] |
BUSH;CONNECTING ROD
|
|
| 1-4. |
65.91301-0010
|
[2] |
PIN;DOWEL
|
|
| 2. |
65.02410-0010
|
[6] |
METAL;CONNECTING ROD(STD)
|
|
| 2. |
65.02410-0011
|
[1] |
METAL;CONNECTING ROD 0.25
|
|
| 2. |
65.02410-0012
|
[1] |
METAL;CONNECTING ROD 0.5
|
|
| 2. |
65.02410-0013
|
[1] |
METAL;CONNECTING ROD 0.75
|
|
| 2. |
65.02410-0014
|
[1] |
METAL;CONNECTING ROD 1.00
|
|
