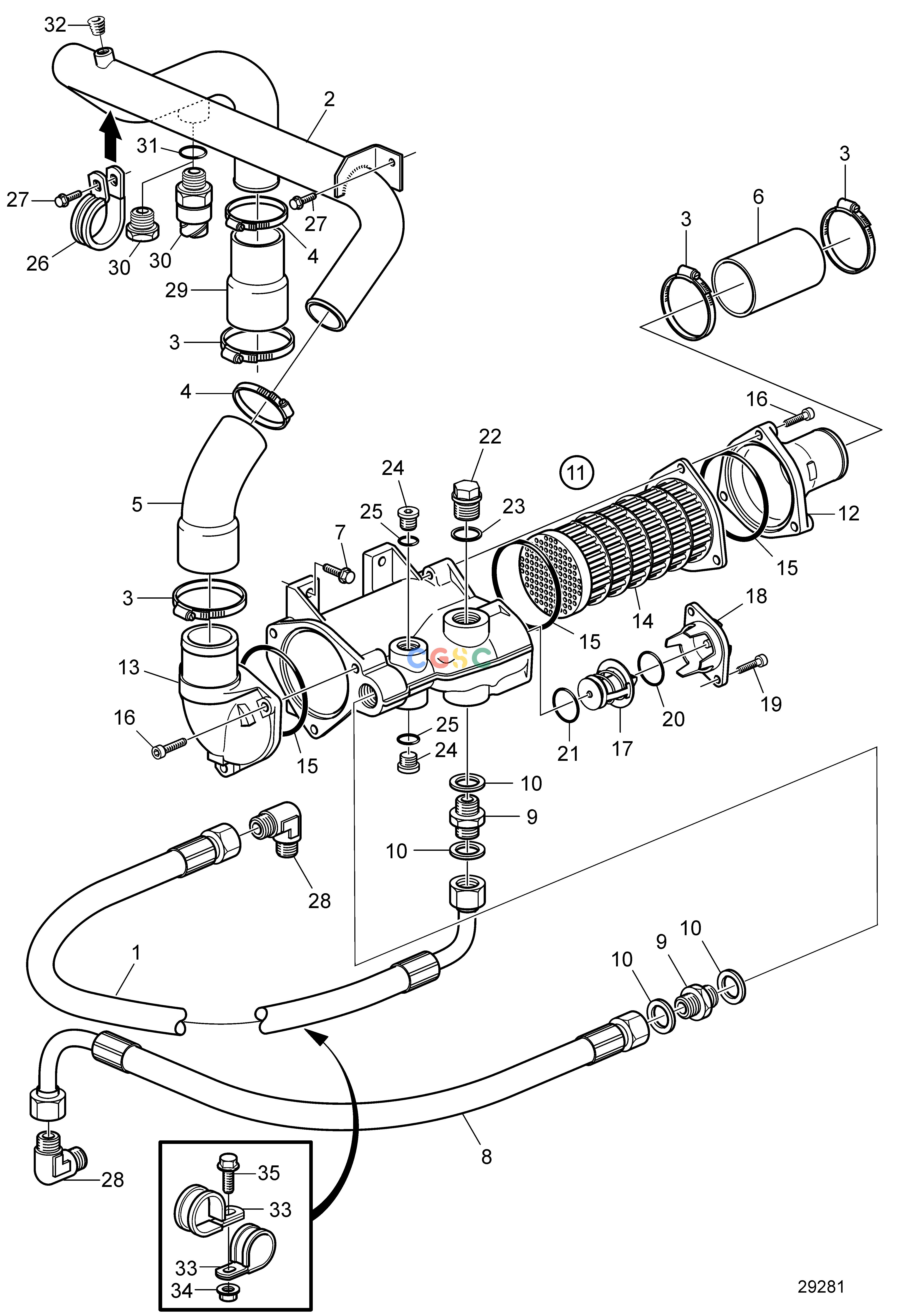

沃尔沃零件查询D9A2A; D9A2A D9-425; D9A2A D9-500; D9A2A D9-500 (R4); D9A2A D9-575; D9A2B D9-425; D9A2B D9-500 (R5); D9A2B D9-575; D9A2C D9-425; D9A2D D9Cooling SystemOil Cooler for Twin Disc MG5114SC, MG5114DCEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
493 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3588028
|
[1] |
Hose
|
L=1150mm
|
| 2. |
3843145
|
[1] |
Coolant pipe
|
|
| 3. |
961672
|
[4] |
Hose clamp
|
|
| 4. |
961671
|
[2] |
Hose clamp
|
|
| 5. |
3812324
|
[1] |
Rubber hose
|
|
| 6. |
984968
|
[1] |
Rubber hose
|
|
| 7. |
984735
|
[4] |
Flange screw
|
|
| 8. |
3588801
|
[1] |
Hose
|
L=570mm
|
| 9. |
984670
|
[2] |
Nipple
|
|
| 10. |
977937
|
[4] |
Gasket
|
|
| 11. |
3808061
|
[1] |
Oil cooler
|
|
| 12. |
3817251
|
[1] |
End cover
|
|
| 13. |
3817250
|
[1] |
Cover
|
|
| 14. |
3817249
|
[1] |
Insert
|
|
| 15. |
3581070
|
[3] |
O-ring
|
|
| 16. |
3838337
|
[8] |
Screw
|
|
| 17. |
3817248
|
[1] |
Thermostat
|
|
| 18. |
888622
|
[1] |
Cover
|
(3817247)
|
| 19. |
|
|
|
|
| 20. |
3583830
|
[1] |
O-ring
|
|
| 21. |
3586514
|
[1] |
O-ring
|
|
| 22. |
3817245
|
[1] |
Plug
|
|
| 23. |
3817240
|
[1] |
Gasket
|
|
| 24. |
968610
|
[2] |
Plug
|
|
| 25. |
968559
|
[2] |
O-ring
|
|
| 26. |
947457
|
[1] |
Clamp
|
|
| 27. |
967949
|
[2] |
Flange screw
|
|
| 28. |
3817365
|
[2] |
Nipple
|
|
| 29. |
3837438
|
[1] |
Collar
|
|
| 30. |
22052384
|
[1] |
Pressure sensor
|
|
| 30. |
982293
|
[1] |
Plug
|
|
| 31. |
11998
|
[1] |
Gasket
|
|
| 32. |
981749
|
[1] |
Plug
|
|
| 33. |
952632
|
[2] |
Clamp
|
|
| 34. |
990949
|
[1] |
Flange lock nut
|
|
| 35. |
984725
|
[1] |
Flange screw
|
|
