纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (08-04) - VALVE ASSEMBLY, THERMAL BYPASS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
965 次

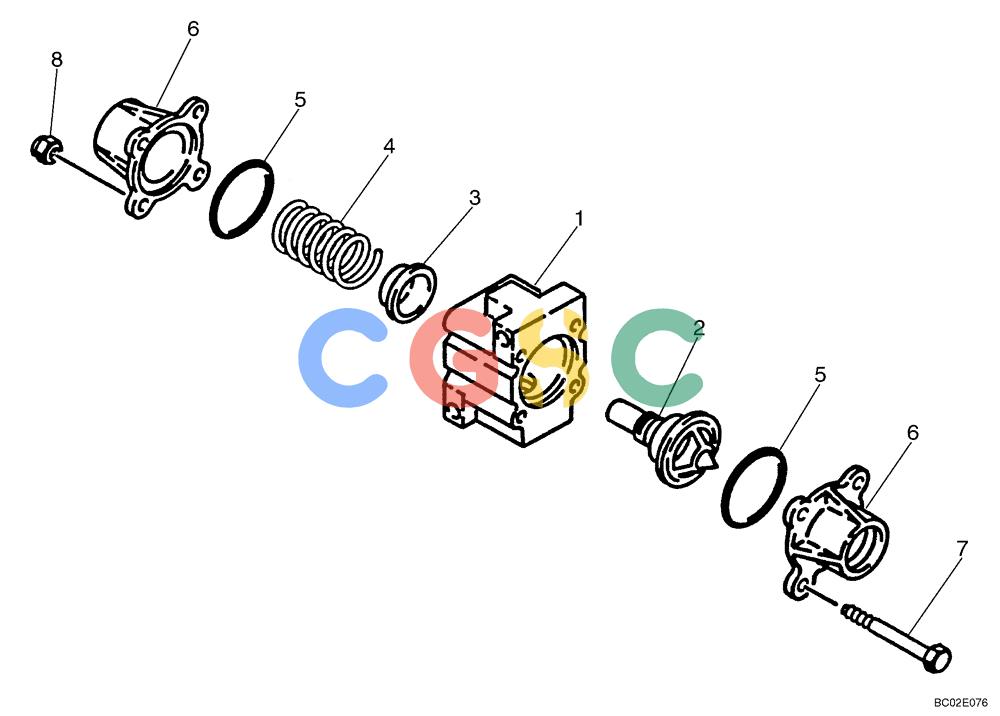

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | R46908 | [1] | VALVE | CASThermal Bypass; Incl. Ref 1 - 8 |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CONBody |
| 2. | N14569 | [1] | THERMOSTAT | CASThermostat |
| 3. | A48899 | [1] | SEAL | CASWith Retainer |
| 4. | N14570 | [1] | SPRING | CAS |
| 5. | 238-5034 | [2] | O-RING,2.114" ID x 2.254" OD x 0.07" | CAS Superseded by part number: 14455180 |
| 6. | A48967 | [2] | CAP | CAS |
| 7. | 413-452 | [4] | BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5 | CAS Superseded by part number: 80280390 |
| 8. | 131-461 | [4] | LOCK NUT,1/4"-20 | CAS |
