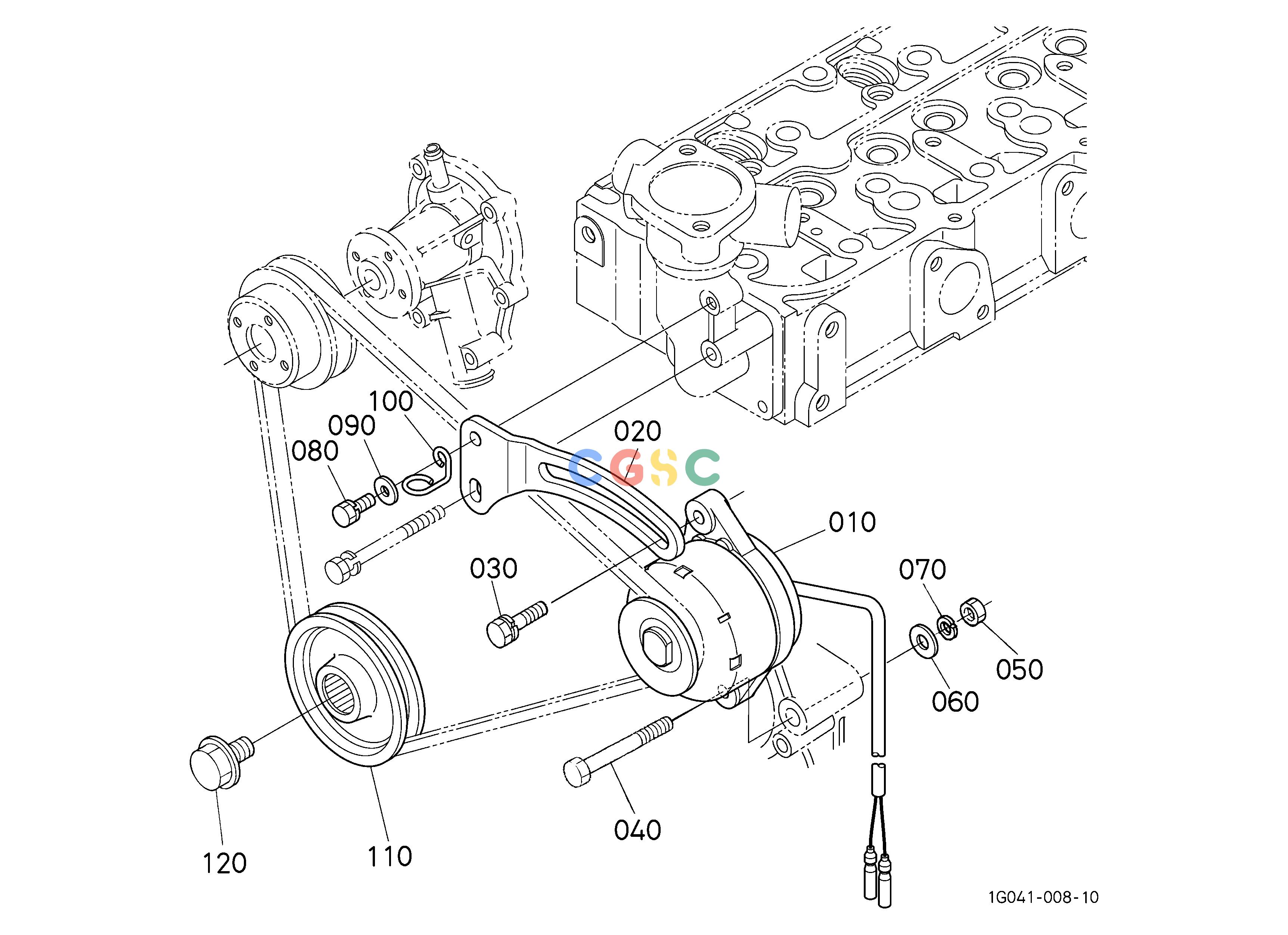

久保田零件查询040000 DYNAMO AND PULLEY ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
343 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6A83059250
|
[1] |
ASSY DYNAMO
|
2.8600(lbs); 1.300
|
| 020. |
1622564422
|
[1] |
STAY,DYNAMO
|
0.1980(lbs); 0.090
|
| 030. |
0112750830
|
[1] |
BOLT,W SEMS(LARGE WASHER)
|
0.0506(lbs); 0.023
|
| 040. |
0115350860
|
[1] |
HEX.BOLT
|
0.0528(lbs); 0.024
|
| 050. |
0211250080
|
[1] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 060. |
0401250080
|
[1] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0451250080
|
[1] |
WASHER,SPRING LOCK
|
0.0044(lbs); 0.002
|
| 080. |
0102350618
|
[1] |
BOLT,SEMS
|
0.0132(lbs); 0.006
|
| 090. |
0401250060
|
[1] |
WASHER,PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
1627183370
|
[1] |
CLAMP,CORD
|
0.0110(lbs); 0.005
|
| 110. |
1626174280
|
[1] |
PULLEY,FAN DRIVE
|
2.2000(lbs); 1.000
|
| 120. |
1624191020
|
[1] |
BOLT(FAN DRIVE)
|
0.2200(lbs); 0.100
|
