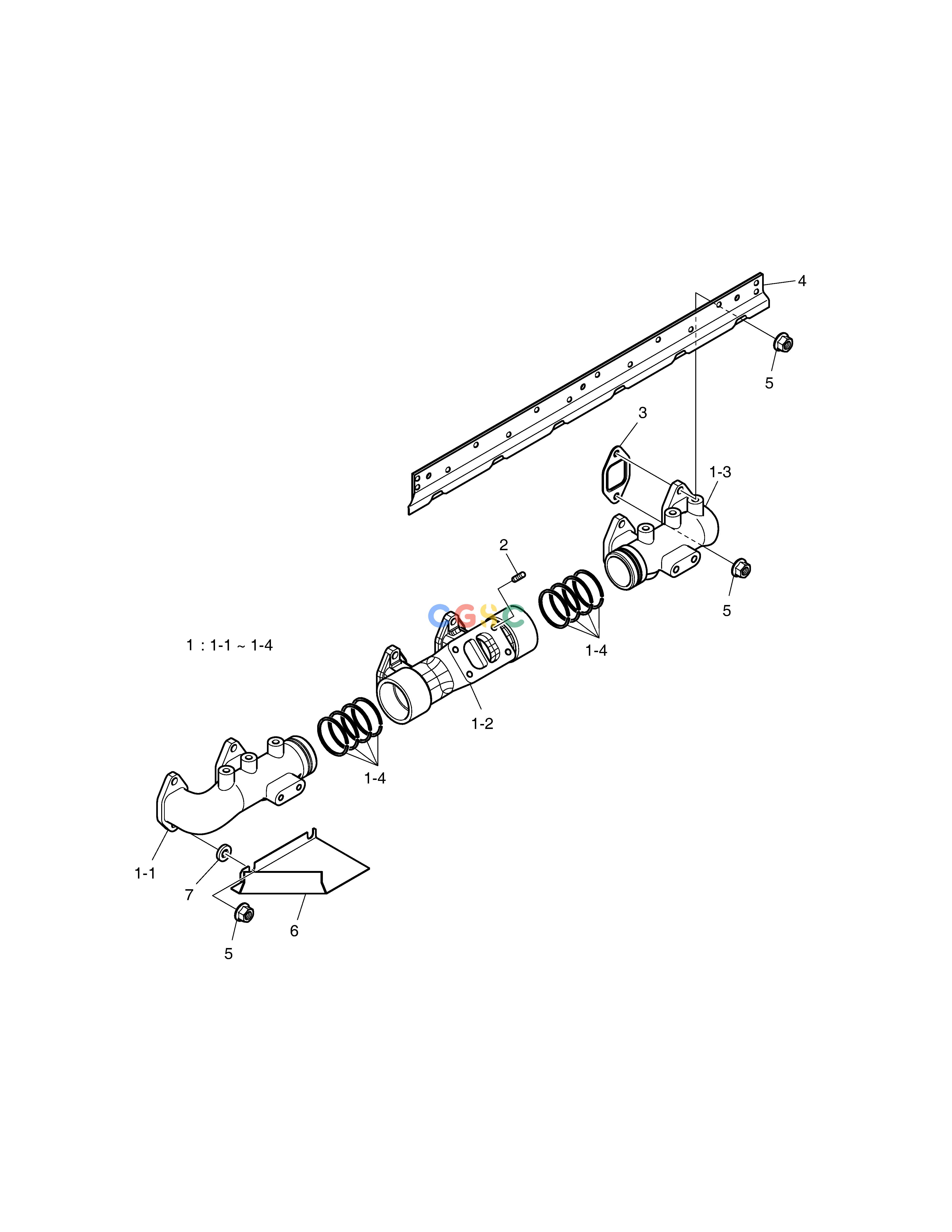

斗山零件查询EXHAUST MANIFOLD SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
525 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
240102-00331
|
[1] |
MANIFOLD ASSY,EXHAUST
|
|
| 1-1. |
240102-00329
|
[1] |
. MANIFOLD,EXHAUST
|
|
| 1-2. |
240102-00328
|
[1] |
. MANIFOLD,EXHAUST
|
|
| 1-3. |
240102-00330
|
[1] |
. MANIFOLD,EXHAUST
|
|
| 1-4. |
65.96501-0007
|
[8] |
RING;SEAL
|
|
| 2. |
65.90201-0073
|
[4] |
. BOLT;STUD
|
|
| 3. |
65.08901A0013
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 4. |
111002-00001
|
[1] |
SCREEN;HEAT
|
|
| 5. |
65.90535-0001
|
[12] |
NUT
|
|
| 6. |
65.08120-0017
|
[1] |
SCREEN;HEAT
|
|
| 7. |
65.90710-0019
|
[1] |
WASHER
|
|
