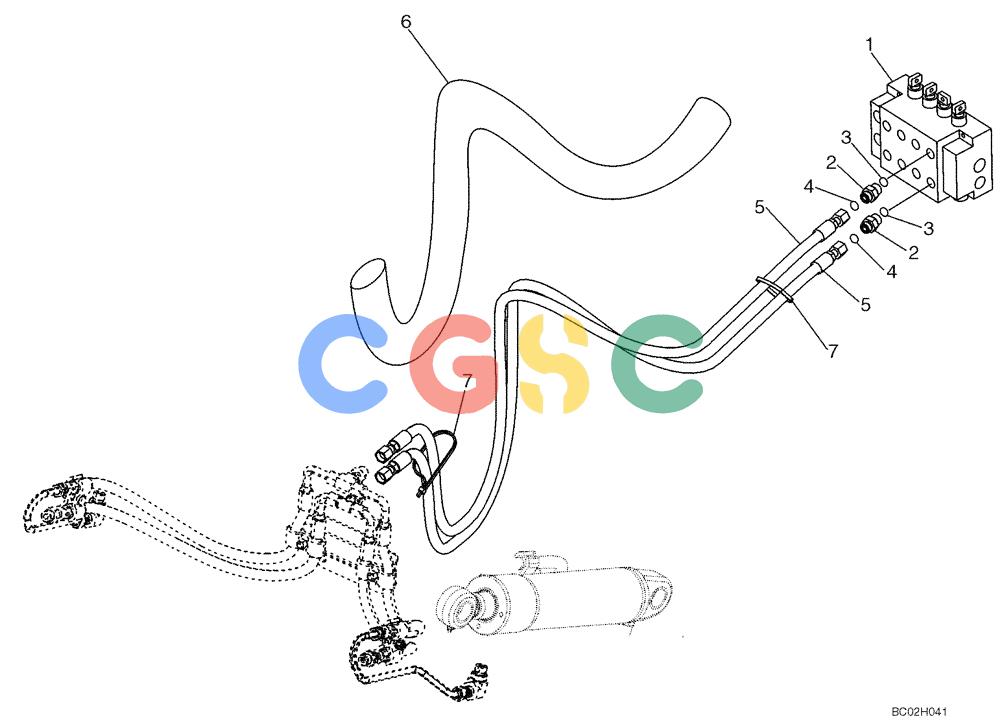

纽荷兰零件查询(DC85) - CRAWLER DOZER (8/04-) (08-09) - HYDRAULICS - RIPPER, VALVE TO REAR OF TRACTOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
498 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 418230A2 | [1] | HYDRAULIC VALVE | BURFour Spool Control Valve; See Figure 08-18 Superseded by part number: 47668026 |
| 2. | 201-112 | [2] | HYD CONNECTOR,13/16"-16 ORFS x 7/8"-14 ORB | CAS1/2 ORFS x 5/8 ORB; Incl. 3, 4 Superseded by part number: 73338799 |
| 3. | 237-6014 | [1] | O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro | CASBoss End Superseded by part number: 70921886 |
| 4. | 238-6014 | [1] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | CASFace Seal End Superseded by part number: 9992298 |
| 5. | 87406312 | [2] | HOSE ASSY. | BUR1850 mm lg; 4th Spool Supply; Control Valve to Rear of Tractor |
| 6. | 87409050 | [1] | SLEEVE | BUR |
| 7. | L18331 | [4] | CABLE TIE,375.9mm L | CAS15" Superseded by part number: 529070 |
