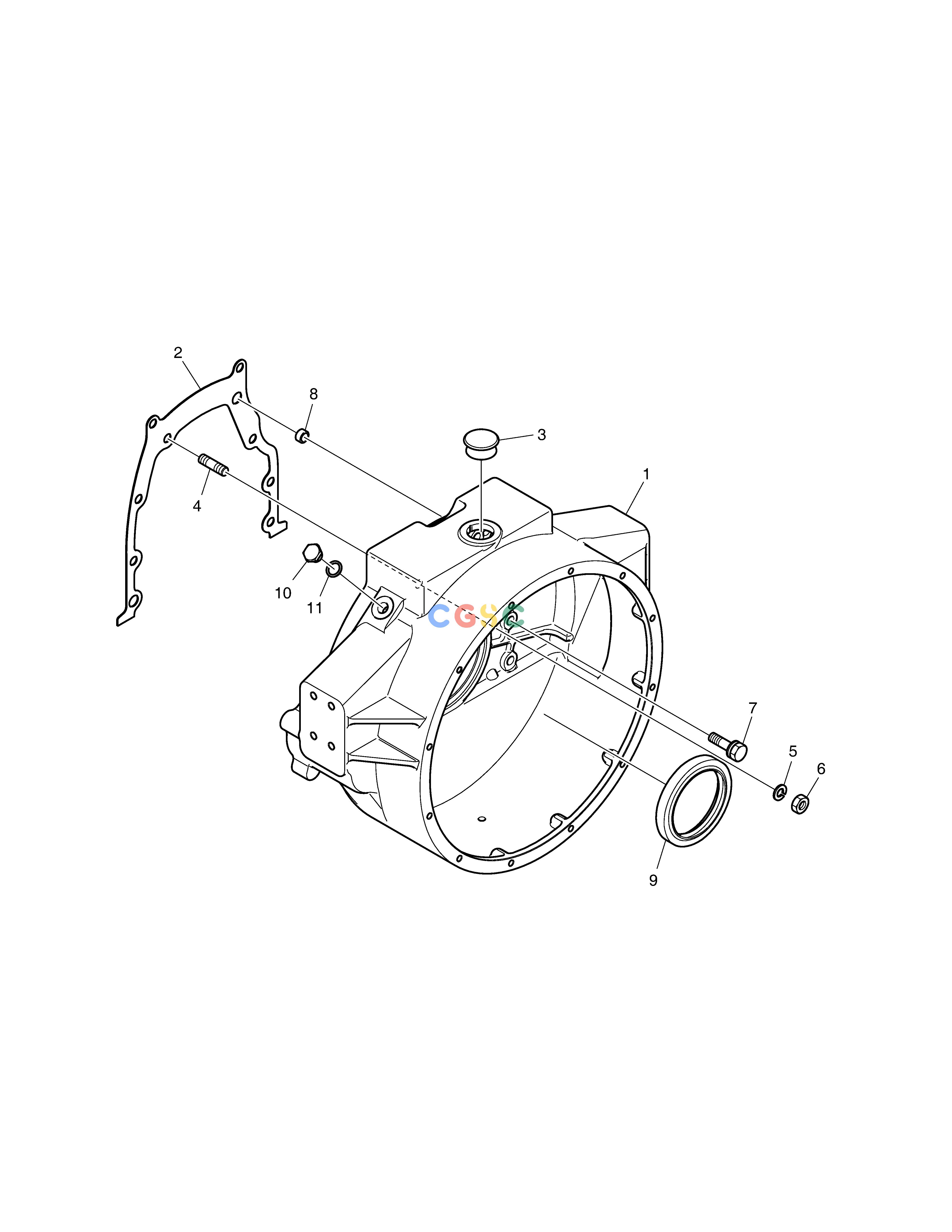

斗山零件查询FLYWHEEL HOUSING SD310 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
178 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
150114-00202
|
[1] |
HOUSING,FLYWHEEL
|
|
| 10. |
06.08092-2406
|
[1] |
SCREW;PLUG M18X1.5
|
|
| 11. |
06.56190-0713
|
[1] |
RING;SEAL
|
|
| 2. |
65.01903A0178
|
[1] |
GASKET;FLYWHEEL HOUSING
|
|
| 3. |
65.96002-0003
|
[1] |
PLUG;RUBBER
|
|
| 4. |
06.06176-8309
|
[1] |
BOLT,STUD
|
|
| 5. |
06.16731-2109
|
[1] |
WASHER;SPRING A12
|
|
| 6. |
06.11063-9216
|
[1] |
NUT;HEX. M12X1.5
|
|
| 7. |
06.01943-3319
|
[9] |
BOLT ASS`Y M12X1.5X40
|
|
| 8. |
65.91710-0016
|
[2] |
RING;STOPPER
|
|
| 9. |
65.01510-0037
|
[1] |
SEAL;OIL REAR
|
|
