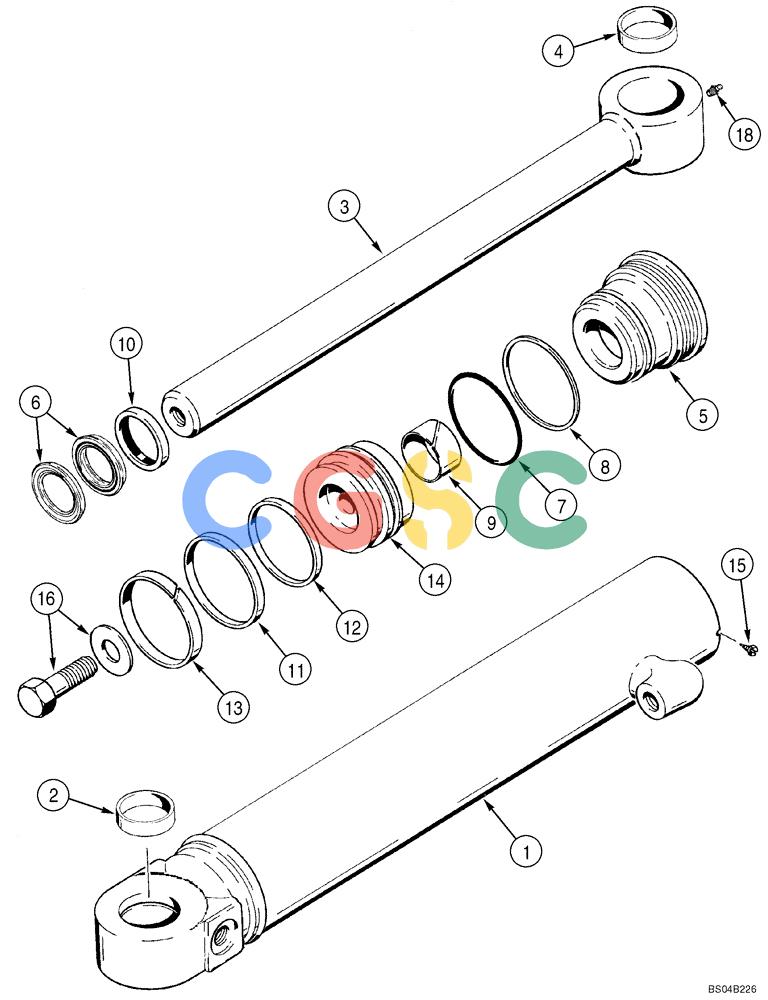

| . . | 86981867 | [2] | CYLINDER ASSY.,Double Acting, 44.4mm Rod, 394.5mm Stroke | BUR89 ID x 395 mm Stroke; Lift; Incl. Ref 1 - 18 Superseded by part number: 87361535 |
| . . | 87361535R | [2] | REMAN-HYD CYLINDER | BURDC85 (8/04), Reman For New P/N 86981867 |
| . . | 87361535C | [1] | CORE-HYD CYLINDER | BURReturn Number |
| 1. | 405297A1 | [1] | TUBE | BURIncl. Ref 2 |
| 2. | D40243 | [2] | BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L | CAS1-3/4 x 2-1/4 x 3/4 |
| 3. | 405299A1 | [1] | PISTON ROD,44.4mm OD x 585.6mm L | BUR45 mm (1-3/4 in) dia; Incl. Ref 4 |
| 5. | 355529A1 | [1] | GLAND | CAS |
| . . | 1543266C1 | [1] | SEAL KIT | IHIncl. Ref 6 - 13 |
| 6. | NSS | [1] | NOT SERVICED SEPARATELY | CONKit, Seal; Order 1543266C1 |
| 7. | 238-5235 | [1] | O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro | CAS Superseded by part number: 87421144 |
| 8. | D38858 | [1] | BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk | CAS |
| 9. | G102425 | [1] | BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk | CAS |
| 10. | D95143 | [1] | WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk | CAS |
| 11. | G102286 | [1] | SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk | CAS |
| 12. | G100710 | [1] | RING,Square, 5.28mm Thk x 75.31mm ID | CAS |
| 13. | G100711 | [1] | SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk | CAS |
| 14. | 1986982C1 | [1] | PISTON | IH |
| 15. | 86642312 | [1] | SELF-TAP SCREW,Hex, #8 - 32 x 3/8" | IMONo. 8 x 3/8 |
| 16. | 86982437 | [1] | BOLT,Sems, Hex, 1" - 14 x 2.50" | BUR |
| 18. | 219-1 | [1] | LUBE NIPPLE,1/8"-27 x .66 lg | CAS1/8 PT x 21/32 Superseded by part number: 80710 |
